Hasselblad 2000FC - Page 3

2000FC
21
2t_)
1.
2.
t
J.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
t4.
15.
16.
17.
18.
19.
20.
2t.
22.
23.
24.
25.
Magazine
release
catch
Folding crank for
film
advance
and shutter cocking
Magazine designation
Film
indicator
Film
winding crank
Film
plane
marking
Frame
counter window
Film
advance
indicator
window
Shutter
cocking indicator window
Strap lug
Pre-release latch
Mirror
program
settings
Mirror
program
disc
Shutter release
button
Cable release
socket
External
bayonet accessory
mount
Internal
bayonet accessory mount
Exposure value
scale
Exposure value
index
(red)
Button
for cross-coupling of
shutter
and diaphragm
Focusing ring
Distance
scale
Depth-of-field
scale
Aperture
ring
with aperture scale
Shutter
speed
ring
with shutter
speed scale

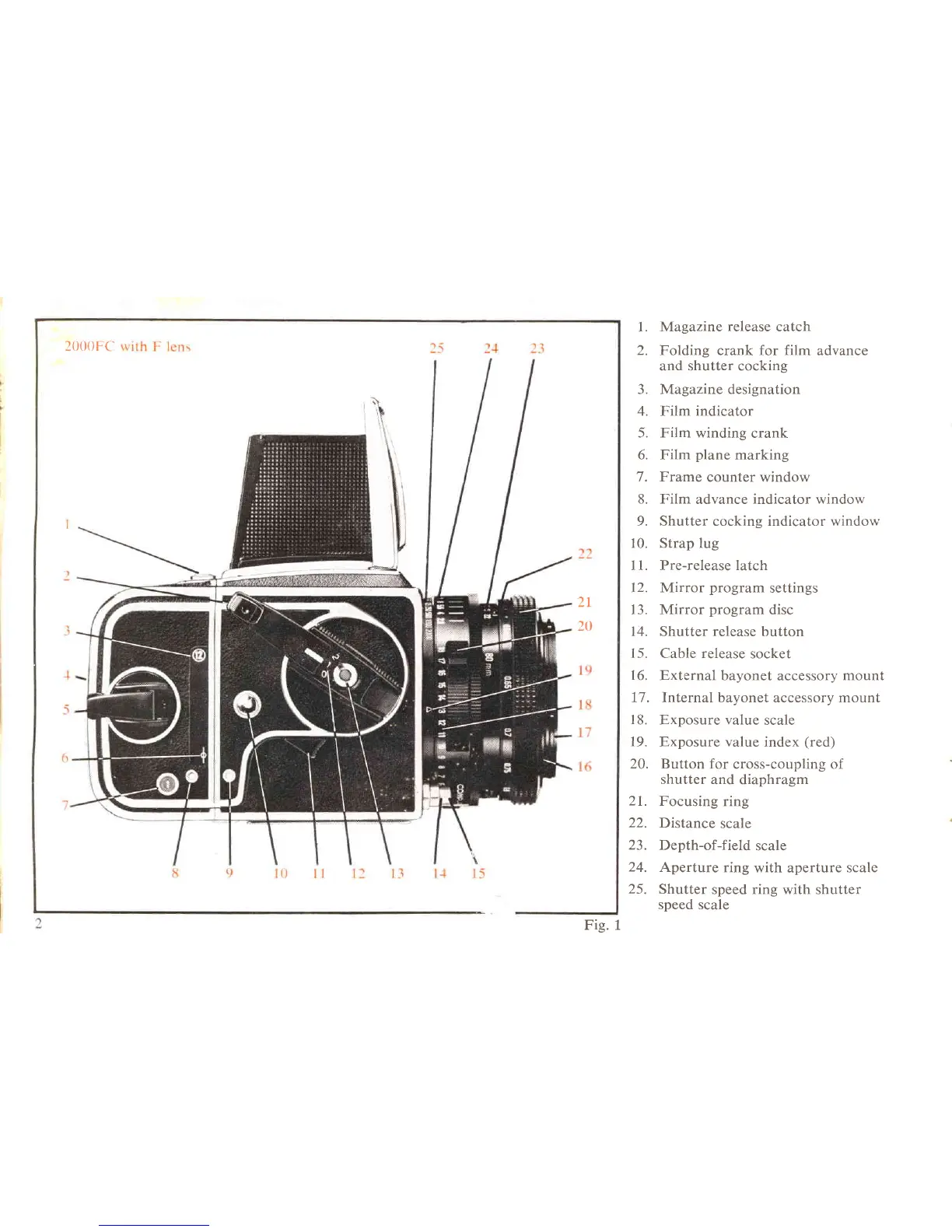

Fig. 1
