Hasselblad SWC/M - Page 6

л 4 U
F he
14.
15
16.
. Catch for focusing
hood and fine-focus-
ing magnifier
Fine-focusing
magnifier
Focusing hood
Focusing ring
Central index
Depth-of-field scale
Button for cross-
coupling of shutter
speed and aperture
rings
. Exposure value
scale
Exposure value
index
. Distance scale (feet
and meters)
. External and internal
accessory mounts
. Threaded cable
release socket
Shutter release
Time exposure lock
Knob for film ad-
vance and shutter
cocking

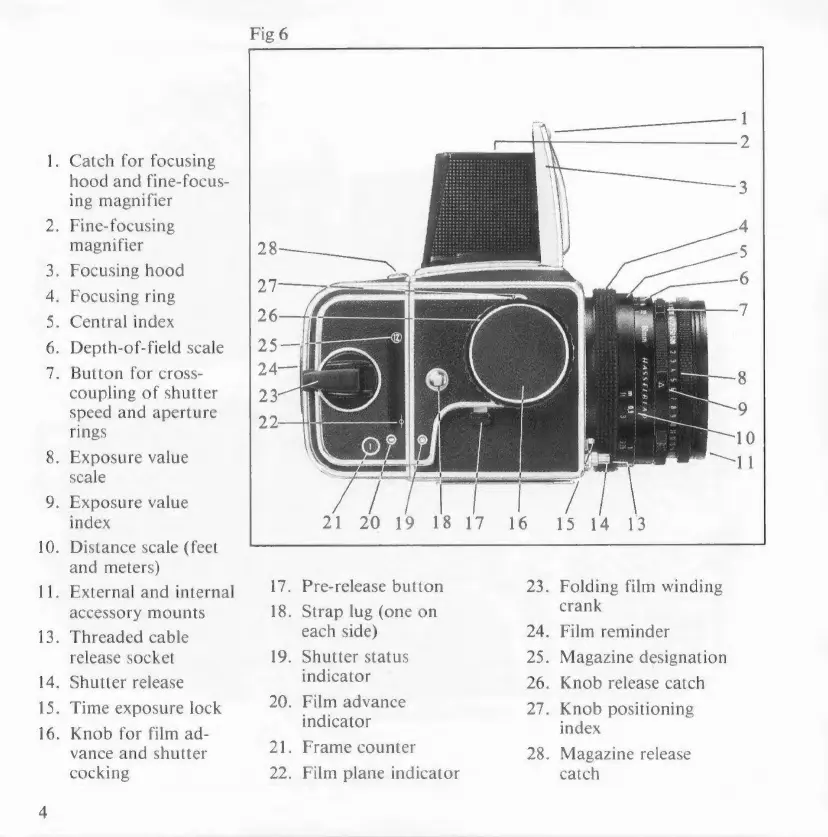

Fig 6
17.
18.
20.
Zt.
22.
Pre-release button
Strap lug (one on
each side)
. Shutter status
indicator
Film advance
indicator
Frame counter
Film plane indicator
24.
25:
26.
27.
28.
. Folding film winding
crank
Film reminder
Magazine designation
Knob release catch
Knob positioning
index
Magazine release
catch
