Hasselblad X1D II 50C User Manual

X1D II 50C USER GUIDE www.hasselblad.com
132
PHOCUS
Contents

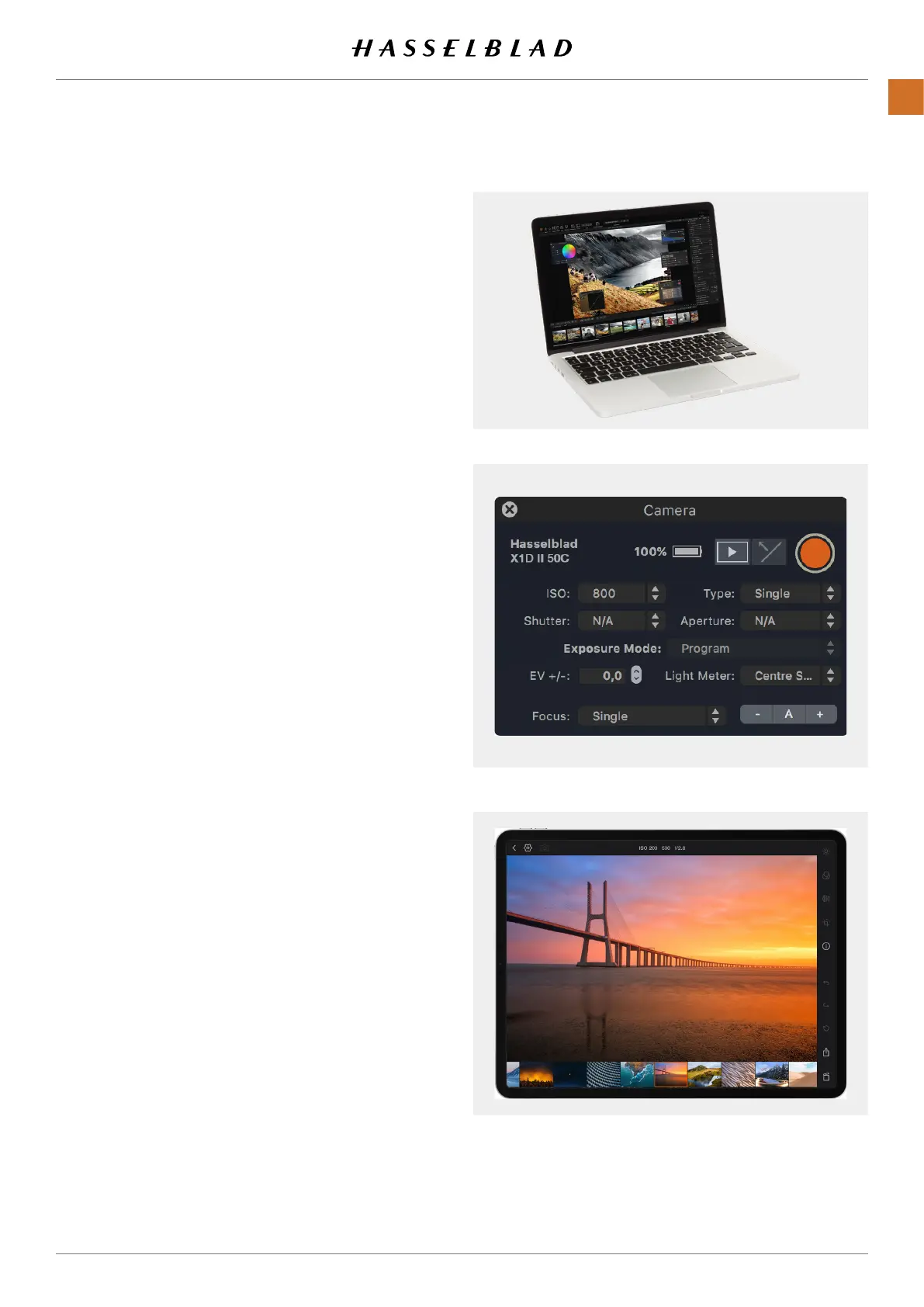

6.2 CONNECT TO A COMPUTER
1 Connect a USB 3 cable to the USB port on the computer.
2 Open the hinged cover on the camera.
3 Connect the USB 3 cable to the USB port on the camera.
When initiating a shot from Phocus, the Computer sends a
signal to the X1D II Camera, which triggers the shutter (and
strobe/ash, if any). The Camera then sends the capture over
the USB connection to the Computer, where it is displayed
on the Computer Screen and saved as a 16-bit 3F le in the
currently selected folder on the Computer hard disk.
Note!
When connected to a computer, the following applies:
● The destination medium and location are controlled
from Phocus.
● All exposure settings, including ISO, aperture and
exposure time, are controlled from Phocus if you
choose to expose from Phocus. In addition extra tools
such as Live Video, remote focus control are available.
See Phocus user manual for full description.
Note!
Make sure the Tethering Mode is set to Mac/PC when con-
necting to a computer. See more on page 107.
6.3 CONNECT TO AN IPAD PRO
Tethered shooting via a USB cable, is available with iPad Pro
equipped with a USB-C port or when using a Lightning to USB
3 adapter. A USB-C to Lightning cable will also work, but will
only give USB 2 speed.
Connect a USB-C to C cable from the camera to the iPad and
start the Phocus Mobile 2 App. See more on the next page.
Note!
Make sure the Tethering Mode is set to iOS when connecting
to an iPad. See more on page 107.

Hasselblad X1D II 50C Specifications

General

Megapixel	50 MP
Camera type	MILC Body
Sensor type	CMOS
Image sensor size	- \
Image formats supported	JPEG, RAW
Maximum image resolution	8272 x 6200 pixels
Image sensor size (W x H)	43.8 x 32.9 mm
Still image resolution(s)	-
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector	USB Type-C
Headphone outputs	1
Optical zoom	- x
Shooting modes	Auto, Manual
Self-timer delay	- s
Product color	Black
Battery voltage	7.27 V
Battery capacity	3400 mAh
Battery recharge time	2 h
Magnification	0.87 x
Viewfinder type	Electronic
Viewfinder resolution	3690000 pixels
Display diagonal	3.6 \
Display resolution (numeric)	2360000 pixels
Memory slots	2
Compatible memory cards	SD
Operating temperature (T-T)	-10 - 45 °C
Maximum video resolution	- pixels
Flash range (wide)	- m
Fastest camera shutter speed	1/10000 s
Slowest camera shutter speed	4080 s
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600
Light exposure modes	Auto
ISO sensitivity (max)	25600
ISO sensitivity (min)	100
Focus adjustment	Auto/Manual

Weight and Dimensions

Depth	70 mm
Width	148 mm
Height	97 mm
Weight	650 g
Weight (including battery)	766 g
