Hasselblad X1D II 50C - Parts, Components, Buttons and Controls

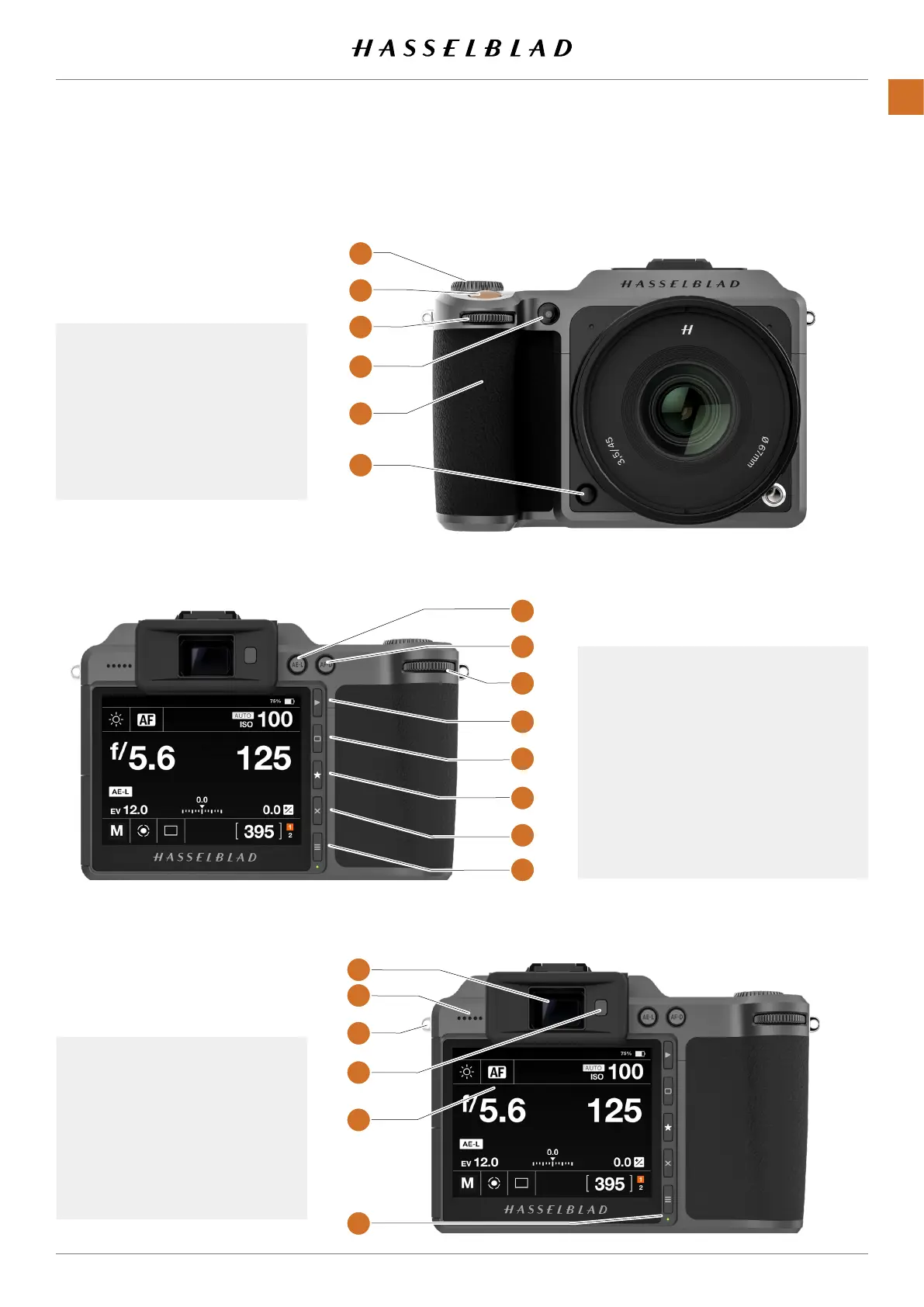

1 Mode Dial
2 Shutter Release Button
3 Front Scroll Wheel
4 AF Illuminator LED
5 Camera Grip
6 Stop Down Button
7 AE Lock Button
8 AF Drive Button
9 Rear Scroll Wheel
10 Browse Button
11 Rectangle Button
12 Star Button
13 Cross Button/Delete Image
14 Menu Button
15 Electronic Viewnder EVF
16 Speaker
17 Strap Lug
18 Eye Sensor
19 Touch Display
20 Status LED
4.1 PARTS, COMPONENTS, BUTTONS
AND CONTROLS
All parts listed in this Chapter, are described in
detail in other specic sections.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
