Hasselblad X1D II 50C User Manual

FIXED EXPOSURE COMPENSATION SETTING
Exposure compensation can be set separately for Flash and
automatic exposure by using the following method.

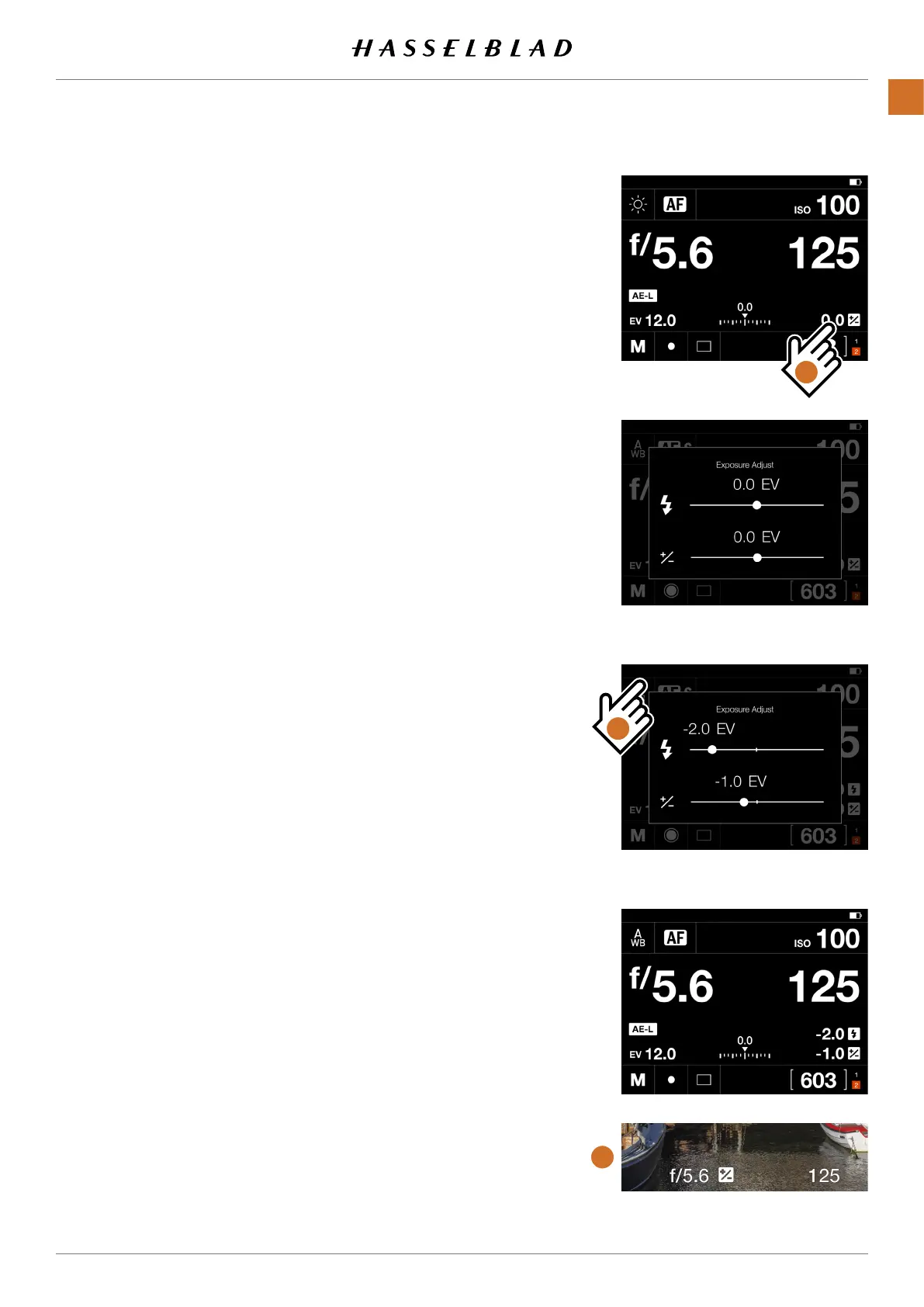

1 Tap the Exposure Adjust setting on the Control Screen (A) .
2 Slide the white dot to the left or right to set the desired
value for Flash Exposure compensation (top slider) and
Fixed Exposure compensation (bottom slider).
Tapping the line to the left or right of the dot, will increase
or decrease the value with the value set in Main Menu >
Camera Settings > Exposure > Increment Step Size >
exposure Adjust .
Alternatively, you can use the Front Scroll Wheel to set
Flash compensation and the Rear Scroll Wheel to set Fixed
compensation.
The setting is saved as soon as it is changed.
3 Tap outside the rectangle (B) to return to Control Screen
or Half-Press the Shutter Release to return to Live View.
4 The amount of compensation is shown on the Control
Screen (C) . In Live View, a ‘±’ symbol (D) is displayed
between the aperture and shutter speed setting as
conrmation of the setting.
Note!
In the adjustment setting screen you can double-tap the ash
or the ‘±’ icon to reset the setting to 0.
Tapping the line to the left or right of the dot, will increase
or decrease the value with the value set in Main Menu >
Camera Settings > Exposure > Increment Step Size >
exposure Adjust .
C
A
B
D
X1D II 50C USER GUIDE www.hasselblad.com
60
FUNCTIONS
Contents

Hasselblad X1D II 50C Specifications

General

Megapixel	50 MP
Camera type	MILC Body
Sensor type	CMOS
Image sensor size	- \
Image formats supported	JPEG, RAW
Maximum image resolution	8272 x 6200 pixels
Image sensor size (W x H)	43.8 x 32.9 mm
Still image resolution(s)	-
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector	USB Type-C
Headphone outputs	1
Optical zoom	- x
Shooting modes	Auto, Manual
Self-timer delay	- s
Product color	Black
Battery voltage	7.27 V
Battery capacity	3400 mAh
Battery recharge time	2 h
Magnification	0.87 x
Viewfinder type	Electronic
Viewfinder resolution	3690000 pixels
Display diagonal	3.6 \
Display resolution (numeric)	2360000 pixels
Memory slots	2
Compatible memory cards	SD
Operating temperature (T-T)	-10 - 45 °C
Maximum video resolution	- pixels
Flash range (wide)	- m
Fastest camera shutter speed	1/10000 s
Slowest camera shutter speed	4080 s
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600
Light exposure modes	Auto
ISO sensitivity (max)	25600
ISO sensitivity (min)	100
Focus adjustment	Auto/Manual

Weight and Dimensions

Depth	70 mm
Width	148 mm
Height	97 mm
Weight	650 g
Weight (including battery)	766 g
