OPERATION
ENGLISH

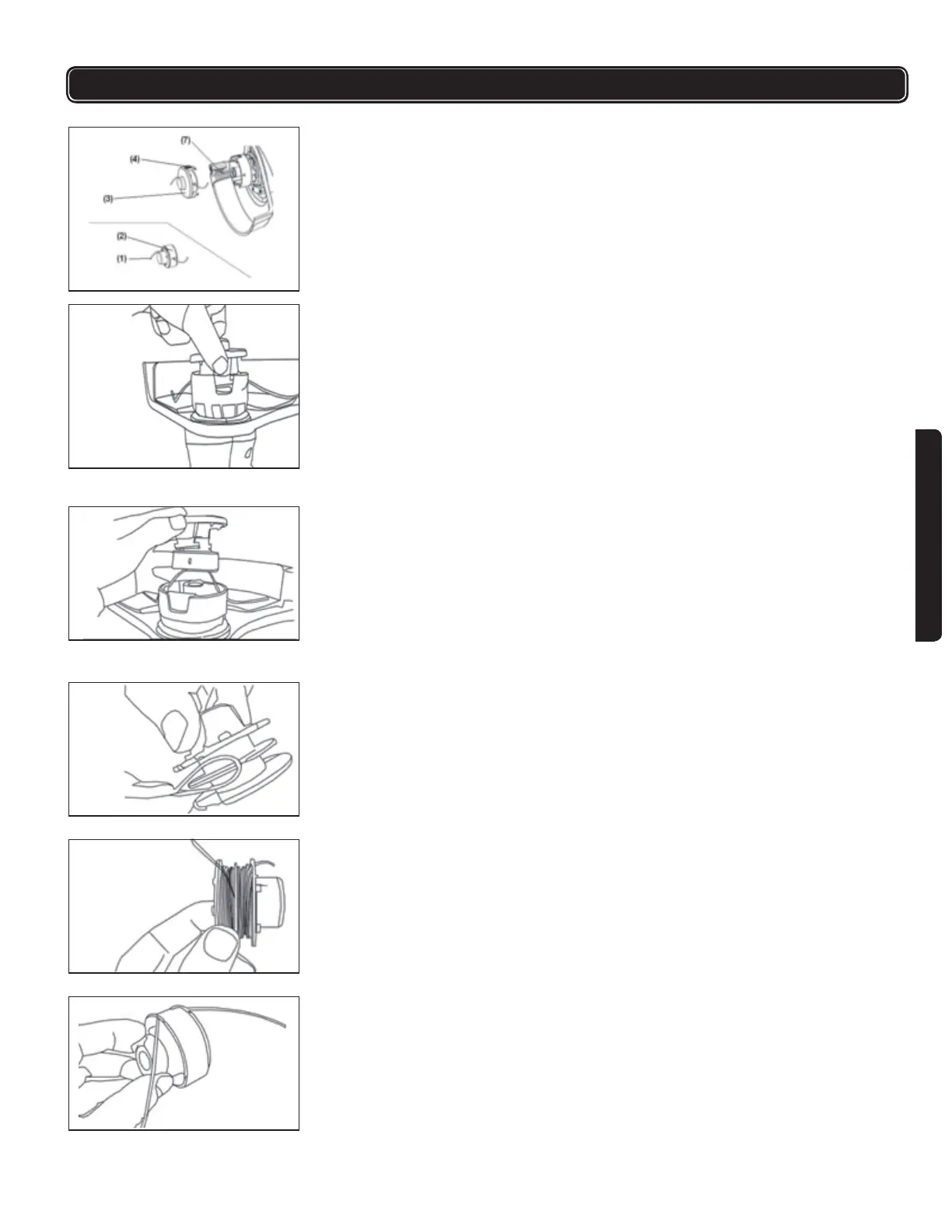

FIRST How to disassemble the spool.
1) Disconnect the mains plug.
2) Press together both locking devices (4) at the spool cover (3) and remove
spool cover. (Fig.7&Fig.8)
SECOND How to wind the string
Hook the string in the groove as shown in Fig.10.
3) Remove the spool from the spool cover. (Fig.9)
4) Remove the spring.
5) Clean off dirt and grass residues.
2) Wind the string as shown in Fig.11 and hook the two ends in the side
grooves.
Replacing the spool kit
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
3) Firmly place the cover on the spool and pull them approx.9 cm out of the
spool.(Fig. 12)
Fig.12
