●Assembly Instruction：

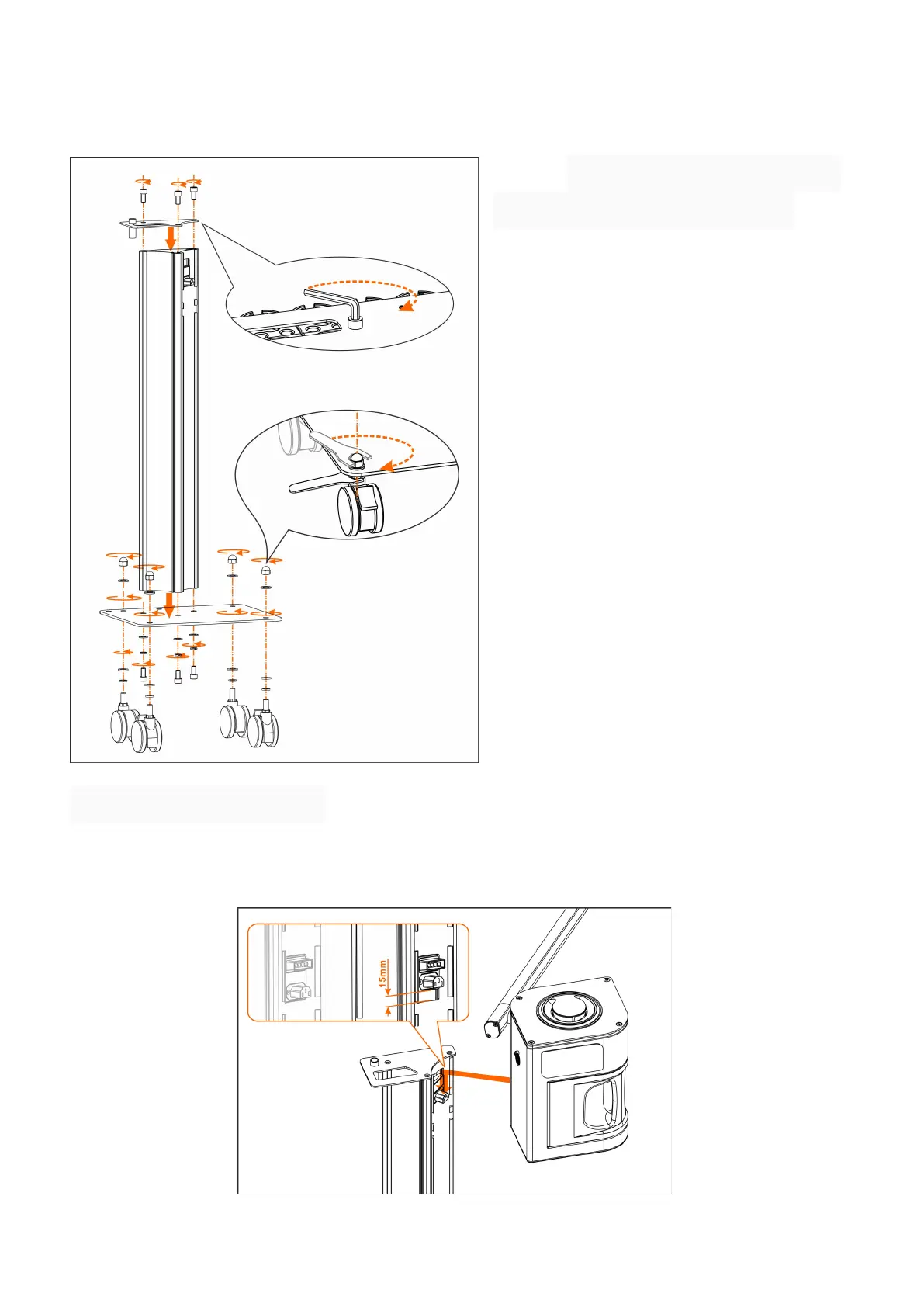

Step 1: install the floor and
roof components (attachment)
1.install the casters to the Standing: First,
put the casters on φ12 spring washer, φ12
flat gasket, then insert into the base plate
(pay attention to that the belt brake casters
installed in the front and put a φ12 flat
gasket after tighten M12 cover up . While
tighten the cover up, please use 17#
open-end spanner to fix the nut at the
bottom of the floor, then tighten the cover
up with 19# open-end spanner.
2.Install aluminum pillar: fit the Aluminum
pillar to the three holds on bottom plate,
then connect with M10×20 M10×20 Hex
cylinder head machine silk, then tighten up
screws with M10 allen wrench.
3.Installthe roof (magnifying glass)
components: fit the Aluminum pillar to the
three holes on bottom plate, then connect
with M10×20 M10×20 Hex cylinder head
machine silk, then tighten up screws with
M10 allen wrench.
Step 2: install the sprayer
At first you should put the host machine horizontally to the hole of the column until the column
falling down 15 mm naturally.
