3.

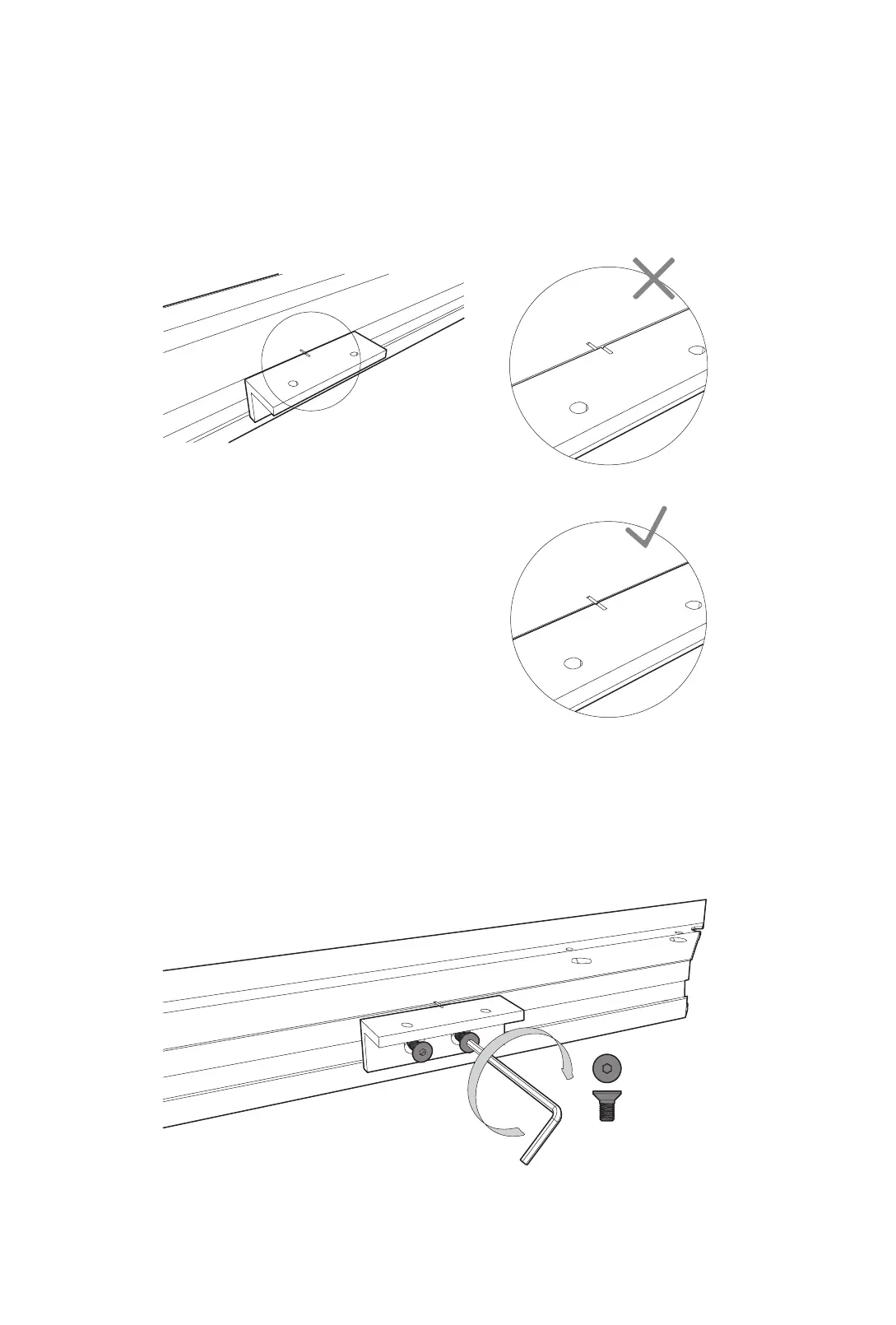

ALIGNING SUPPORT BAR CONNECTOR
Locate the outer mark on the short frame profile. Align the support bar connector so that
the mark on it aligns with the mark on the frame profile. Repeat on the other short frame profile.
4.
MOUNTING SUPPORT BAR CONNECTORS
Using the supplied allen key screw in the two support bar screws
mounting the support bar connector to the connector.
x 8
SUPPORT BAR SCREWS
Locate the bag of screws
named Support Bar Screws
