12•18 Wiring diagrams

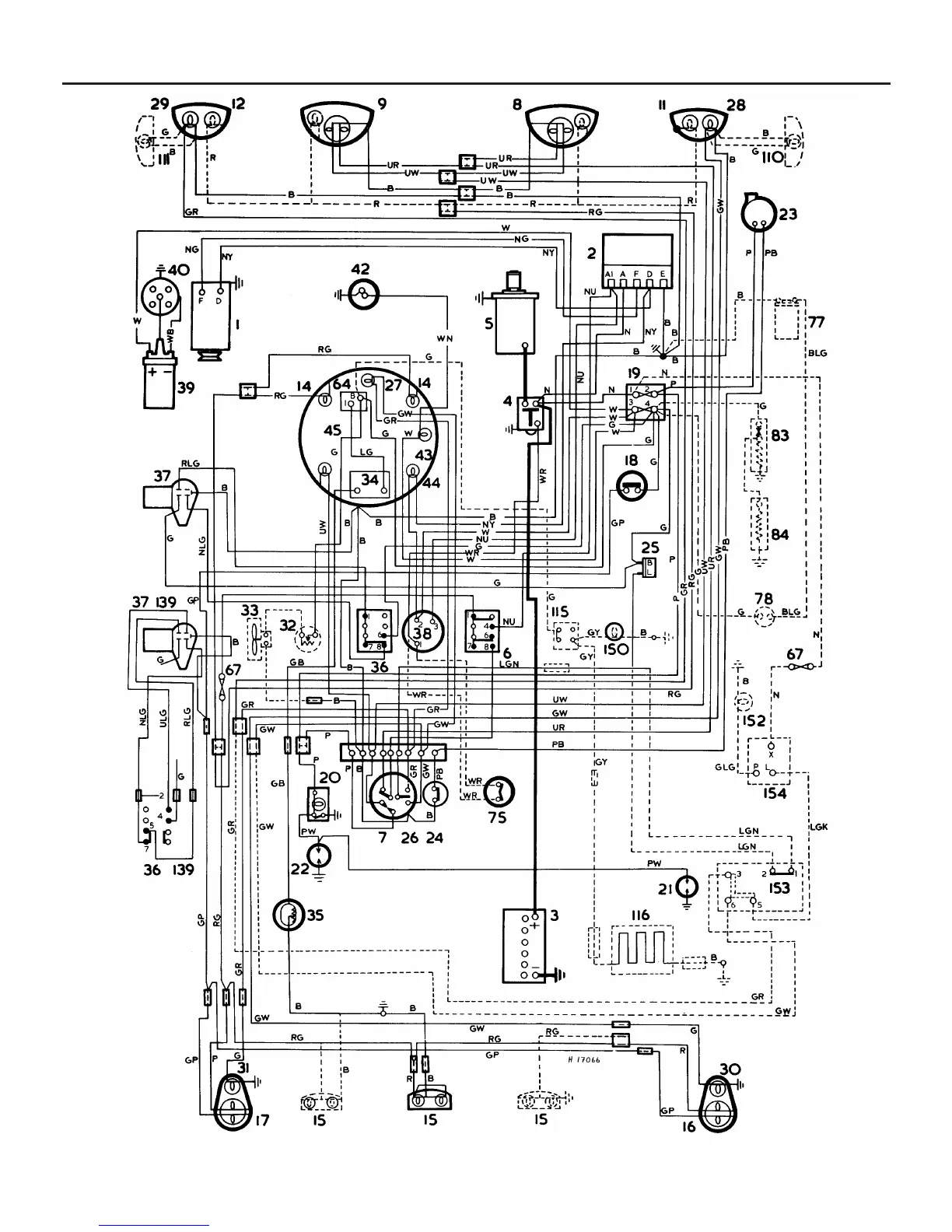

Wiring diagram 1 - Mini 850 De Luxe Saloon, Van and Pick-up (with dynamo and toggle type switches)
