Wiring diagrams 12•25
12

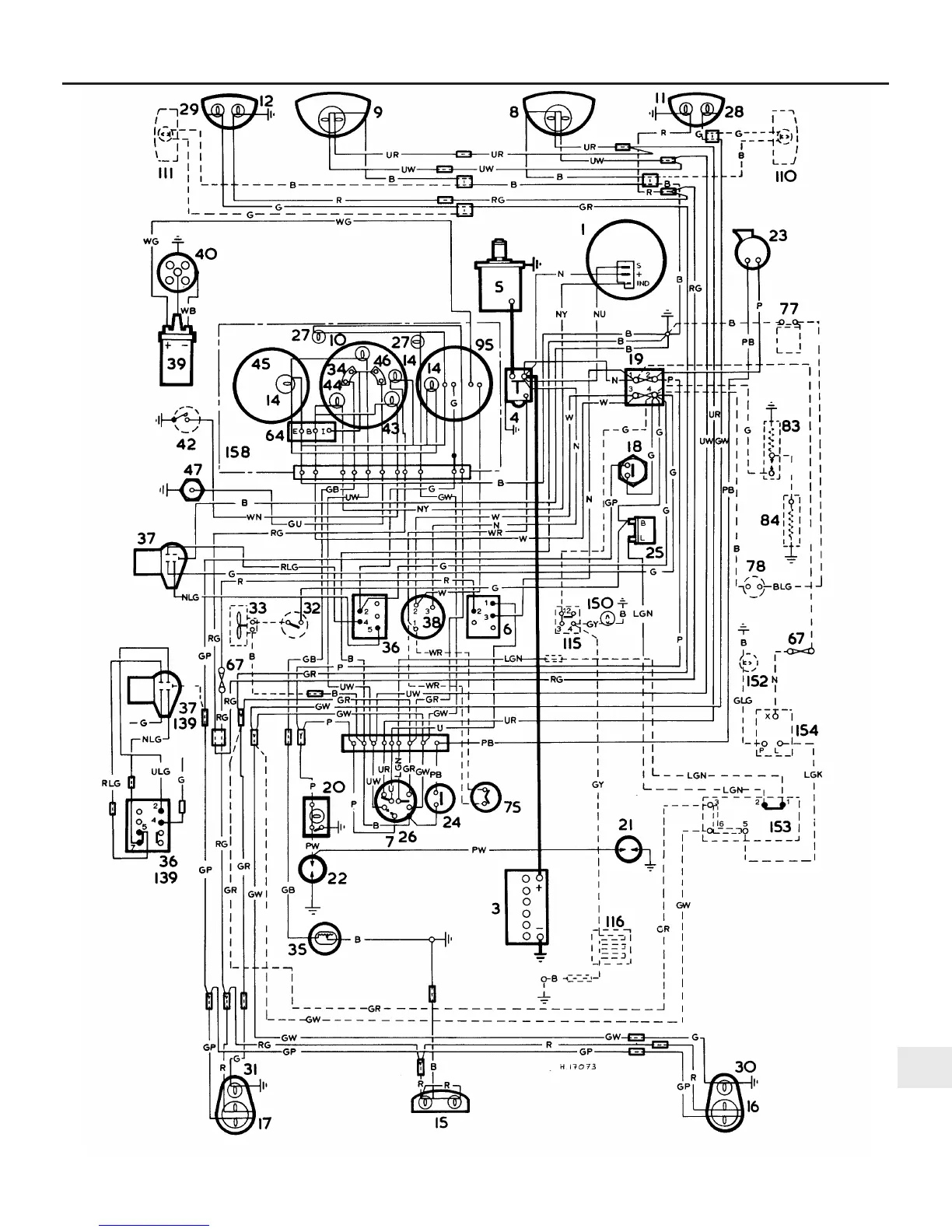

Wiring diagram 8 - Mini 1275 GT (with alternator and rocker type switches) - pre 1976
