Maintenance - component location 1•5
1

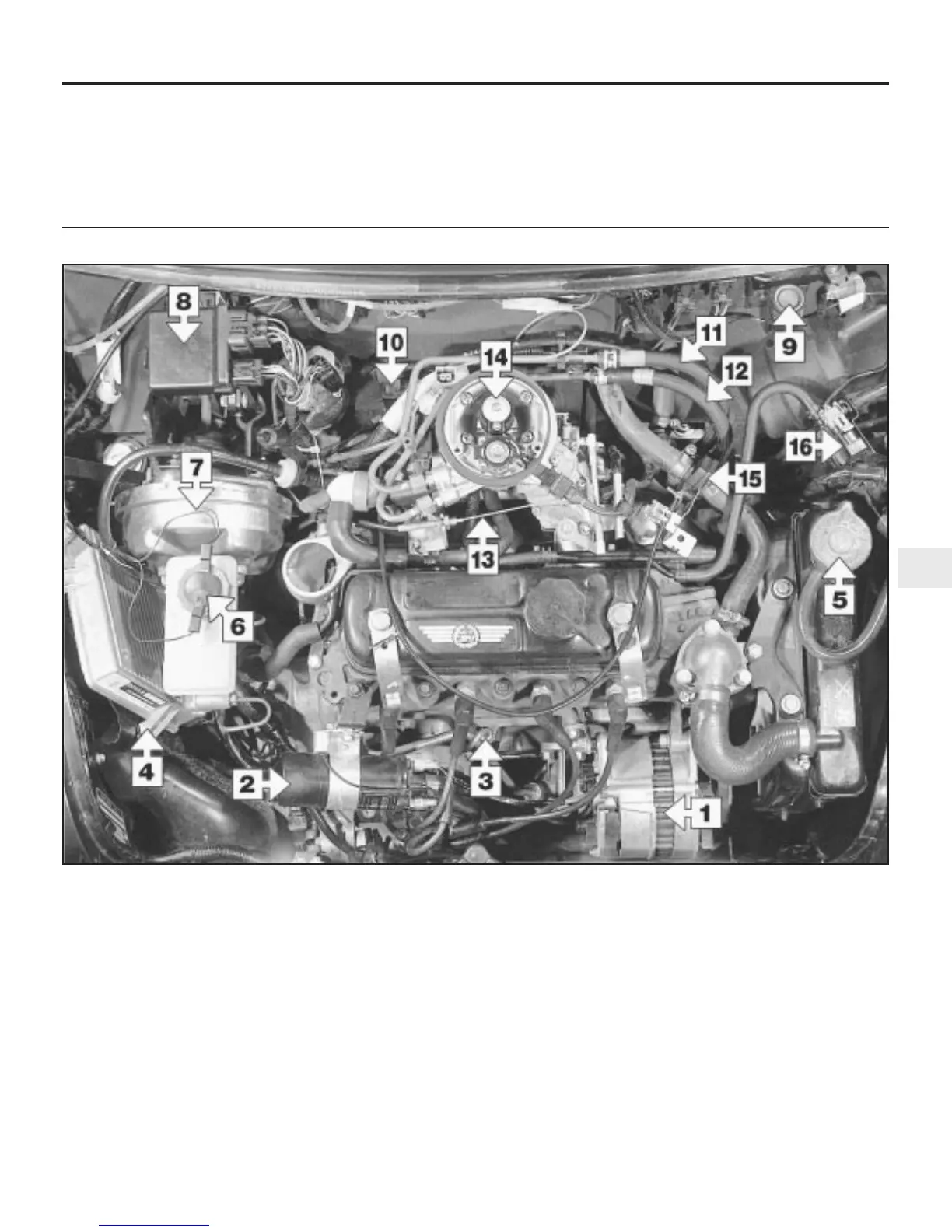

Underbonnet view of a 1275 cc Mini Cooper Saloon
(air cleaner removed for clarity)
1 Alternator
2 Ignition coil
3 Engine/transmission oil dipstick
4 Engine management (fuel
injection/ignition) ECU
5 Radiator pressure cap
6 Brake fluid reservoir cap
7 Brake system vacuum servo unit
8 Relay module
9 Fuel cut-off inertia switch
10 Manifold absolute pressure (MAP)
sensor fuel trap
11 Fuel return pipe
12 Fuel feed pipe
13 Accelerator cable
14 Throttle body assembly
15 Heater coolant valve
16 Charcoal canister purge valve
