Fuel system - carburettor engines 4A•11
4A

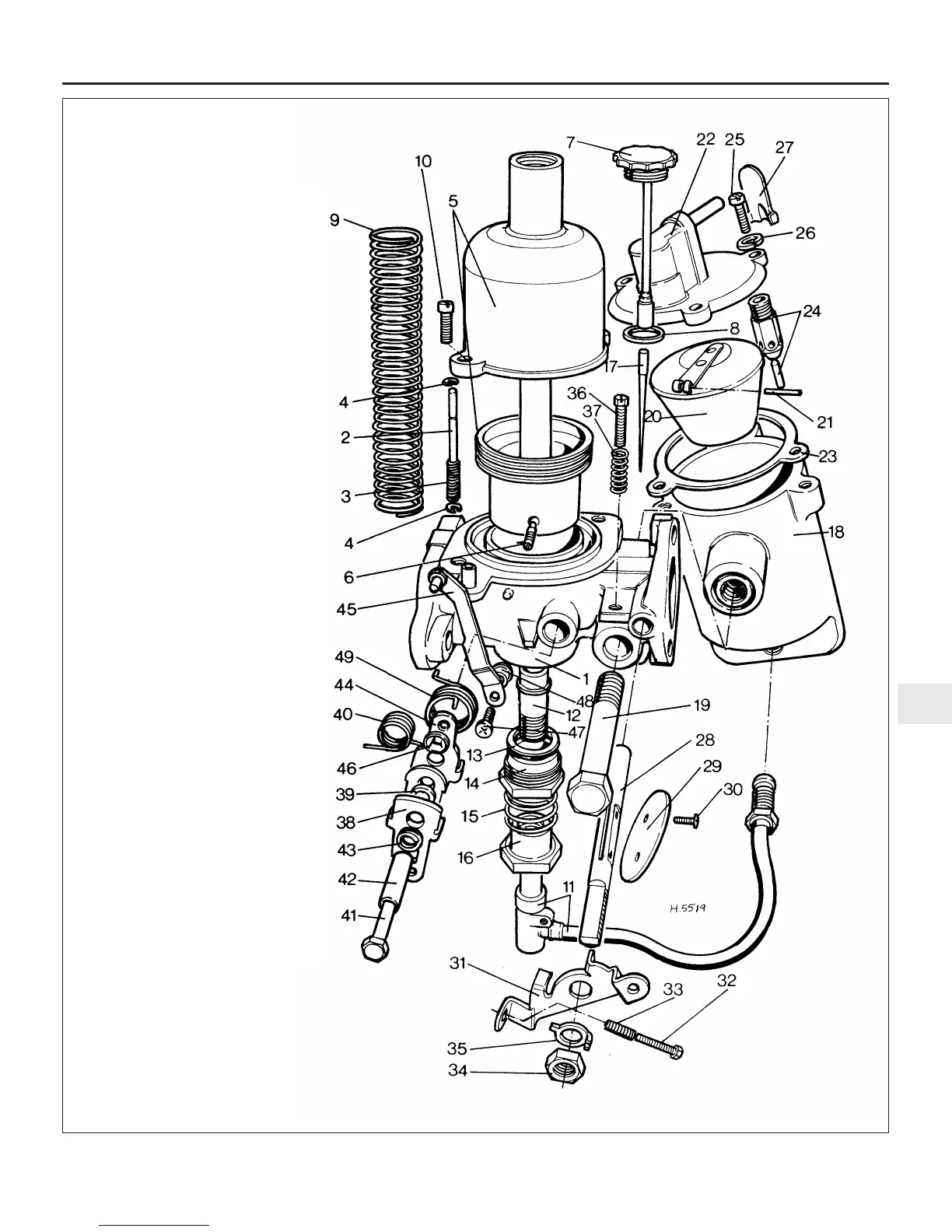

13.6a Exploded view of the
SU HS2 carburettor
1 Body
2 Piston lifting pin
3 Spring
4 Circlip
5 Dashpot and piston assembly
6 Needle locking screw
7 Piston damper assembly
8 Washer for damper cap
9 Piston spring
10 Screw
11 Jet assembly
12 Jet bearing
13 Washer
14 Locknut for jet bearing
15 Lock spring
16 Jet adjusting nut
17 Jet needle
18 Float chamber body
19 Bolt
20 Float and lever assembly
21 Lever hinge pin
22 Float chamber lid assembly
23 Gasket
24 Needle and seat assembly
25 Screw
26 Spring washer
27 Baffle
28 Throttle spindle
29 Throttle disc
30 Screw
31 Throttle lever
32 Fast idle adjusting screw
33 Spring for adjusting screw
34 Throttle spindle nut
35 Tab washer
36 Idle speed adjusting screw
37 Spring for adjusting screw
38 Cam lever
39 Washer
40 Cam lever spring
41 Cam lever pivot bolt
42 Pivot bolt tube
43 Spring washer
44 Pick-up lever assembly
45 Jet link
46 Jet link retaining clip
47 Jet link securing screw
48 Bush
49 Spring for pick-up lever
