Hayter R48 447F User Manual

DriveSystem
Maintenance
AdjustingtheSelf-propelDrive
Ifyourmowerdoesnotself-propelproperly,adjustthe
self-propeldrivecable.

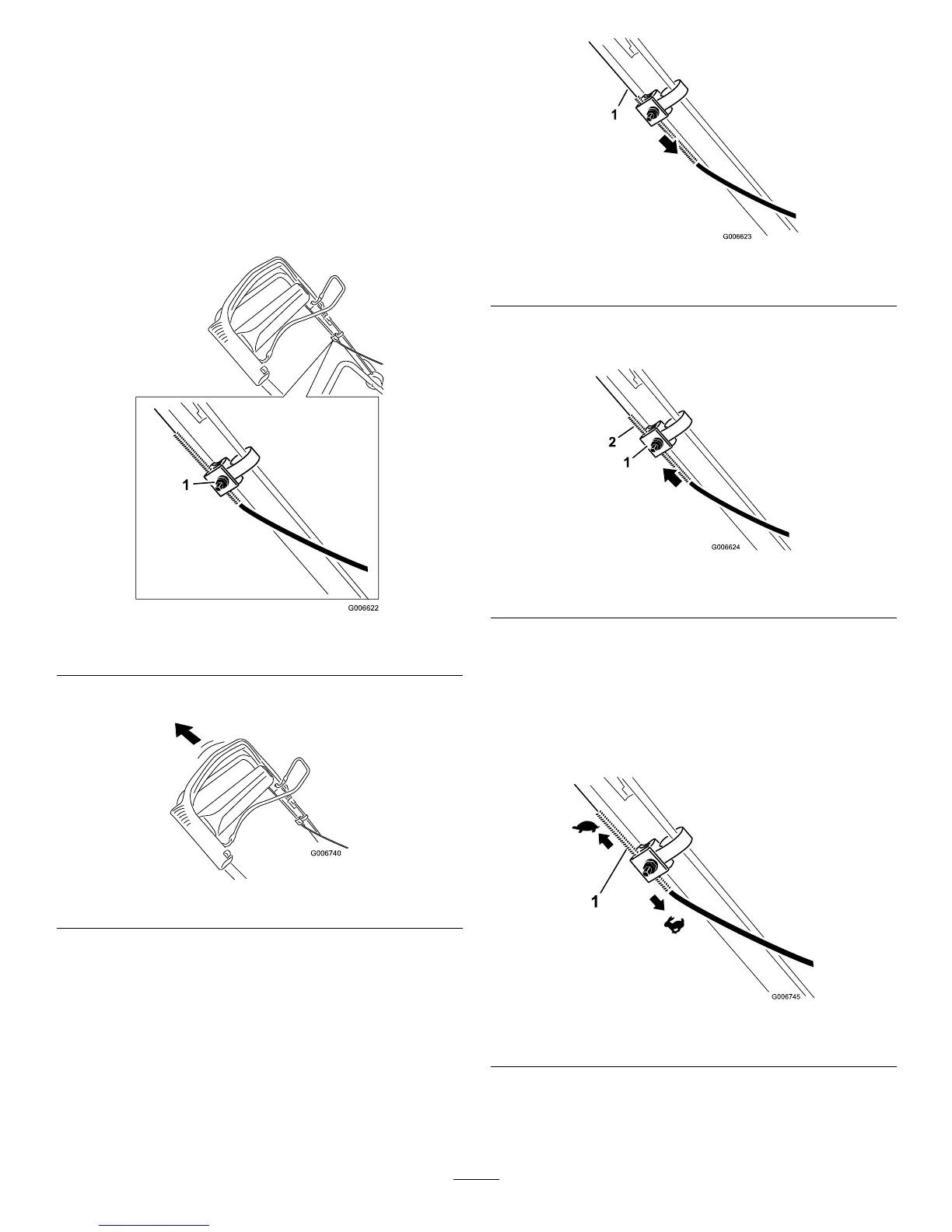

1.Loosenthenutonthecablemount(Figure25).
Figure25
1.Nutoncablemount
2.Pulltheupperhandlebackfullyrearward(Figure26).
Figure26
3.Pullthecablejacketdownwarduntilyouremovethe
slackintheexposedcable(Figure27).
Figure27
1.Exposedcable
4.Pushthecablejacketupward3/16inch(5mm)
(Figure28).
Figure28
1.Cablemount2.Cablejacket
Note:Youcanplacearuleragainsttheupperside
ofthecablemountandmeasurehowfartheupper
endofthecablejacketmoves.
Note:Movingthecablejacketupwarddecreases
thegroundspeed;movingthejacketdownward
increasesthegroundspeed(Figure29).
Figure29
1.Cablejacket
5.Tightenthenutrmly.
6.Startthemowerandchecktheadjustment;repeat
thisprocedureifnecessary.
16
