Install Junction Box or Junction Box Transformer
When using a wallmount low voltage transformer, a junction box should be installed to make the connection to the pool/spa light. If using more than
one light, an adequate amount of junction boxes must be installed. Alternatively, Hayward low voltage junction box transformer kits (LTBUY11H65) can
be used when in-line transformers are desired. Refer to page 9 for more information.

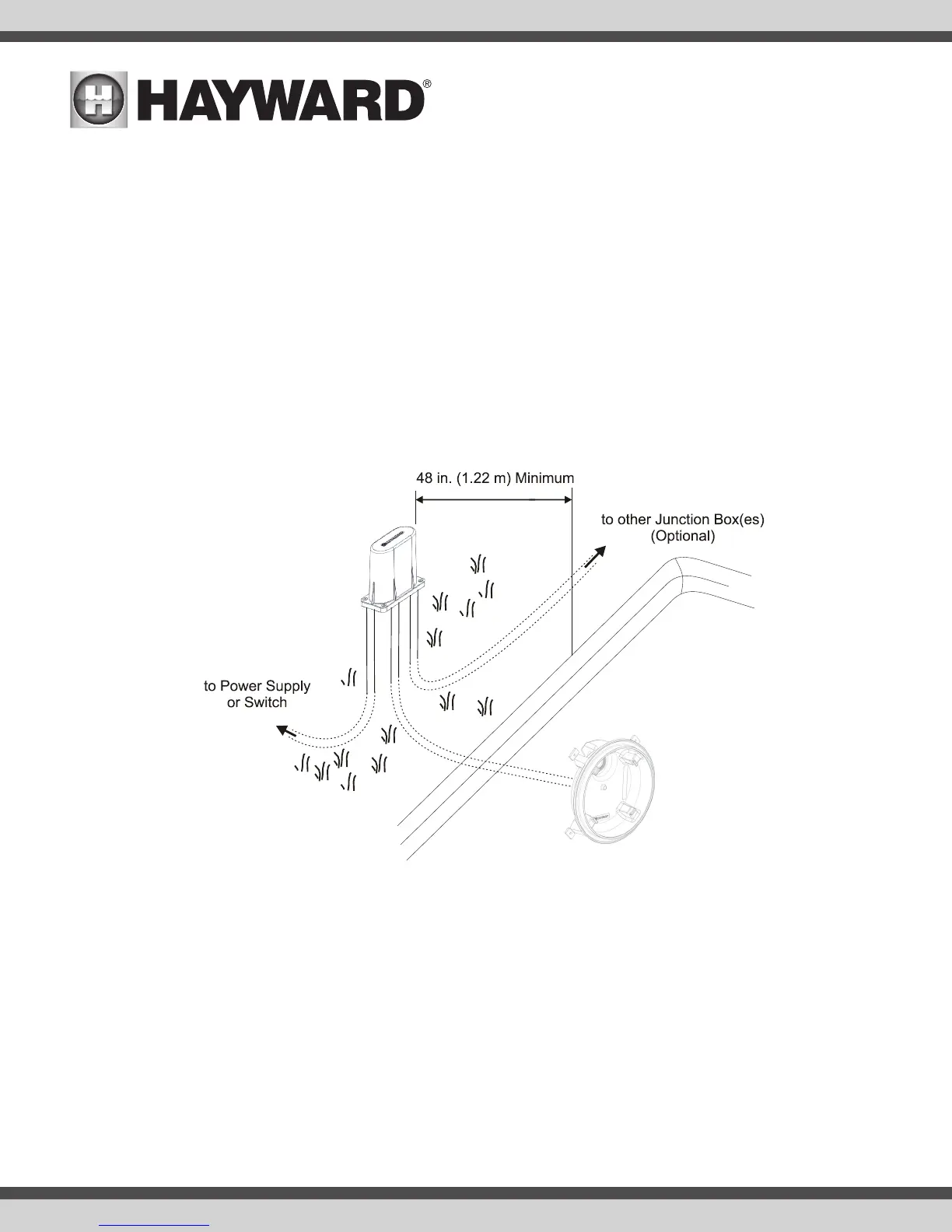

Junction boxes must be installed not less than 48 inches (1.22 m) from the edge of the pool or spa. Run conduit from the niche up to the junction box
such that the junction box is not less than 8 inches (20 cm) above the maximum pool or spa water level, or not less than 4 inches (10 cm) above the
ground, whichever is greater. Additional conduit should be run from the junction box to the power supply, switch panel, pool/spa controller, etc.
