HBM SomatXR CX23-R User Manual

5 SomatXR hardware
90 a4275-8.0 enHBM: public CX23-R and EX23-R
 Transducer MX1601B-R Wiring diagram
Current, 20 mA ● 110
†
Use ODU 14-pin to BNC adapter 1-KAB430-0.3.
All measuring channels are electrically isolated from one another and from the power.
When using transducer excitation, electrical isolation from the supply voltage of the
amplifier is rescinded.

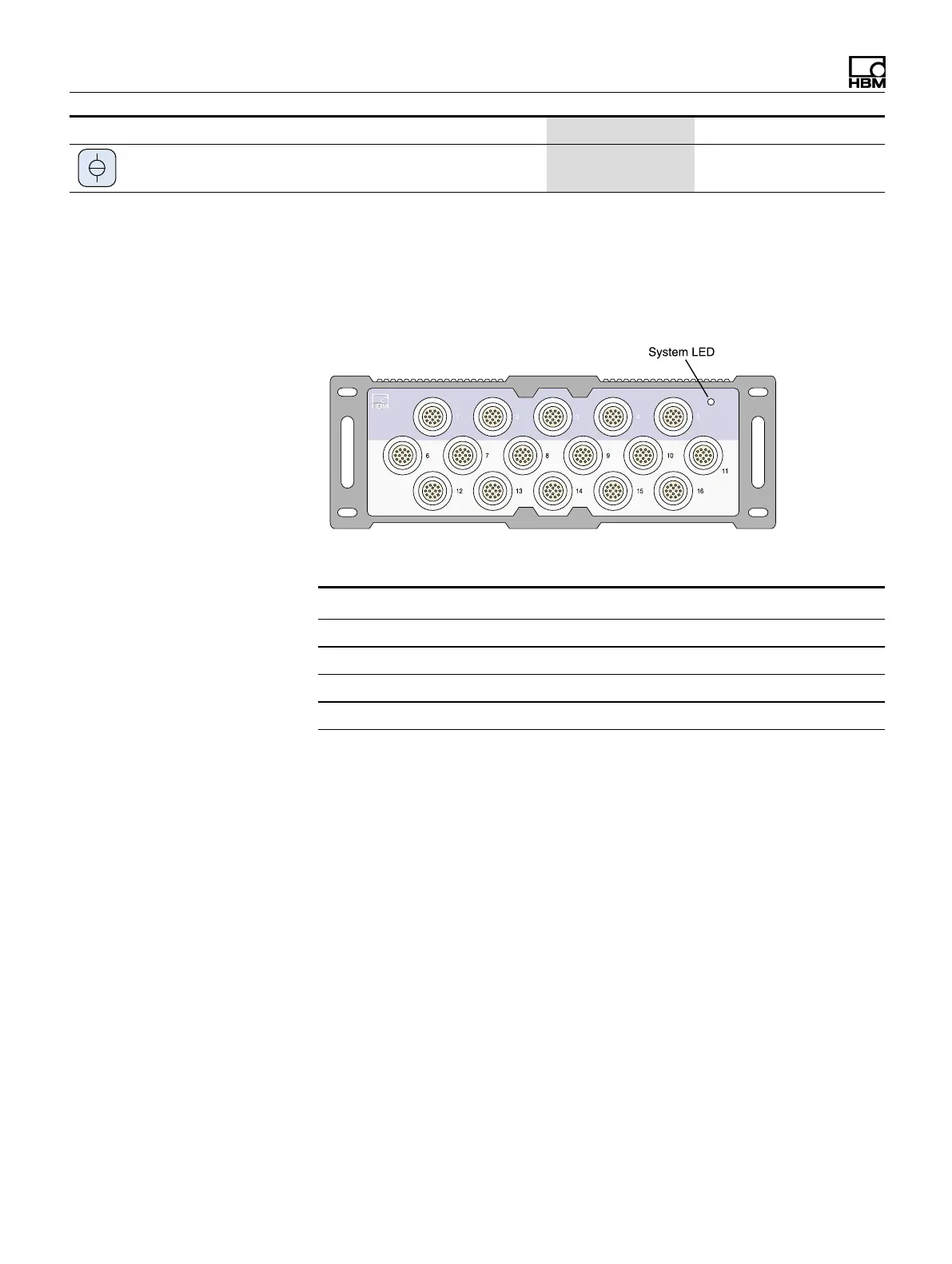

Status LED
The following table gives the descriptions for all LED states.
System LED Description
Green System is error free
Red System error
Orange System is not ready; boot procedure is running
Orange flashing System is not ready; download is active
MX1601B-R pin assignments
Connect sensors via the 14-pin ODU MINI-SNAP connectors.
