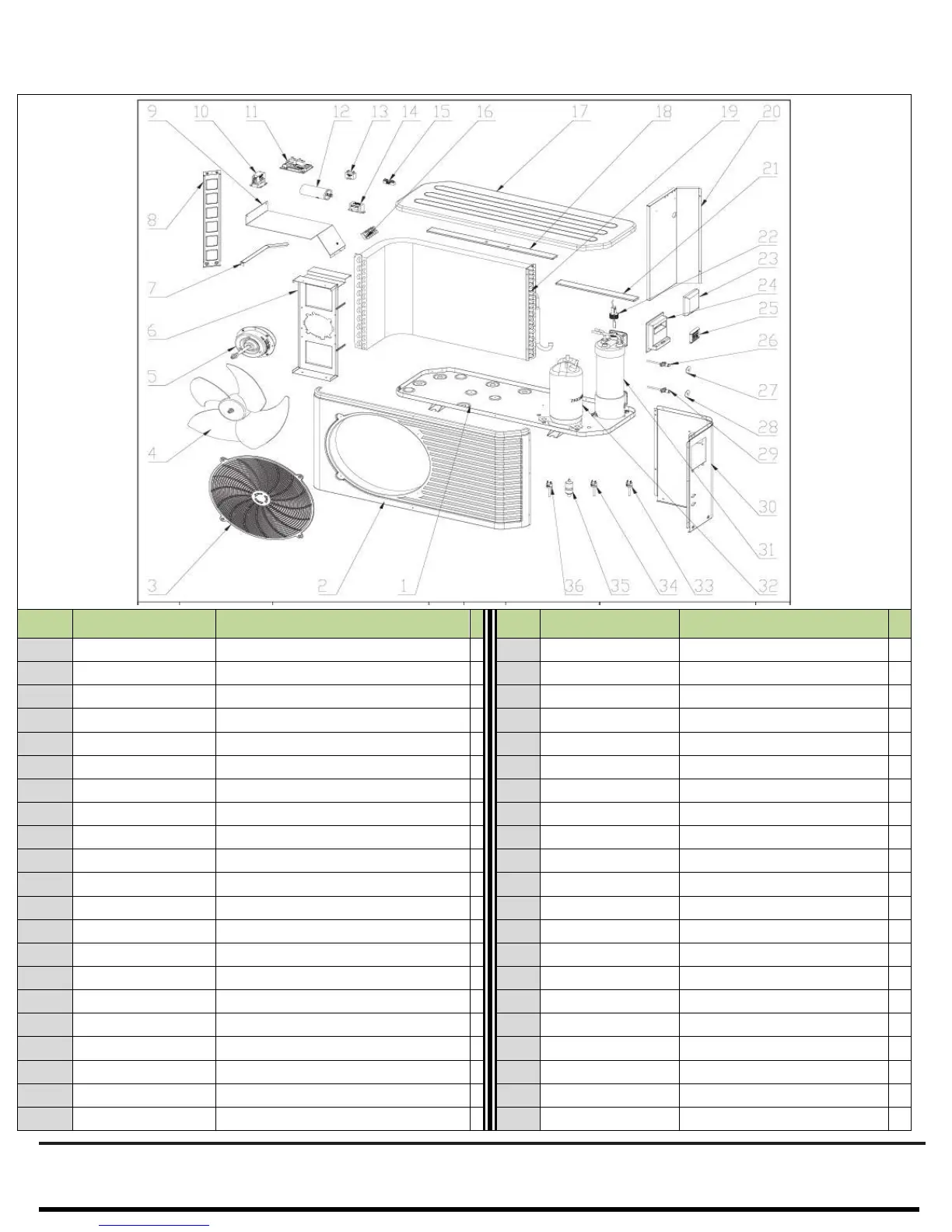

Appendix 3: Explosive view of the unit
MODEL : PASHW045-P
No.
Code
Parts name
No.
Code
Parts name
1
20000-110038
Compressor
22
2001-3906
Three-seat connector
2
20000-140353
Needle valve
23
2000-3510
Compressor capacitor
3
3500-1401
Liquid-gas separator
24
2000-3524
Compressor capacitor
4
2004-1445
Filter
25
32009-210118
Cover of electrical box
5
2000-3603
Pressure switch
26
95005-310145
Main controller
6
2001-3605
Pressure switch
27
20000-360007
AC contactor
7
20000-360059
Pressure switch
28
20000-360035
Start Relay
8
32010-210015
Chasis
29
2000-3509
Fan capacitor
9
32010-210017
Front pannel
-
30
20000-370006
Transformer
10
20000-220169
Fan protection net
31
32009-210117
Electrical box
11
20000-270004
Axial fan
32
20000-360005
Water flow switch
12
20000-330143
Axian fan motor
33
32010-120012
Titanium heat exchanger
13
32009-210204
Fan bracket
34
32009-120021
Fin heat exchanger
14
32010-210018
Left rear plate
15
32009-210202
Support plate
16
32009-210025
Support panel
17
32009-210205
Top cover
18
32009-210023
Middle separation panel
19
32010-210016
Right-side panel
20
95005-310188
Wire controller
21
2001-3909
Three-seat connector
