BC36C/BC36R INSTALLATION INSTRUCTIONS

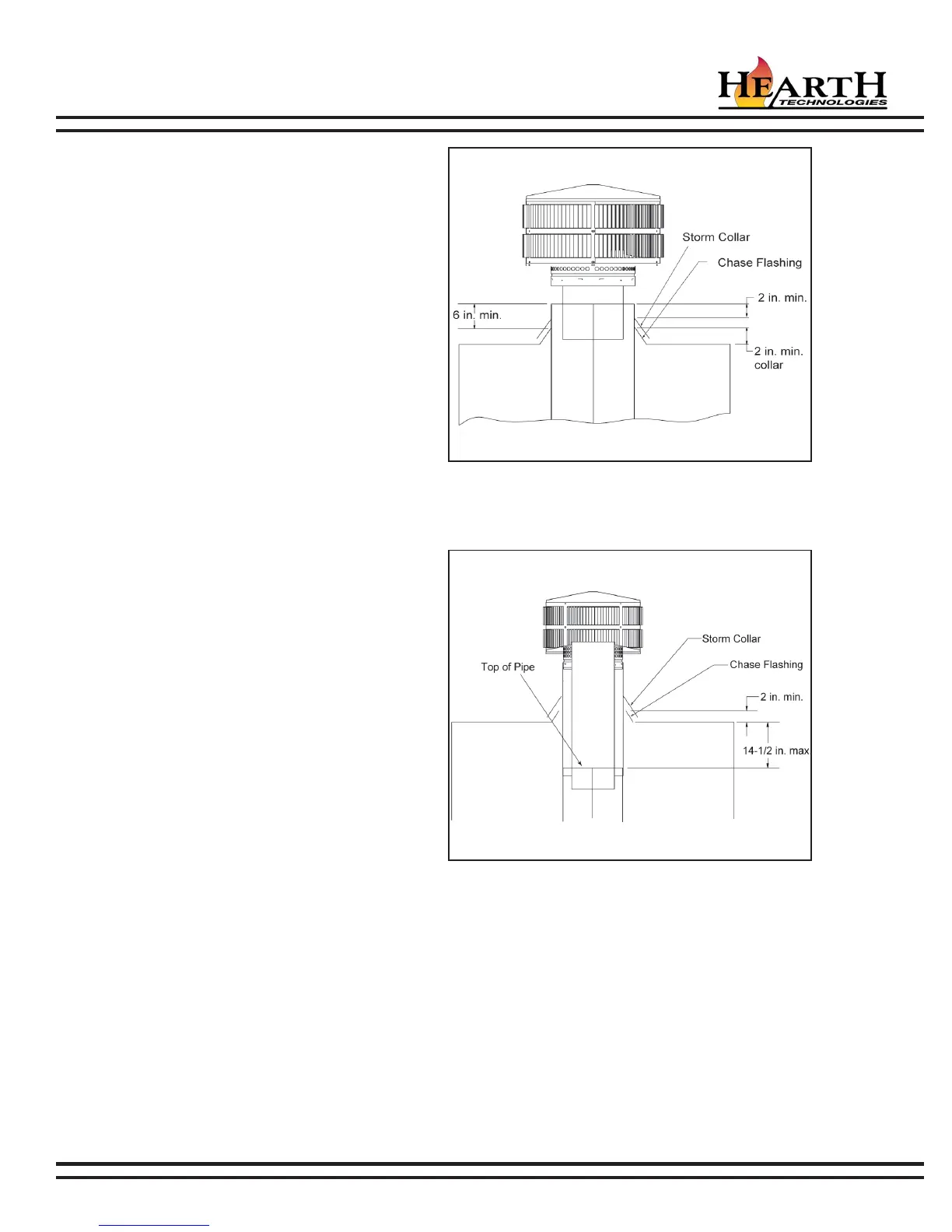

Figure 22 - Installing a TR344 Round Termination Cap
Figure 23 - Installing a TR342 Round
Telescoping Termination Cap
2. Chase Top
Construct a chase of desired materials maintaining a
minimum 2 in. air space around the chimney.
3. Termination Cap
a. Install the chimney sections up through the chase
enclosure. When using a TR344 round termination
cap, the uppermost top section of pipe must
extend 6 in. above the top of the chase collar to
allow installation of the storm collar and
termination cap. See Figure 22.
b. For installations utilizing a TR342 telescoping
round termination cap, the uppermost chimney
section must be below the top of the chase top,
but not more than 14-1/2 in. below the top of the
chase top flashing collar. See Figure 23.
