Service Parts
GO324-IPI-NG-HK, GO324-IPI-LP-HK
Beginning Manufacturing Date: May 2018
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Switch 01-1070
2
Pilot Assembly NG 07-1024
Pilot Assembly LP 07-1023
3 Control Module 593-595
Y
4 Battery Holder SRV593-594
Y
5
Valve - NG 593-500
Y
Valve - LP SRV593-501
Y
6 Valve Bracket MT-350-VC
7 Control Box MT-350-CBA
8 Control Box Mount MT-350-CBM
9 Pilot Bracket MT-350-PB3
10 Wire Harness SRV593-590
Y
11 Wiring Harness, Switch 16-1615
12 Battery Cover Log H-0586A
13
Damper Stop Assembly SRV500-SC
14 Connector FT-1-24
Lava Rock Qty 2 req SRVACC10
Mineral Wool Qty 2 req SRVACC12
Platinum Bright Embers Qty 2 req PBE-5
Sand NG Only SRVACC15
Vermiculite
Qty 1 req, NG
SRVACC11
Qty 2 req, LP
Installation Manual 4004-323
4/19

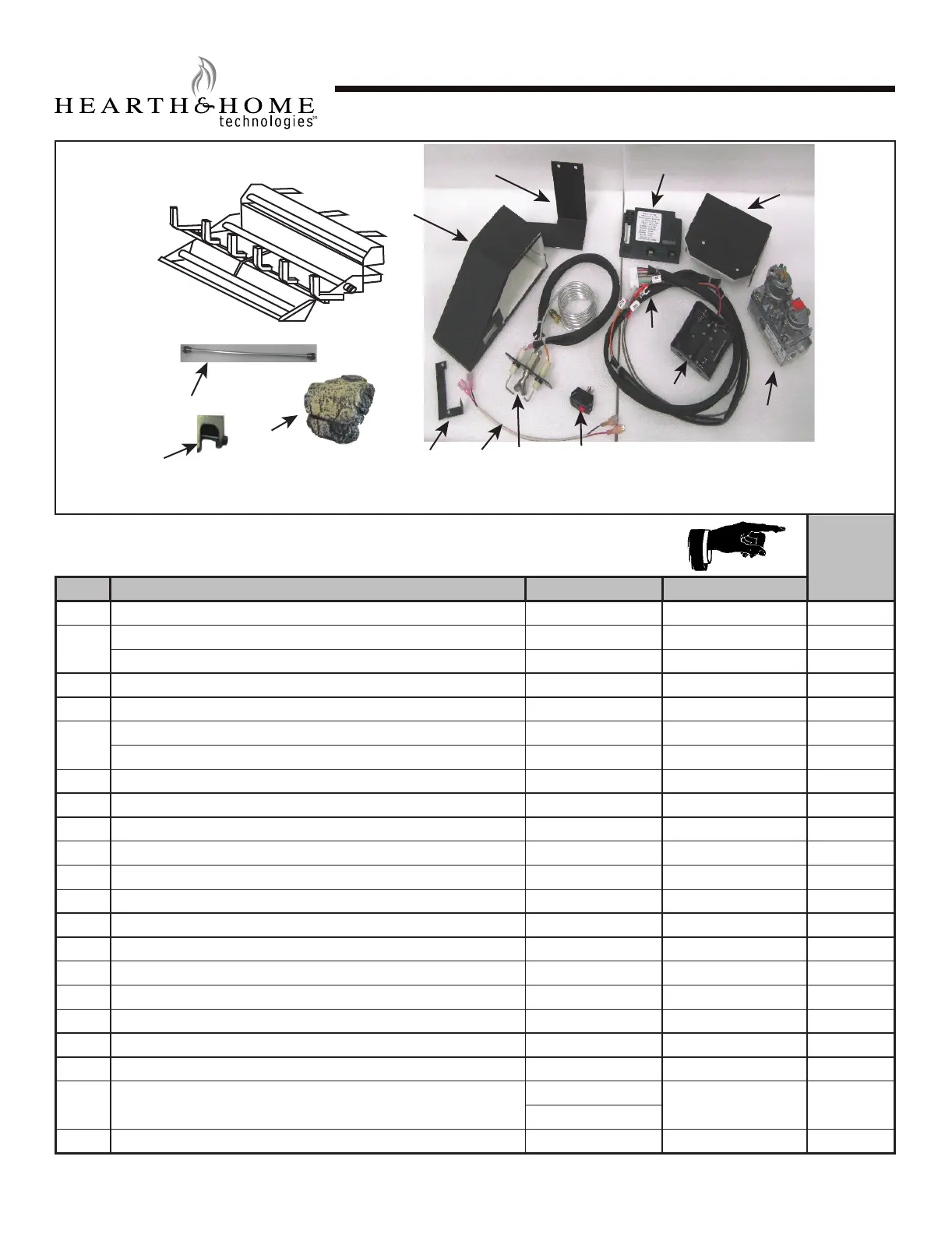

Grand Oak 24” 3 Tier Hearth Kit
1
2
3
4
5
6
9
7
8
10
13
12
11
14
