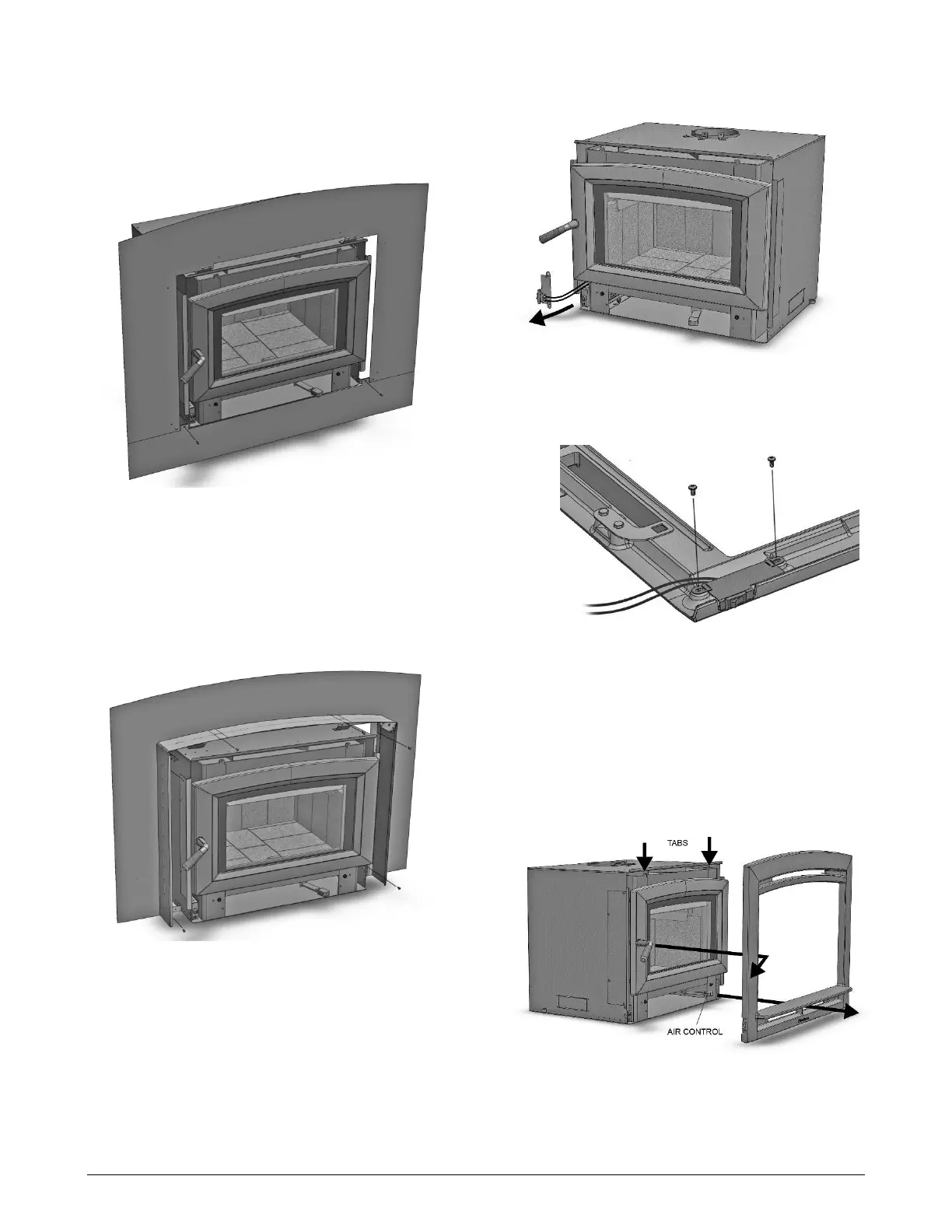

9. (Optional) Install the Lower Surround Panel
following the instruction included with that
optional accessory.
10. (Optional) Install the Surround Extension
following the instructions included with that
optional accessory. To install the surround
extension, the surround must be installed in
position 4” back from the front face of the insert.
The extension can also be as a 2” extension by
cutting the extension panels and installing the
surround 2” back from the front of the insert.
11. Install the blower switch plate on the front
casting:
a. Gently remove the blower switch
assembly from the lower left corner of
the insert. It is very important not to
disconnect the wires.
b. Attach the blower switch plate to the
lower rear left corner of the front
casting using the two screws in the
bosses.
12. Install the front casting following the procedure
from Step 2 in reverse order.
a. Carefully position the front casting on
the fireplace insert. Make sure the air
control handle passes through the
opening in the front casting below the
ash lip. It may be easiest to open the
door slightly to avoid hitting the door
handle.
b. Be careful not to pinch the blower
switch wires.
