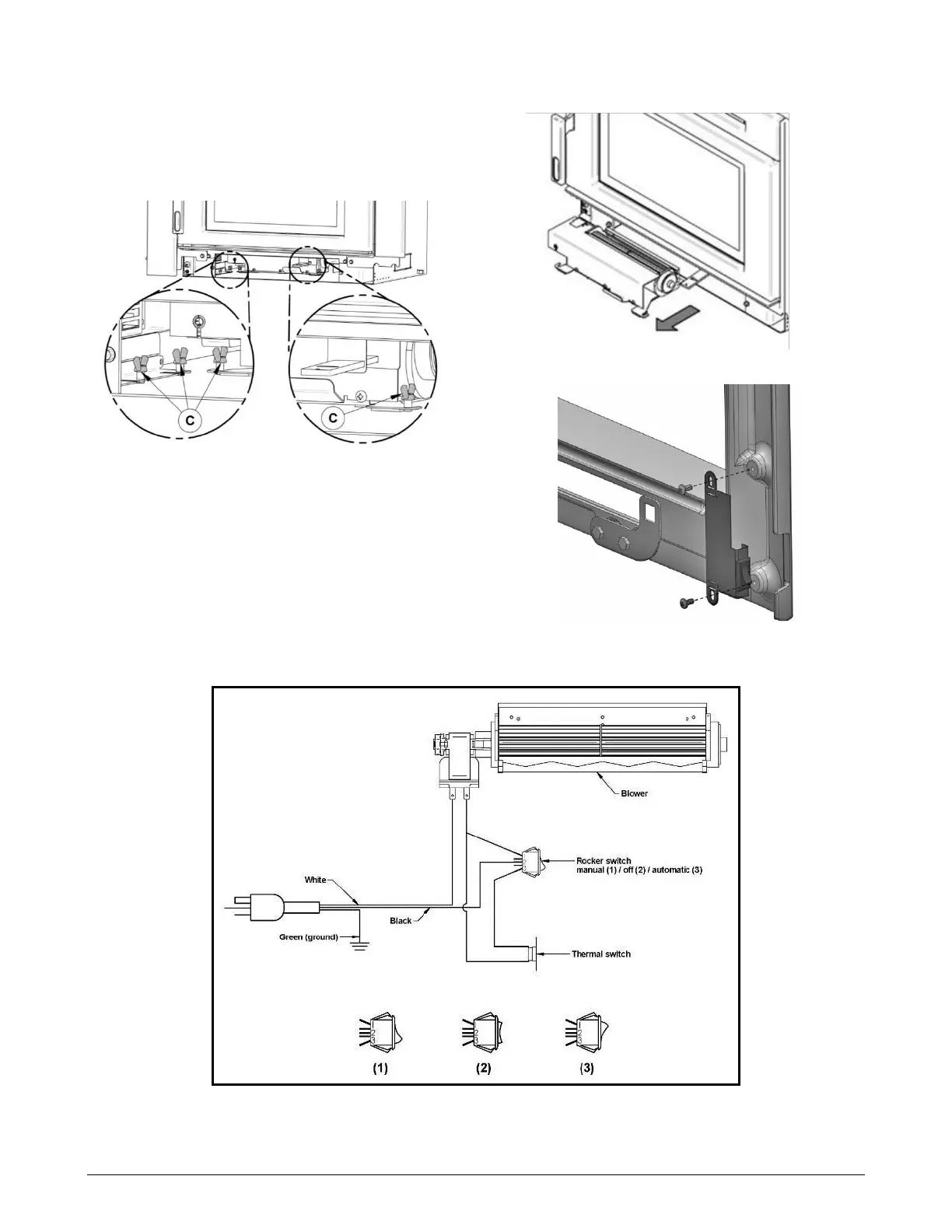

3. Slightly loosen the 4 wing nut (C) then pull the
blower assembly towards you to remove it from
the convection air jacket. Make sure to
disconnect the wiring as it is accessible.
Figure 30 – Loosen Blower Assembly
4. Carefully remove the blower motor assembly
from the fireplace insert. Be sure to disconnect
the electrical switch from the cast iron frame
once removed, being careful not to pull on the
wires or terminals. The switch plate is removed
by way of two fasteners on the inside-left of the
iron frame as shown.
