Wave Reader Spin – Tilt Bracket Mount
MFP-052-6-010
Wave Reader Spin – Tilt Bracket Mount

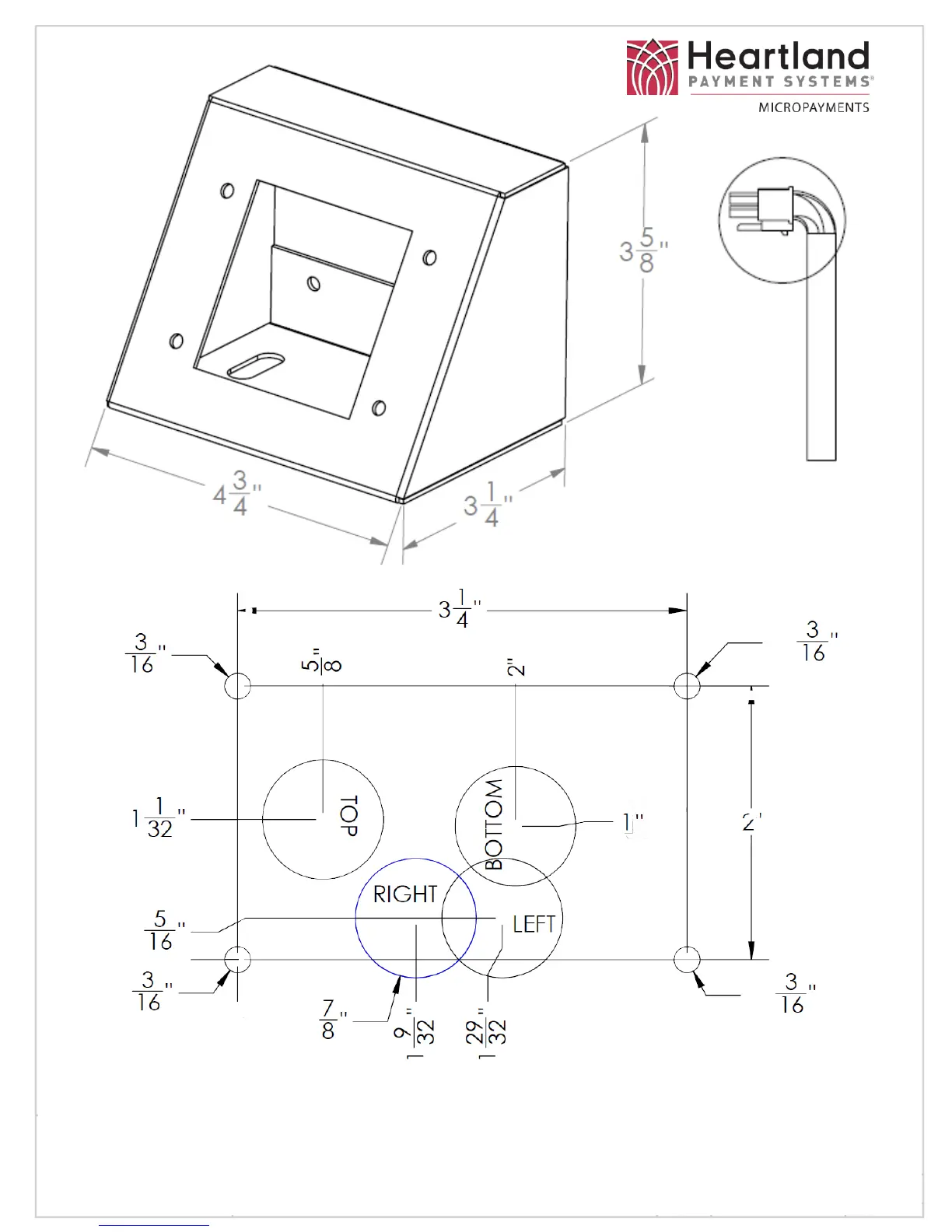

Only one of the 7/8” Cable Access holes will need to be drilled-out. Choose the appropriate
one for the Card-Swipe position you are using. For instance, if the Card-Swipe is to be on the
RIGHT, only drill the location marked ‘RIGHT’.
DOC-WR-SPIN-INST
