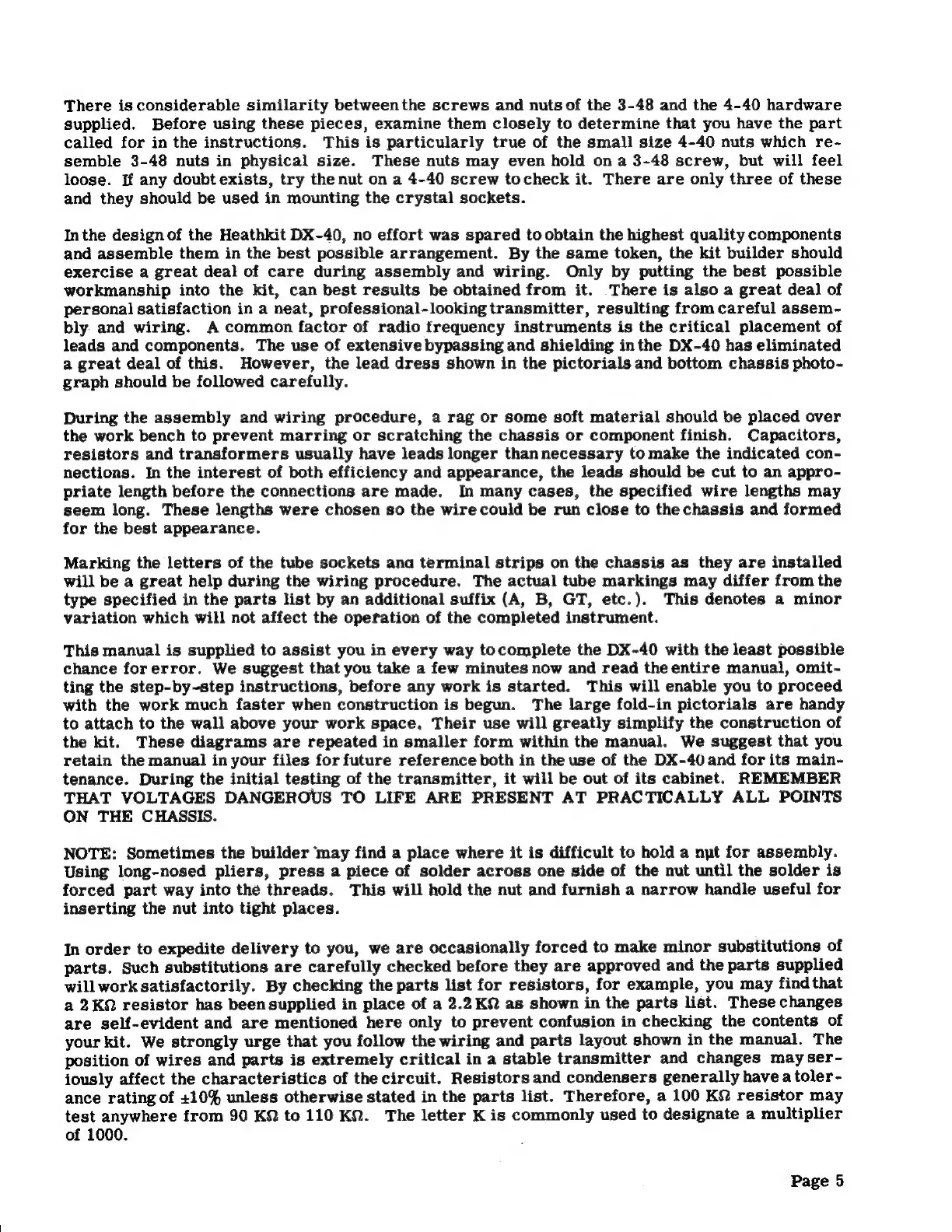

Page #5 background imageLoading...
Page #5 background image
There
is
considerable
similarity
betweenthe
screws
and
nuts
of
the
3-48
and
the
4-40
hardware
supplied.
Before
using
these
pieces,
examine
them
closely
to
determine
that
you
have
the
part
called
for
in
the
instructions.
This
is
particularly
true
of
the
smali
size
4-40
nuts
which
re-
semble
3-48
nuts
in
physical
size.
These
nuts
may
even
hold
on
a
3-48
screw,
but
will
feel
loose.
if
any
doubt
exists,
try
the
nut
on
a
4-40
screw
tocheck
it.
There
are
only
three
of
these
and
they
should
be
used
in
mounting
the
crystal
sockets.
Inthe
design
of
the
Heathkit
DX-40,
no
effort
was
spared
to
obtain
the
highest
quality
components
and
assemble
them
in
the
best
possible
arrangement.
By
the
same
token,
the
kit
builder
should
exercise
a
great
deal
of
care
during
assembly
and
wiring.
Only
by
putting
the
best
possible
workmanship
into
the
kit,
can
best
results
be
obtained
from
it.
There
is
also
a
great
deal
of
personal
satisfaction
in
a
neat,
professional-looking
transmitter,
resulting
from
careful
assem-
bly.
and
wiring.
A
common
factor
of
radio
trequency
instruments
is
the
critical
placement
of
leads
and
components.
The
use
of
extensive
bypassing
and
shielding
inthe
DX-40
has
eliminated
a
great
deal
of
this.
However,
the
lead
dress
shown
in
the
pictorials
and
bottom
chassis
photo-
graph
should
be
followed
carefully.
During
the
assembly
and
wiring
procedure,
a
rag
or
some
soft
material
should
be
placed
over
the
work
bench
to
prevent
marring
or
scratching
the
chassis
or
component
finish.
Capacitors,
resistors
and
transformers
usually
have
leads
longer
thannecessary
to
make
the
indicated
con-
nections.
In
the
interest
of
both
efficiency
and
appearance,
the
leads
should
be
cut
to
an
appro-
priate
length
before
the
connections
are
made.
In
many
cases,
the
specified
wire
lengths
may
seem
long.
These
lengths
were
chosen
so
the
wire
could
be
run
close
to
the
chassis
and
formed
for
the
best
appearance.
Marking
the
letters
of
the
tube
sockets
ana
terminal
strips
on
the
chassis
as
they
are
installed
will
be
a
great
help
during
the
wiring
procedure.
The
actual
tube
markings
may
differ
from
the
type
specified
in
the
parts
list
by
an
additional
suffix
(A,
B,
GT,
etc.).
This
denotes
a
minor
variation
which
will
not
affect
the
opetation
of
the
completed
instrument.
This
manual
is
supplied
to
assist
you
in
every
way
tocomplete
the
DX-40
with
the
least
possible
chance
forerror.
We
suggest
that
you
take
a
few
minutes
now
and
read
the
entire
manual,
omit-
ting
the
step-by~step
instructions,
before
any
work
is
started.
This
will
enable
you
to
proceed
with
the
work
much
faster
when
construction
is
begun.
The
large
fold-in
pictorials
are
handy
to
attach
to
the
wall
above
your
work
space,
Their
use
will
greatly
simplify
the
construction
of
the
kit.
These
diagrams
are
repeated
in
smaller
form
within
the
manual.
We
suggest
that
you
retain
the
manual
in
your
files
for
future
reference
both
in
the
use
of
the
DX-40
and
for
its
main-
tenance.
During
the
initial
testing
of
the
transmitter,
it
will
be
out
of
its
cabinet.
REMEMBER
THAT
VOLTAGES
DANGEROUS
TO
LIFE
ARE
PRESENT
AT
PRACTICALLY
ALL
POINTS
ON
THE
CHASSIS.
NOTE:
Sometimes
the
builder
may
find
a
place
where
it
is
difficult
to
hold
a
nyt
for
assembly.
Using
long-nosed
pliers,
press
a
piece
of
solder
across
one
side
of
the
nut
until
the
solder
is
forced
part
way
into
the
threads.
This
will
hold
the
nut
and
furnish
a
narrow
handle
useful
for
inserting
the
nut
into
tight
places.
In
order
to
expedite
delivery
to
you,
we
are
occasionally
forced
to
make
minor
substitutions
of
parts.
Such
substitutions
are
carefully
checked
before
they
are
approved
and
the
parts
supplied
will
work
satisfactorily.
By
checking
the
parts
list
for
resistors,
for
example,
you
may
find
that
a
2KQ
resistor
has
been
supplied
in
place
of
a
2.2K
as
shown
in
the
parts
list.
These
changes
are
self-evident
and
are
mentioned
here
only
to
prevent
confusion
in
checking
the
contents
of
your
kit.
We
strongly
urge
that
you
follow
the
wiring
and
parts
layout
shown
in
the
manual.
The
position
of
wires
and
parts
is
extremely
critical
in
a
stable
transmitter
and
changes
may
ser-
iously
affect
the
characteristics
of
the
circuit.
Resistors
and
condensers
generally
havea
toler-
ance
rating
of
+10%
unless
otherwise
stated
in
the
parts
list.
Therefore,
a
100
KĀ®
resistor
may
test
anywhere
from
90
KQ
to
110
KQ.
The
letter
K
is
commonly
used
to
designate
a
multiplier
of
1000.
Page
5
