ee P (eegere arse]
8-32 NUT by
#8 LOCKWASHER
TRANSFORMER
REAR
PANEL
1
| COUNTERSUNK
HOLE
8-32 x 3/8"
: BLACK

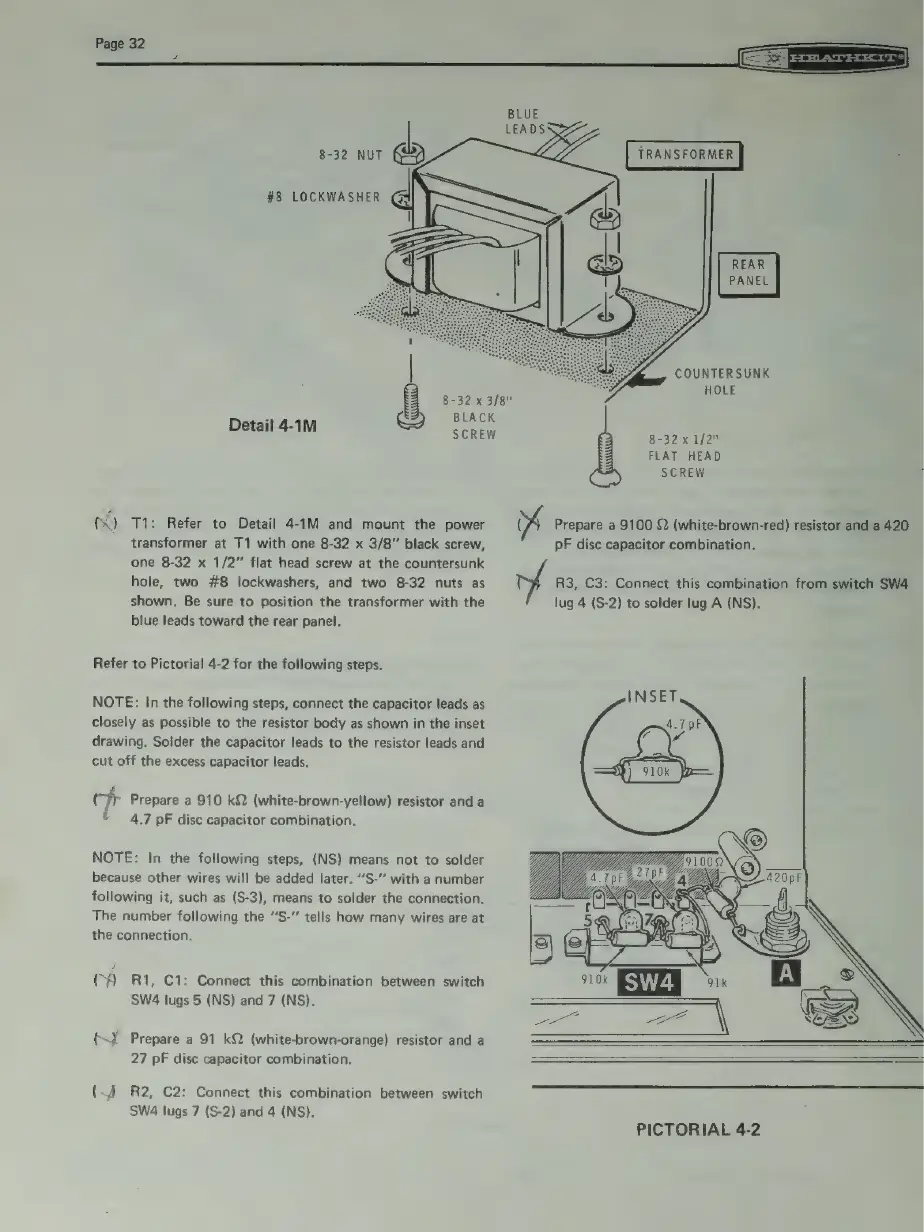

Detail 4-1M 7)
SCREW 8-32 x 1/2"
FLAT HEAD
SCREW
(A)
T1:
Refer
to
Detail
4-1M
and
mount
the
power
"A
Prepare
a
9100
{2
(white-brown-red)
resistor
and
a
420
transformer at T1 with one 8-32 x 3/8” black screw, pF disc capacitor combination.
one 8-32
x 1/2” flat head screw
at the
countersunk
of R3,
C3:
Connect this combination from switch SW4
lug 4 (S-2)
to solder lug A
(NS).
hole, two #8 lockwashers, and two 8-32 nuts as
shown. Be sure to position the transformer with the
blue leads toward the rear panel.
Refer to Pictorial 4-2 for the following steps.
NOTE: In the following steps, connect the capacitor leads as
closely as possible to the resistor body as shown in the inset
drawing. Solder the capacitor leads to the resistor leads and
cut off the excess capacitor leads.
Cr Prepare a 910 kQ (white-brown-yellow) resistor anda
© 4.7 pF disc capacitor combination.
NOTE: In the following steps, (NS) means not to solder
because other wires will be added later. “’S-’’ with a number
following it, such as (S-3), means to solder the connection.
The number following the “’S-’’ tells how many wires are at
the connection.
(“4 Ri, C1: Connect this combination between switch
SW4 lugs 5 (NS) and 7 (NS).
(~) Prepare a 91 kQ (white-brown-orange) resistor and a
27 pF disc capacitor combination.
(~) R2, C2: Connect this combination between switch
SW4 lugs 7 (S-2) and 4 (NS).
PICTORIAL 4-2
