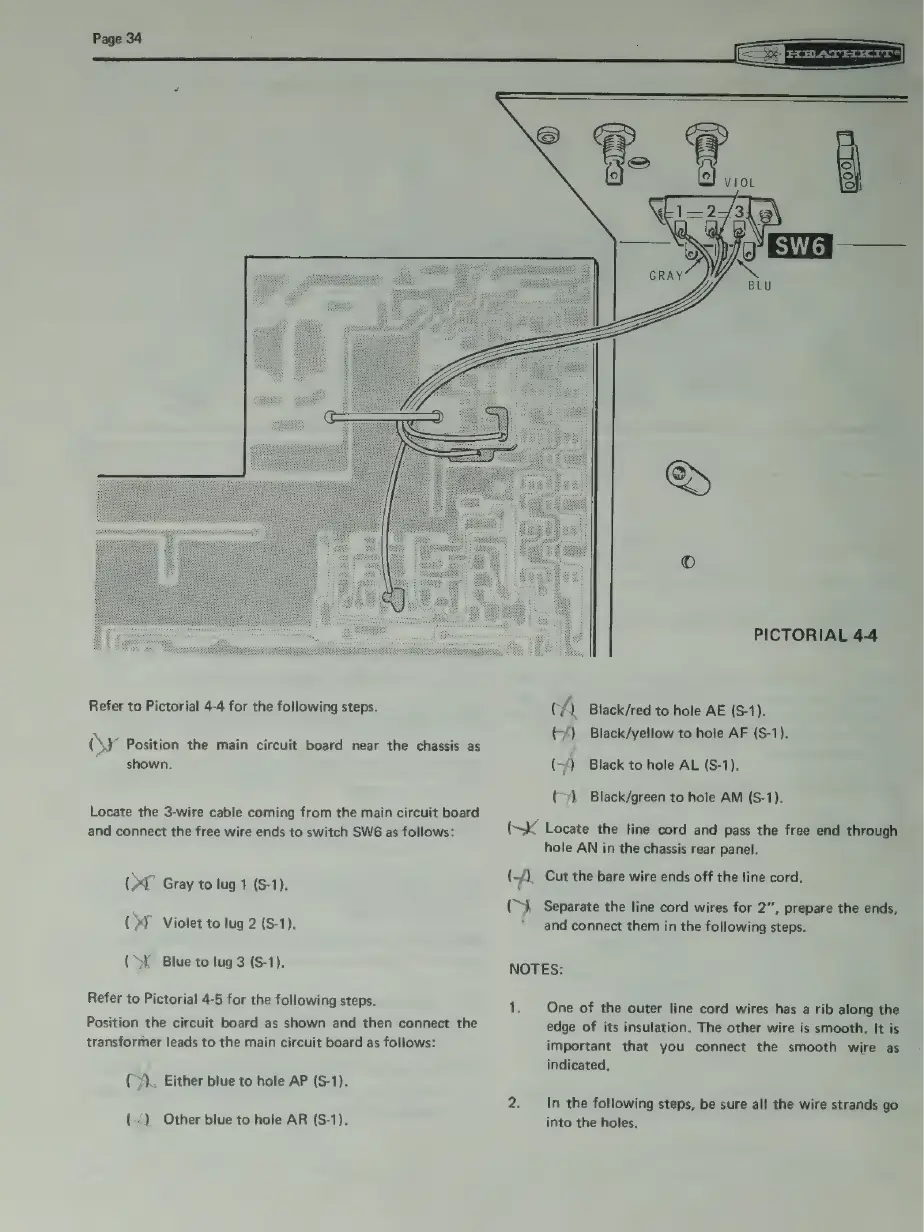

Refer
to
Pictorial
4-4
for
the
following
steps.
S)
Position
the
main
circuit
board
near
the
chassis
as
shown.
Locate
the
3-wire
cable
coming
from
the
main
circuit
board
and
connect
the
free
wire
ends
to
switch
SW6
as
follows:
(I
Gray
to
lug
1
(S-1).
(J
Violet
to
lug
2
(S-1).
(‘S}
Blue
to
lug
3
(S-1).
Refer
to
Pictorial
4-5
for
the
following
steps.
Position
the
circuit
board
as
shown
and
then
connect
the
transformer
leads
to
the
main
circuit
board
as
follows:
(>).
Either
blue
to
hole
AP
(S-1).
(~.)
Other
blue
to
hole
AR
(S-1).
PICTORIAL
44
(A)
Black/red
to
hole
AE
(S-1).
(>)
Black/yellow
to
hole
AF
(S-1).
(“A
Black
to
hole
AL
(S-1).
(~~)
Black/green
to
hole
AM
(S-1).
(K
Locate
the
line
cord
and
pass
the
free
end
through
hole
AN
in
the
chassis
rear
panel.
(-4)
Cut
the
bare
wire
ends
off
the
line
cord.
(~),
Separate
the
line
cord
wires
for
2”,
prepare
the
ends,
and
connect
them
in
the
following
steps.
NOTES:
t
One
of
the
outer
line
cord
wires
has
a
rib
along
the
edge
of
its
insulation.
The
other
wire
is
smooth.
It
is
important
that
you
connect
the
smooth
wire
as
indicated.
tah
In
the
following
steps,
be
sure
all
the
wire
strands
go
into
the
holes.
