TIME BASE
petaD lity Se ah Poem ek eo ee +1 ppm.
FFCQUENCY ss uk Sree eee i 10 MHz.
Temperature Stability ...-< is... sae 8a. 5 +10 ppm, maximum 0° to 40° ambient.
OSCILLATOR CONNECTION
External.Input Frequency 4 ...-.0.-.-8oo + ak DC to 20 MHz.
External input Sensitivity 5. ...22 2.83 <2 TTL or 2.5 V rms from 50 Q source.
laternal Guiputs] icf soa ake ee TTL signal at 1 MHz.
1Hz 10Hz 10kHz 100kHz IMHz 1OMHz
30MHz

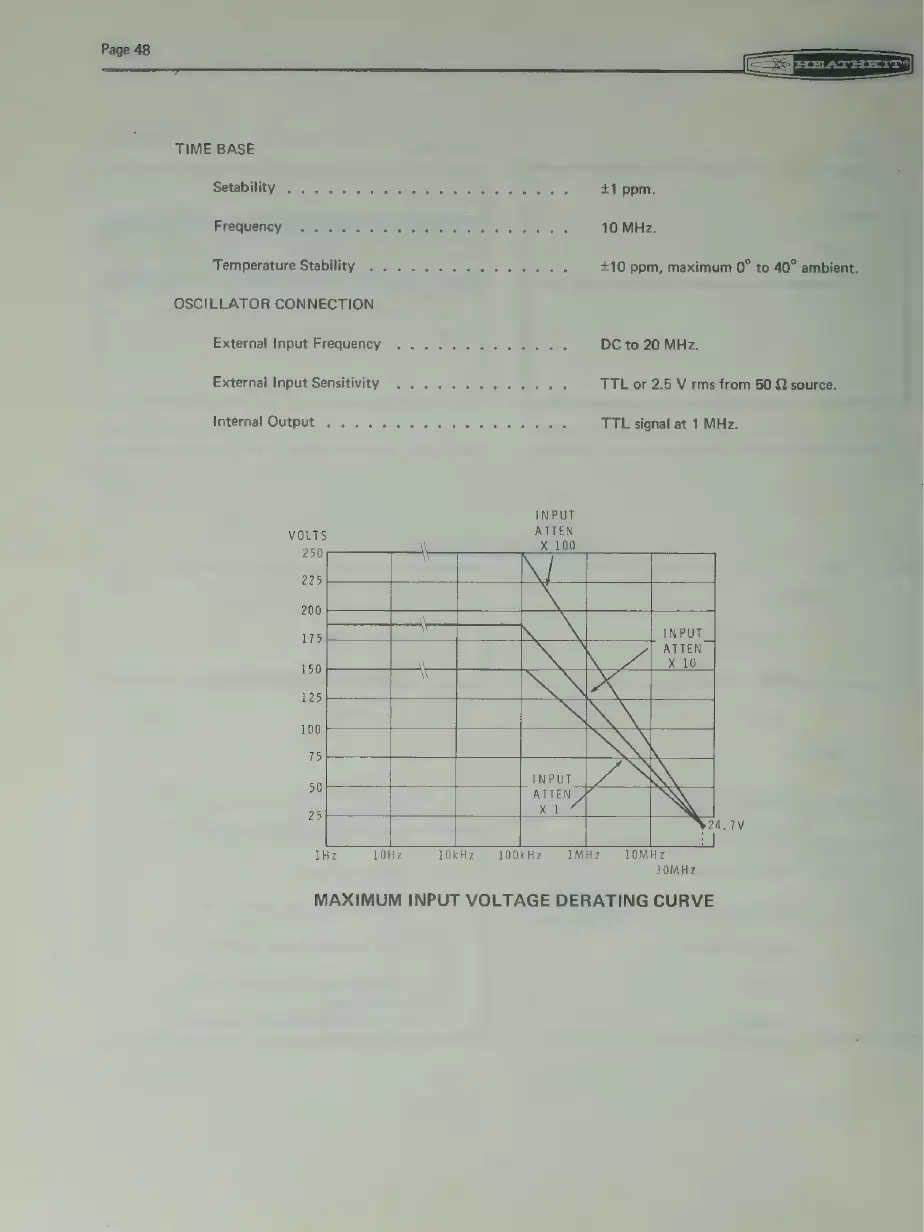

MAXIMUM INPUT VOLTAGE DERATING CURVE
