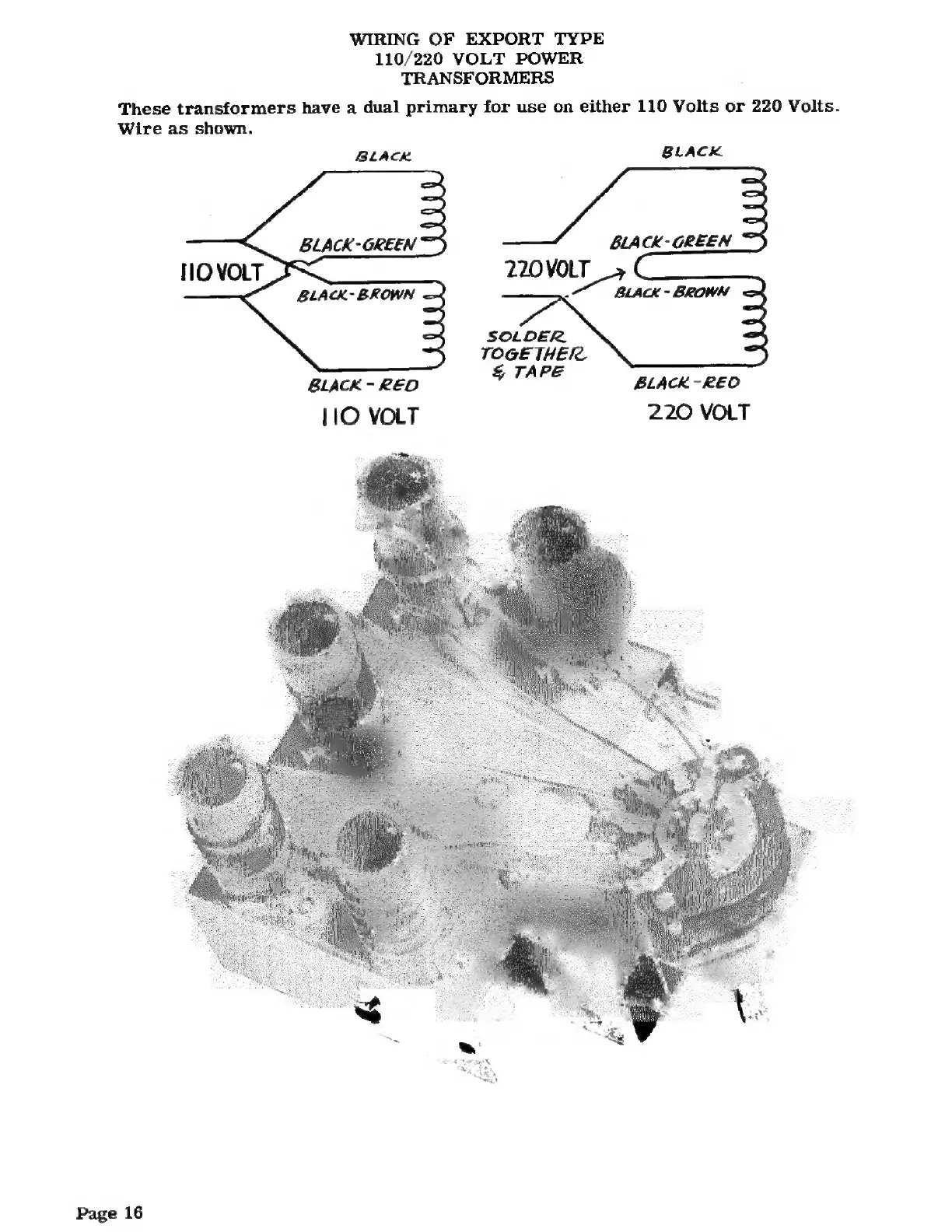

WIRING OF EXPORT TYPE
110/220 VOLT POWER
TRANSFORMERS
These
transformers
have
a
dual
primary
for
use
on
either
110
Volts
or
220
Volts.
Wire
as
shown.
BLACK
BLACK
BLACK-GREEN
BLACK-
GREEN
HOVOLT
220
VOLT
BLACK-
BROWN
=
as
Peer
rem
SOLDER
TOGETHER
BLACK
-
RED
alae.
BLACK
-
RED
110
VOLT
220
VOLT
Page 16
