30 – 560 HEIDENHAIN Service Manual iTNC 530 HSCI

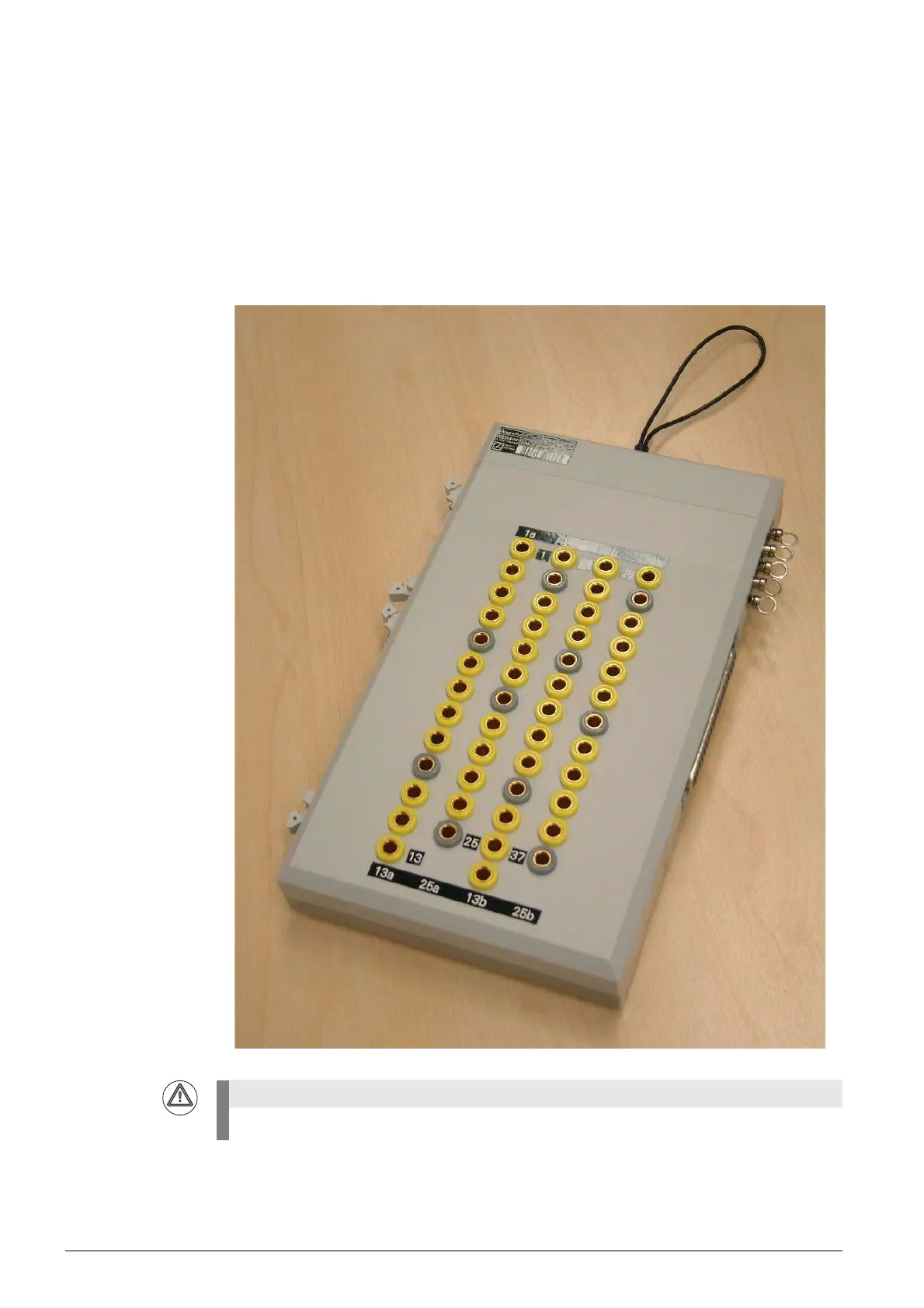

30.2 Test adapter
Brief description The test adapter ...
 currently has the ID 375830-01.
 can be connected to all D-Sub and ribbon-cable connectors of HEIDENHAIN devices.
 requires adapter cables.
 has numbered banana jacks to which, e.g., a multimeter can be connected.
 permits signal and voltage measurement during the operation of HEIDENHAIN devices.
 has five prepared banana plugs with eyes to be clipped on the measuring lines.
These banana plugs are located at the upper right; if required, they can be plugged into the
numbered banana jacks.
DANGER
Only one interface at a time may be inspected on the test adapter!
