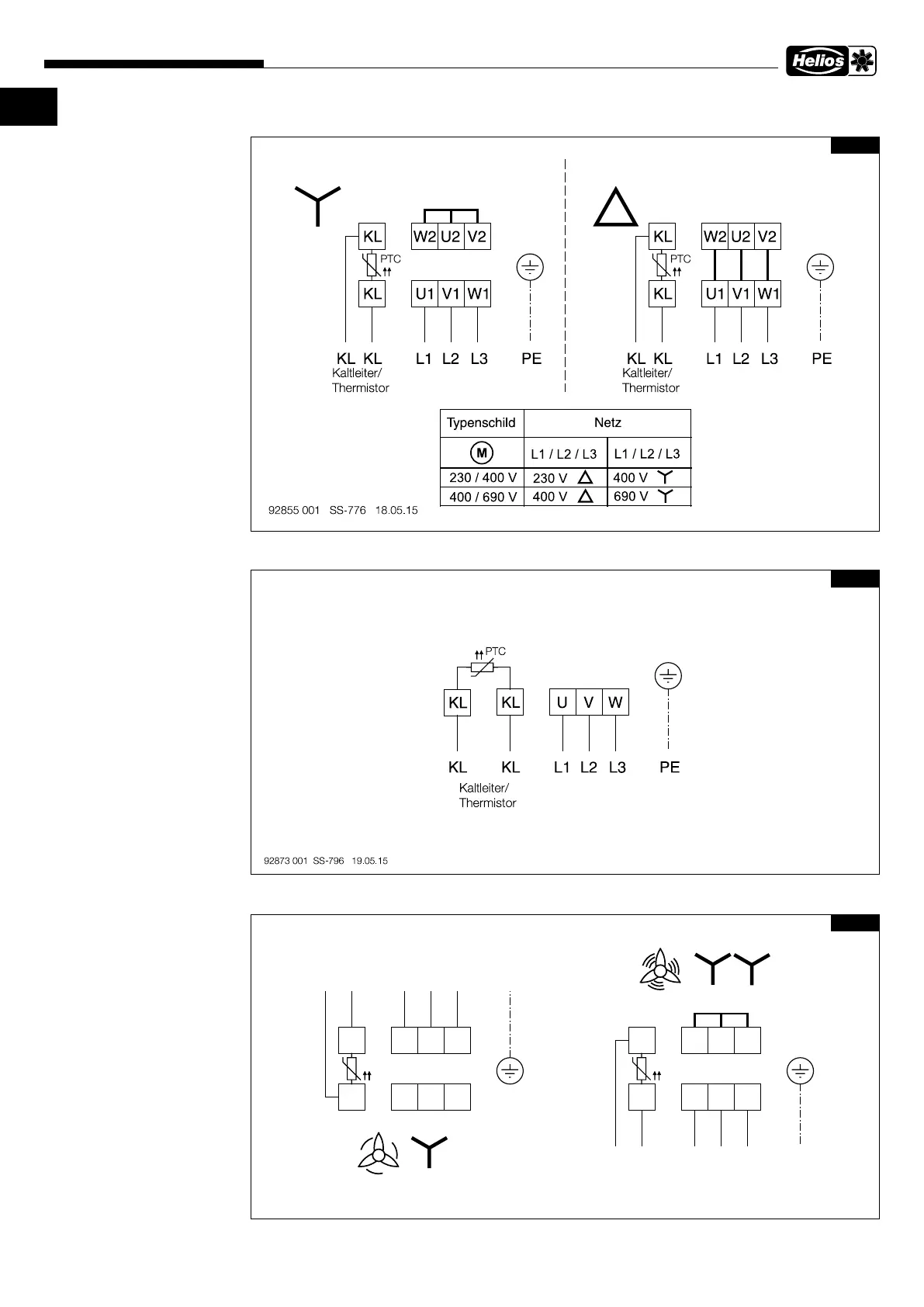

AMD – Axial-Mitteldruckventilatoren
Montage- und Betriebsvorschrift
16
SS-776
Drehstrom, Stern-Dreieck-
Anlauf mit Kaltleiter (PTC)
Abb.17
SS-796
Drehstrom, Direkt-Anlauf mit
Kaltleiter (PTC)
SS-777
Drehstrom, Dahlander mit
Kaltleiter (PTC)
92856 001 SS-777
1U 1V 1WKL
2U 2V 2WKL
KLKL
L1 L2 L3
PE
1U 1V 1WKL
2U 2V 2WKL
KLKL L1 L2 L3 PE
Kaltleiter/
Thermistor
PTC PTC
Kaltleiter/
Thermistor
Abb.19
Abb.18
