Extension module KWL-EM eC for easyControls
Operating Instructions
3
2�1 Technical Data
KWL-EM eC
Voltage/frequency: 1 ~ 230 V/Hz
Rated current max.: 10�4 A
Power consumption max.: 2�4 kW
Protection category: IP44
Temperature installation area: 5 - 45°C < 90% r�F�

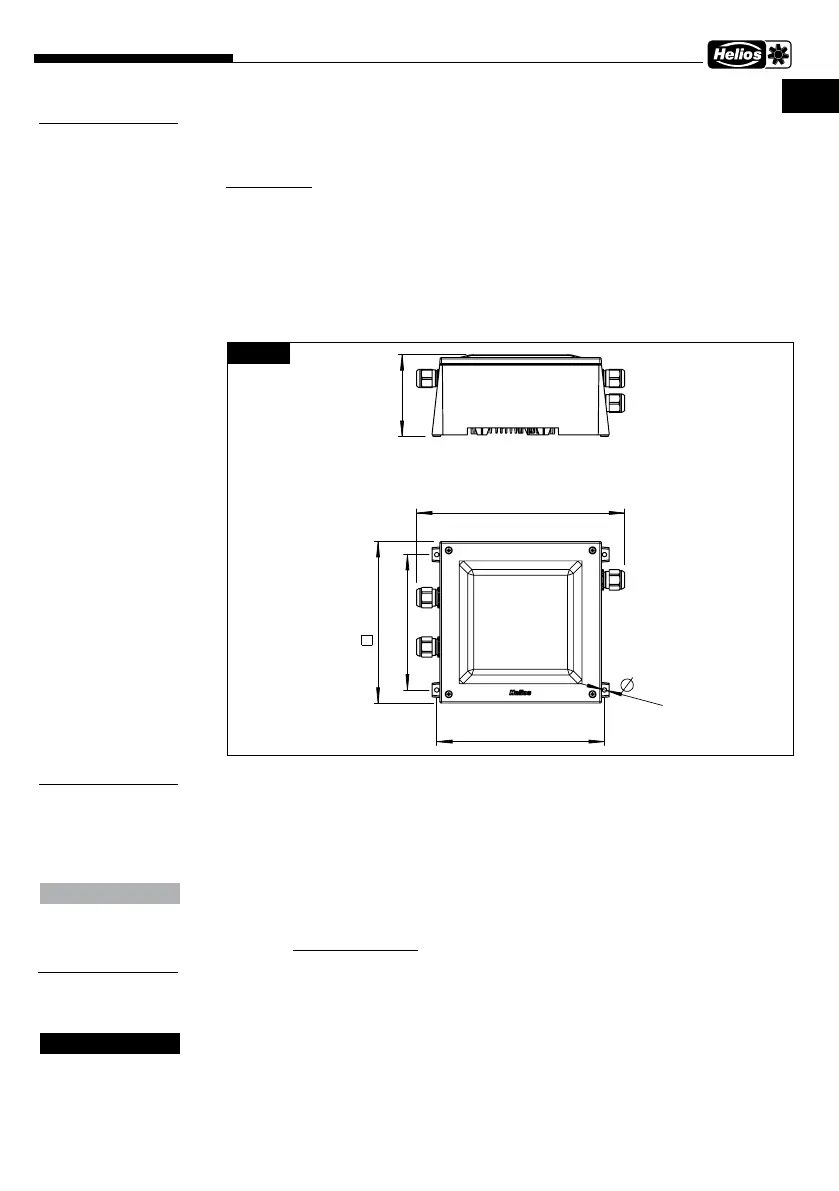

2�2 Dimensions
3�1 KWL-EM eC
Secure the KWL-EM eC to the wall with suitable mounting material through the provided
screw openings in the corners of the casing.
Orient the KWL-EM eC with Helios lettering downwards�
ⓘ The latest version of the operating instructions can be downloaded from Helios-
Select at www�HeliosSelect�de at the corresponding article�
4�1 Electric connection
m Danger to life!
All electrical connections and electrical commissioning may only be carried out
by qualified electricians! Installation, service and maintenance work may only be
carried out by suitable specialist personnel!
CHAPTER 2
TECHNICAL DATA
210
176
218
~270
5,5
106
Fig�1 A
CHAPTER 3
INSTALLATION
NOTE
CHAPTER 4
CONNECTION
m
DANGER
