HELIX HELIX-12 Series - Page 18

Parts List and Diagrams


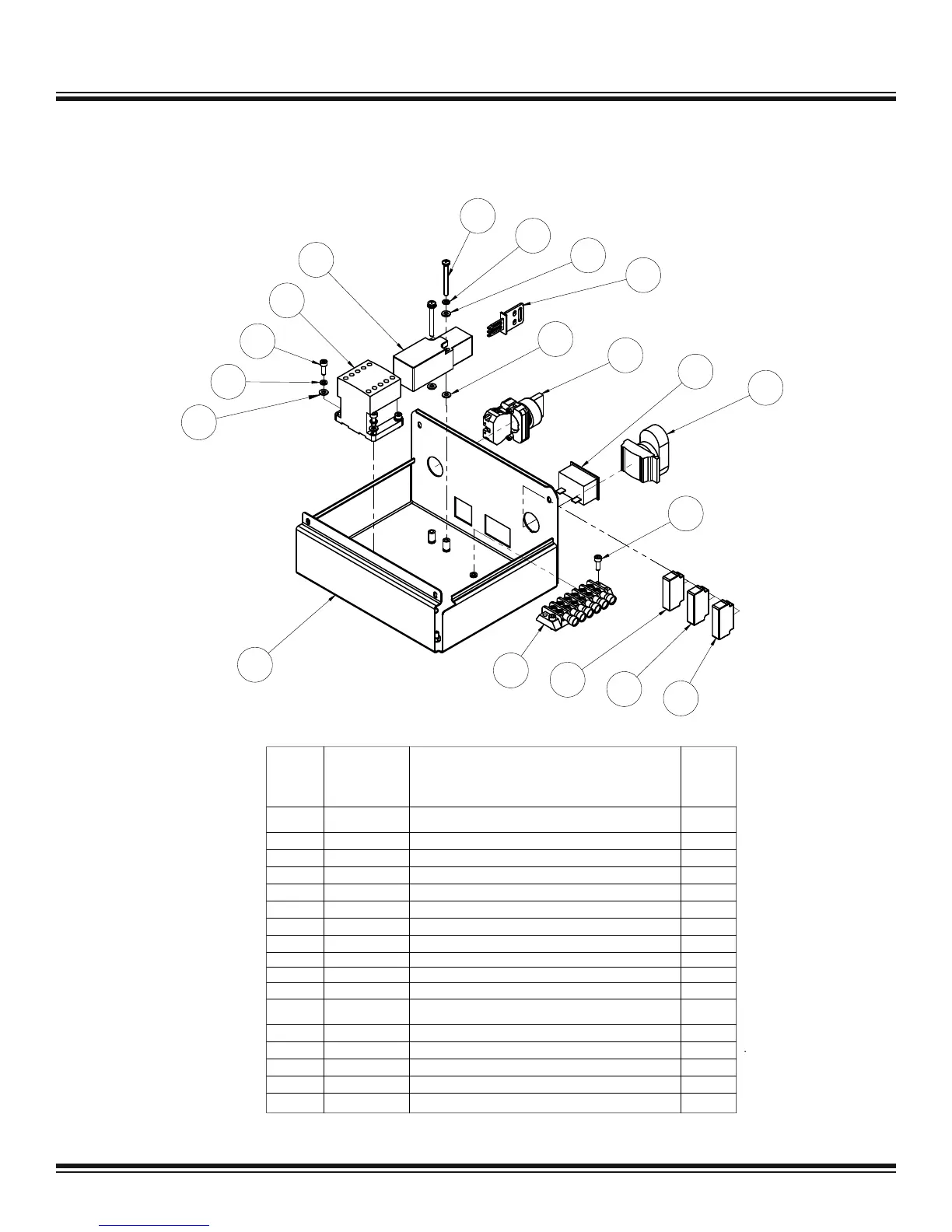

CONTROL PANEL
ITEM NO.
HELIX-11XXXX
HELIX-13XXXX
HELIX-15XXXX
HELIX-26XXXX
HELIX-27XXXX
DESCRIPTION QTY.
1 403829
Cover, Electric Box, Pivoting Handle, 2.17"
Flange
1
2 403877 Pushbutton, On/Off, Light, BF 1
3 403879 Contact, NC, Pushbutton, BF 1
4 403880 Contact, NO, Pushbutton, BF 1
5 403878 Block, LED Lamp, Green, 220VAC, BF 1
6 402773 Switch, Safety, 10A 1
7 401326 Washer, Flat, M4 8
8 402787 Washer, Lock, #8 7
9 402785 Screw, PPH, M4-0.7 x 40mm, Zinc 2
10 403158 Switch, Selector, Two position 1
11 401653 SHCS, M4-0.7 x 12 6
12 403253
Meter, Hour, Digital, 90-64VAC, 10-300VDC,
50/60Hz, Snap-on
1
13 402774 Key, Safety Switch 1
15 403044 Wrap, Wrist, Safety 1
16 403185 Terminal, Ring, 12-10ga, #6 6
17 403828 Contactor, 230V, 50/60Hz, 12A, 3 Pole 1
19 403873 Harness, Wire, Helix, 2.17" Flange 1
*NOT SHOWN (WIRES FOR 403316 NOT SHOWN)
