HELIX HELIX-12 Series User Manual

Parts List and Diagrams


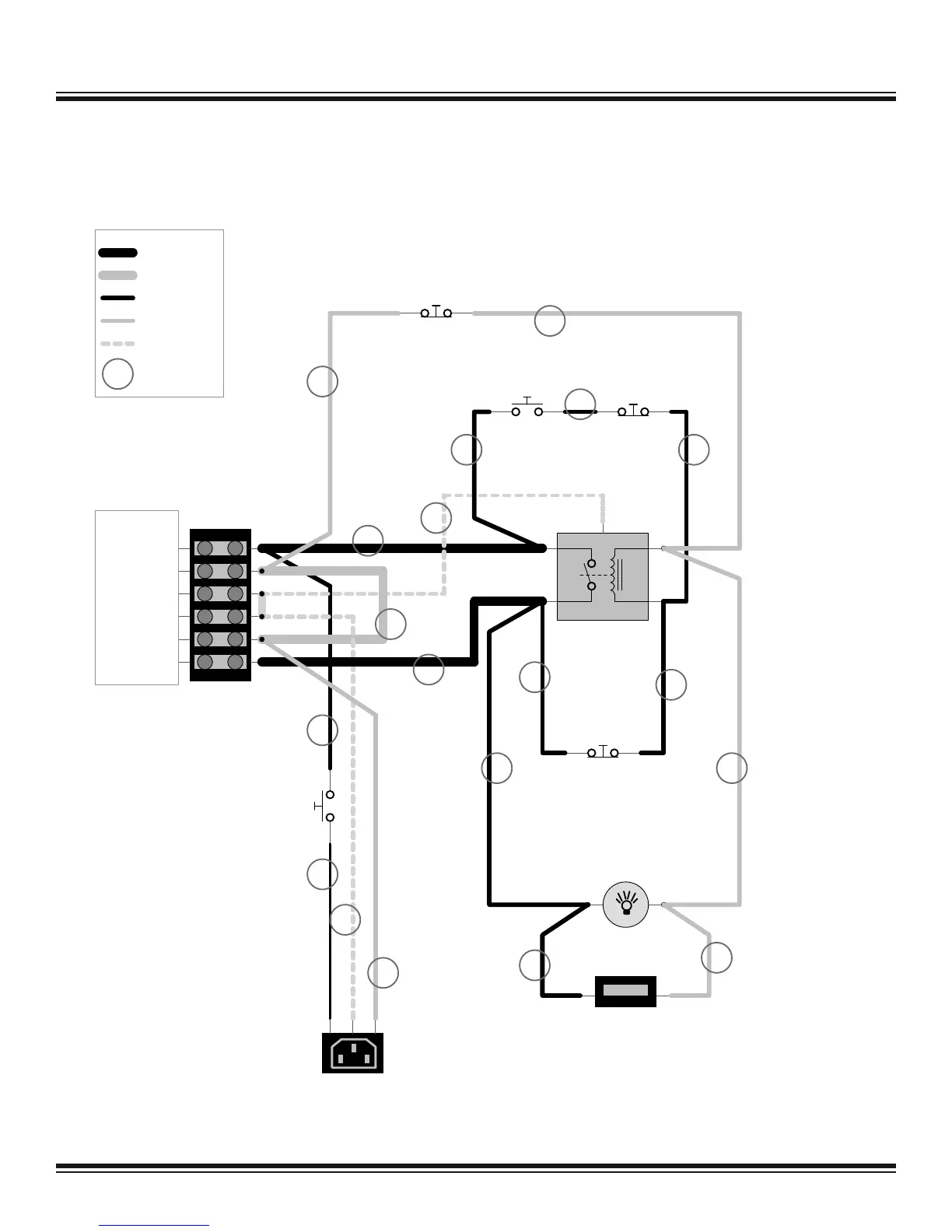

WIRING DIAGRAM
6 Position Screw
Terminal Block
3
4
2
1
LOAD INPUT
Solid State Relay
GND
1 2
Hourmeter
HOURS
X2 X1
Green Light
IEC Female
L
GND
N
Line IN
Neutral IN
Ground IN
Ground OUT
Neutral OUT
Line OUT
Final Assembly
Connections
Jumper
Light Switch N-O
4
3
21 22
Safety Key N-C
Safety Key N-C
11 12
Motor Start N-O
43
Motor Stop N-C
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
12 AWG Black
12 AWG White
16 AWG Black
16 AWG White
16 AWG Green
10 Wire Number
Helix Control Panel Schematic

HELIX HELIX-12 Series Specifications

General

Brand	HELIX
Model	HELIX-12 Series
Category	Grinder
Language	English
