e) Sketch map for connection of detachable handpiece
f) Sketch map for how to install tip and endochuck with wrench
6 7
b) Sketch map for connection of foot switch, power supply and main unit
c) Sketch map for connection of water supply system
d) Sketch map for automatic water supply system (optional)

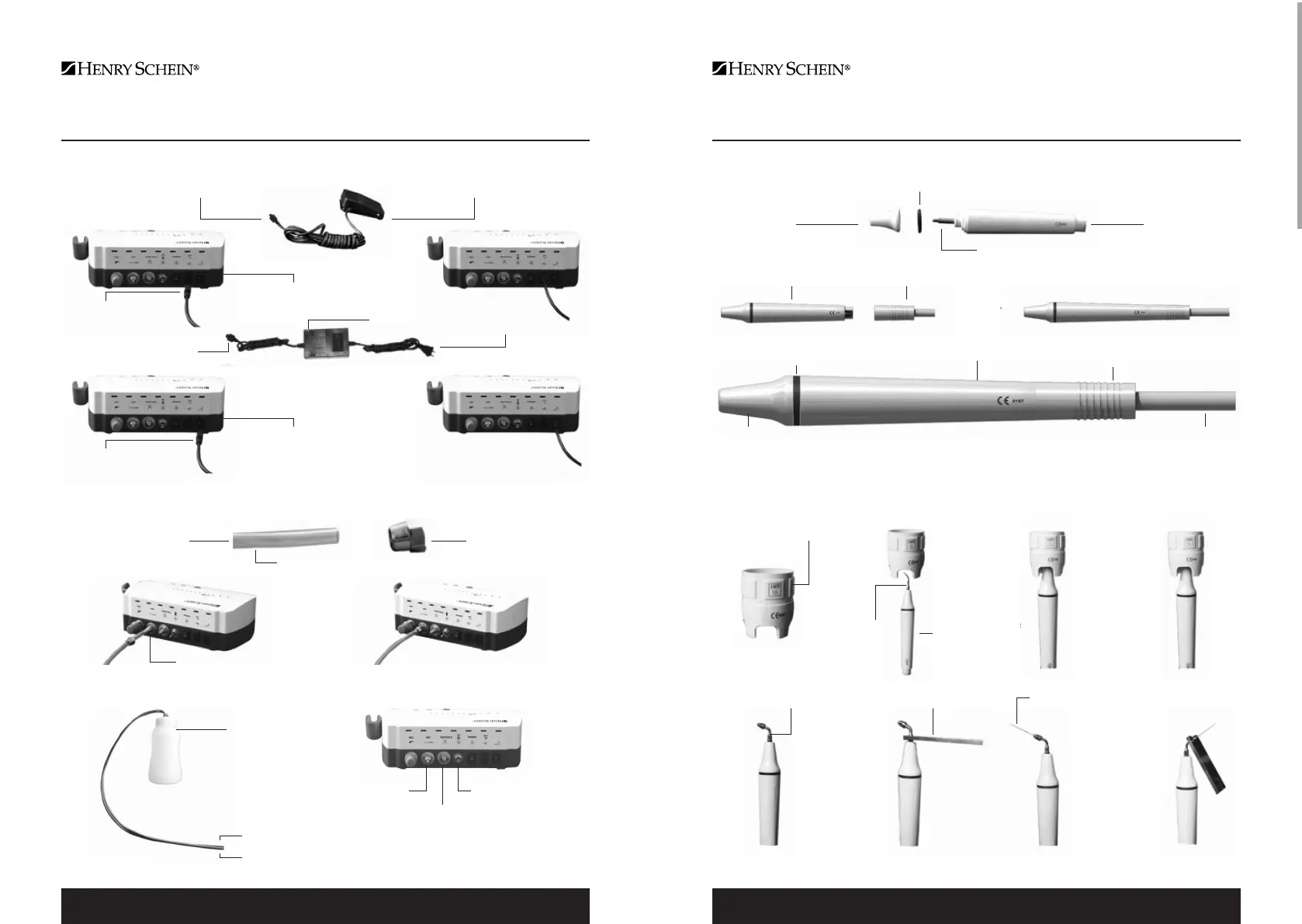

1.THE INSTALLATION AND COMPONENTS OF EQUIPMENT
VET PIEZO SCALER PS1
Plug of foot switch Foot switch
Handpiece decorative ring
Nipple Handpiece
Shaft
Foot switch socket
Plug of foot switch Power supply
Input voltage 220V to 230V
Power cord plug
Socket for power supply
Power cord plug
Connect pure water
Cap of connector
Water pipe
Water entrance
Switch for automatic
w
ater supply (optional)
Air exit(optional)
Connect water entrance (small)
Connect air exit (big)
ð
ð
ð
ð
Water entrance
Reservoir
Torque wrench
1.THE INSTALLATION AND COMPONENTS OF EQUIPMENT
VET PIEZO SCALER PS1
Handpiece The connector of cable
Nipple Handpiece
ð
ð
ð
ðð
ððð
Å
Å
Å
Handpiece
Handpiece decorative ring The connector of cable
Nipple Cable
Screw on
Screw onScrew on
HandpieceTip
Endochuck Endowrench File
