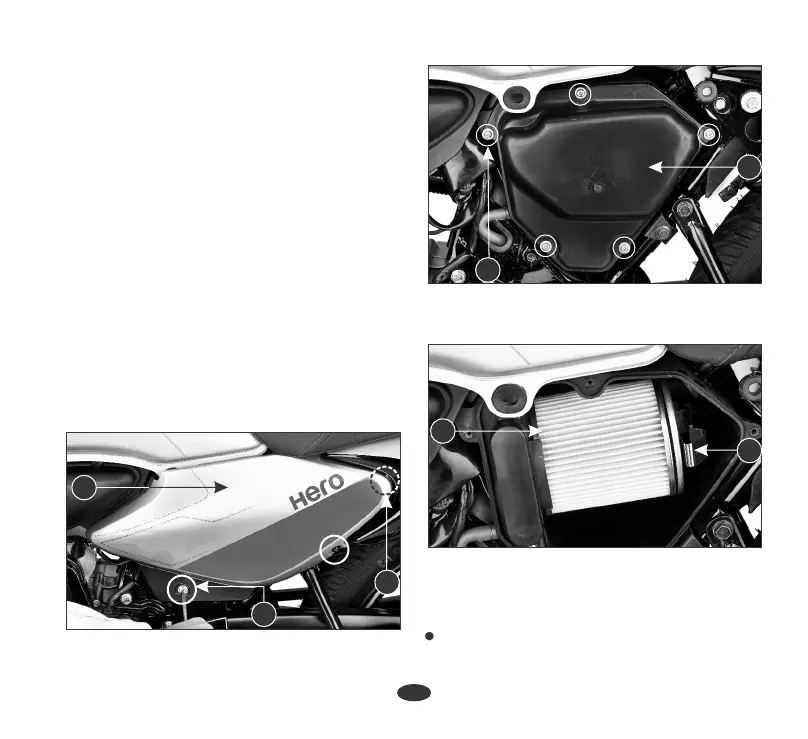

(1) Side cover screws (2) Side cover (3) Tab
6
7
AIR CLEANER
The air cleaner element is of Dry Paper
Pleated type it should be serviced at regular
intervals (page 33). When riding in dusty
areas, more frequent service may be
necessary.
(4) Air cleaner cover screws
(5) Air cleaner cover
1
2
3
1. Remove the side cover screws (1).
3. Remove the air cleaner cover screws (4)
and the cover (5)
4. Press the mounting clamp (7) to release
the air cleaner assembly from the
housing and remove the air cleaner
assembly (6).
2. Remove the side cover (2) by releasing
the tab (3) from the rear cowl slot.
(6) Air cleaner assembly
(7) Mounting clamp
Remove the Air Cleaner Element (8)
from the Element Holder (9)
5. Air cleaner Cleaning
To Next Page
