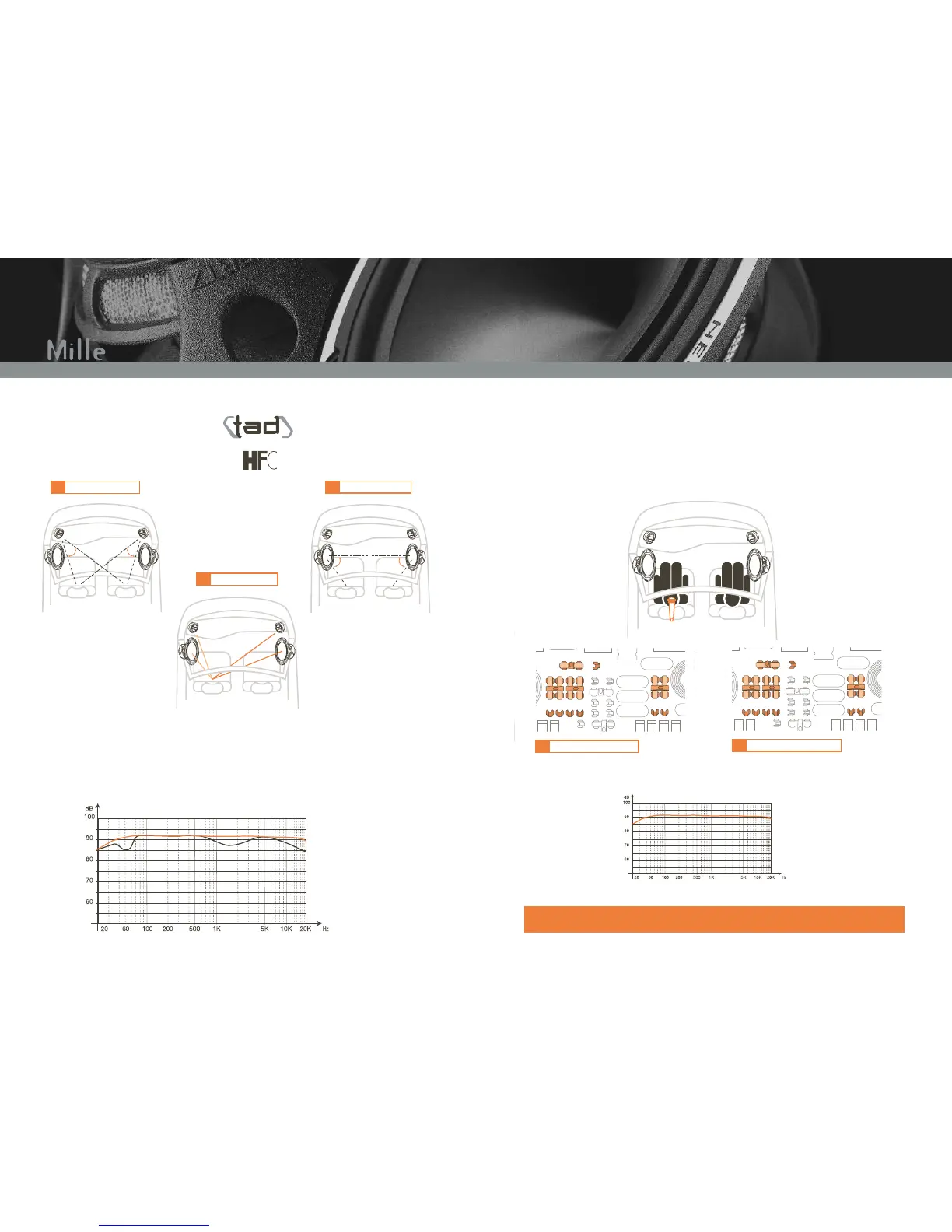

Driver alignment
If the two bridges of the left crossover are set on TAD In/HFC In and the ones of the right
crossover are set on TAD Off/HFC Off, the left channel response is improved with regard to
extension, sensitivity, phase and you get the same FFT as the right channel one. The sound
image the driver perceives is in the center of the virtual stage; tonal accuracy gets colorless,
clearer.
TAD Bypass TAD Bypass
HFC
ON OFF
Caution
Disconnect the system before changing the jumpers position in the printed circuit board.
TAD Bypass TAD Bypass
HFC
ON OFF
Driver's side crossover
Passenger's side crossover
TAD
®
Time Alignment Device
In standard installations, the different position of Left and Right channels with regard to the
listening point changes the width and the phase of the perceived signal. You lose energy at high
frequencies and the mid-frequency is slightly altered, too: sound is therefore unclear, as well as
image is.
30°
45°
30°
45°
Tweeter angulation
Woofer angulation
+25/35 cm
Speakers offset
Tuning
