Assembly, Operation & Maintenance Instructions

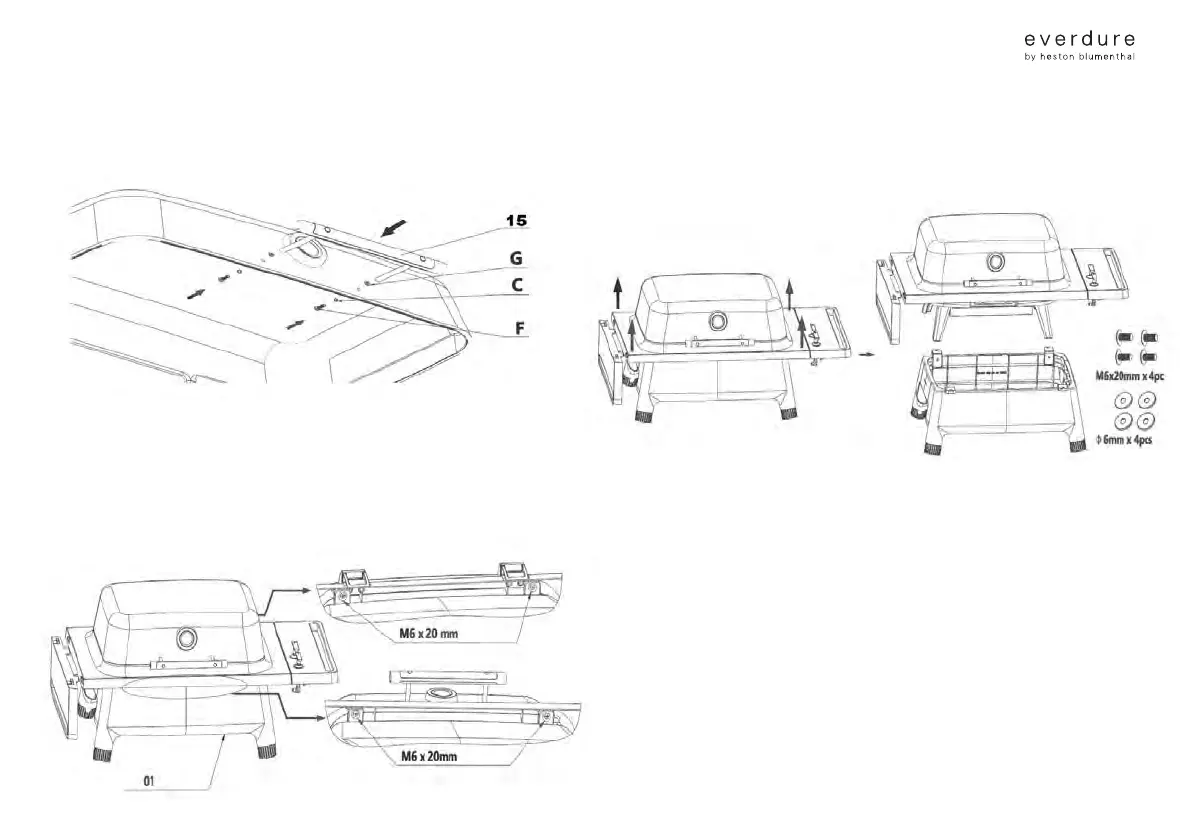

STEP 01
/Open the hood and x the hood handle (15) using two M5x0.6in (15mm) screws (F), two
Ø0.2in (5mm) spring washers (C) and two Ø0.2in(5mm) at washers (G). Tighten in place.
STEP 02
/ The hood and barbeque chassis assembly is transported screwed to the stand top by four
M6x0.8in (20mm) screws and four Ø0.2in (6mm) at washers (two at the front and two
at the rear). Before attempting to build the stand, the stand top should be removed.
Angle the assembly slightly to the back and remove both M6x0.8in (20mm) screws, then do the
same at the front, supporting the parts so they don’t drop. Keep all of the fasteners for later
use. Removable stickers at the front and rear will mark the positions of these screws.
Remove the hood and barbeque chassis assembly from the stand top and place on the ground.
STEP 03
/ Take the stand top (01B) and place it upside down (leg stumps up) on a clean surface (note:
there is no front or rear to this part).
Take the right front leg (04 with a screw hole in the foot) and slot it over the rear right corner
stump.
Take the right back leg (05 with a screw hole in the foot) and slot it over the front right corner
stump.
Take the left front leg (02) and slot it over the rear left leg stump.
Take the left back leg (03) and slot it over the front right leg stump.
Take the aluminium wire (18) and x them in the screw hole with four M6x0.*in (20mm) screw
(J) and at washer (E), but do not tighten.
