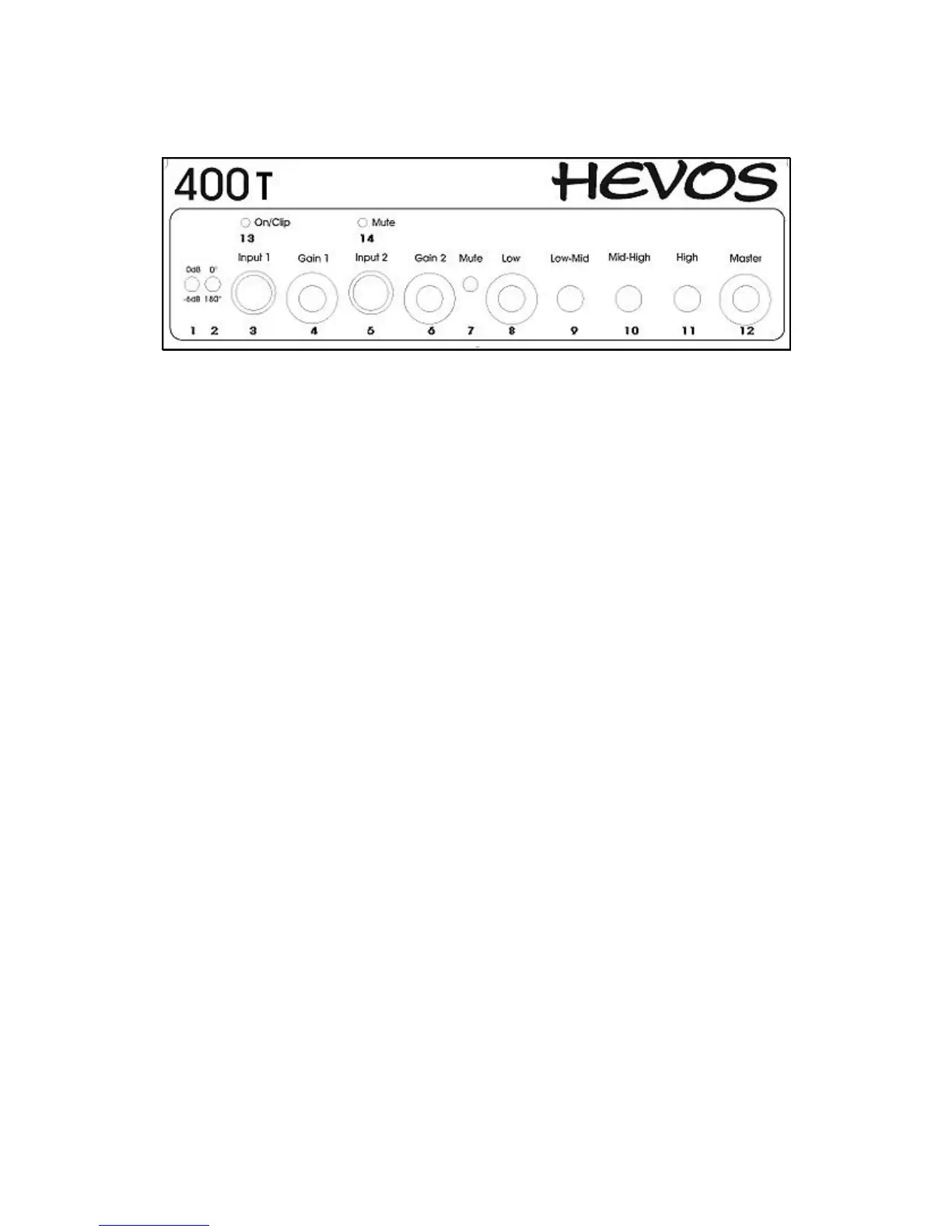

Control panel front
1. –6dB switch: reduces the sensibility of Input 1
2. Phase turn switch: puts one pick up out of phase when using 2 pick ups
(double bass).
3. Input 1
4. Gain Input 1: controls the signal amplitude towards the pre amp.
5. Input
6. Gain Input 2: controls the signal amplitude towards the pre amp.
7. Mute switch: activates the Mute-Out at the back.
8. Low: tone control 80 Hz, ± 12 dB, Q = 0,5
9. Low-Mid: tone control 250 Hz, ± 12 dB, Q = 0,5
10. Mid-High: tone control 800 Hz, ± 12 dB, Q = 0,5
11. High: tone control >2500 Hz, ± 12 dB, Q = 0,5
12. Master: controls the signal amplitude to the power amp.
13. On/Clip led: green at power-on. Red when the input signal is too high.
14. Led Mute-Out
