HEX Alton - Page 24

Assembly Guide
22
FK1
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE

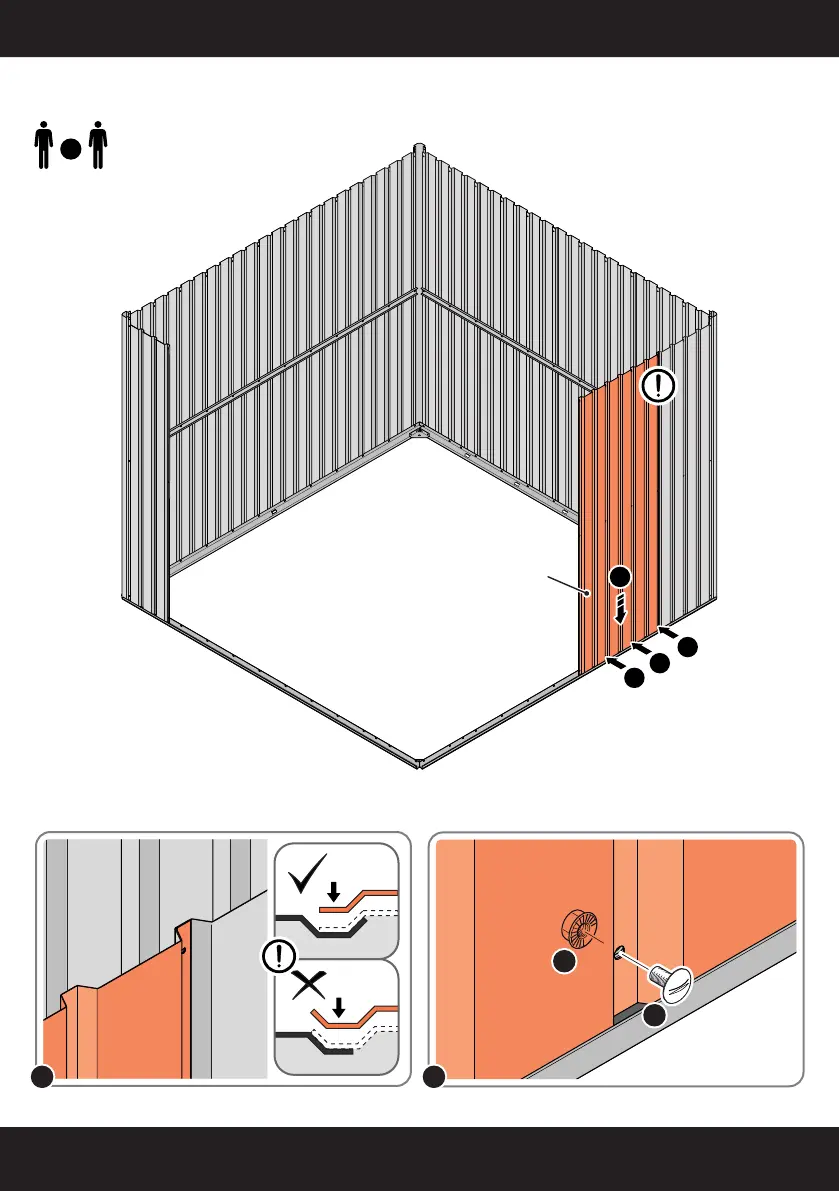

LOCATE WALL PANEL 0205-12 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
17A
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
x2
ASSEMBLY STAGE 17
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
17B
0205-12
17B
17B
17B
17A
