Assembly Guide
50
0244-11

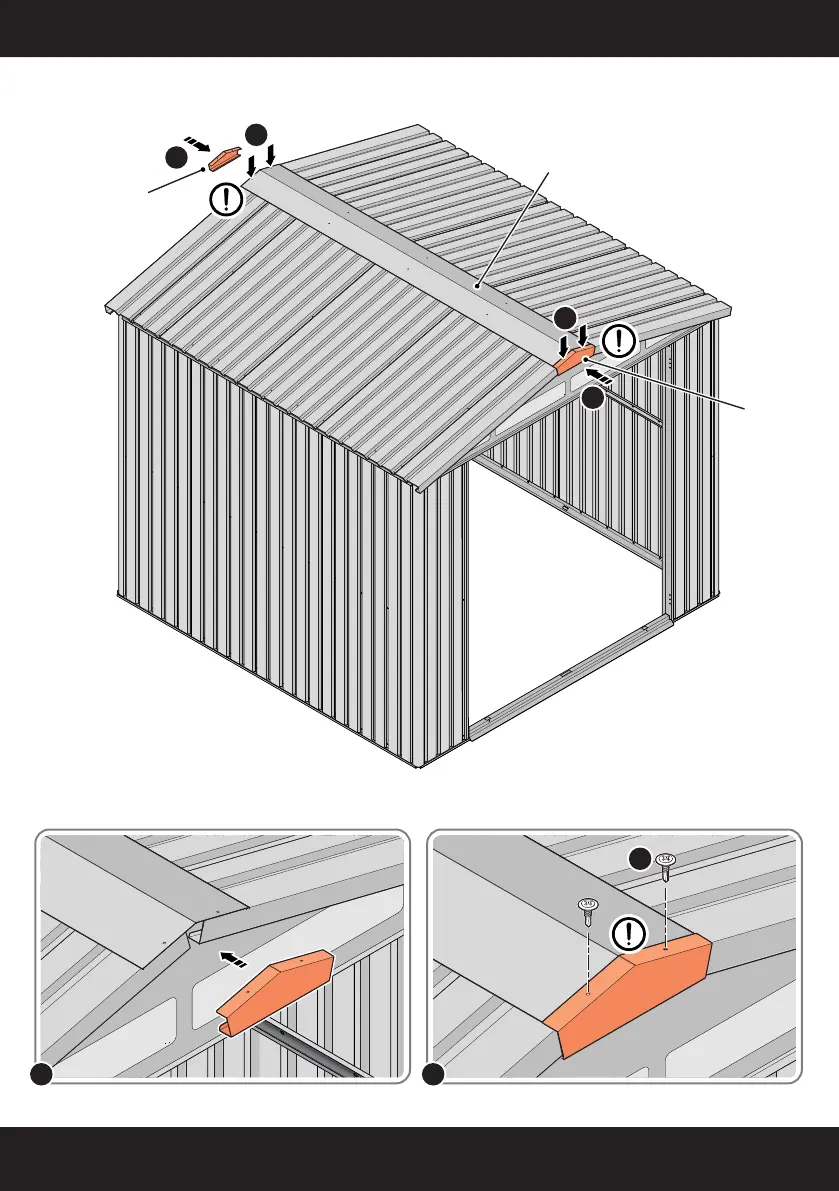

ASSEMBLY STAGE 45
LOCATE AND SECURE ROOF RIDGE CAPS 0244-11 TO ROOF RIDGE 0256-06.
45B
45A
45A
45B
0244-11
0256-06
FK2
PLEASE NOTE: THE FIXING USED IS A SELF DRILLING COMPONENT.
SECURE RIDGE CAP AT x4 LOCATIONS INDICATED USING TYPICAL FIXING METHOD.
45B
SLIDE RIDGE CAP 0244-11 INTO POSITION AT FRONT & REAR OF THE SHED ROOF.
45A
