HEX Alton - Page 63

61
Assembly Guide
B
B
B
A
A
ALIGN EACH GAS STRUT BRACKET WITH RELEVANT FIXING
HOLES, SECURE USING TYPICAL FIXING METHOD ABOVE.
SECURE A GAS STRUT BALL JOINT 0205-68 ONTO
EACH GAS STRUT BRACKET 0205-66.

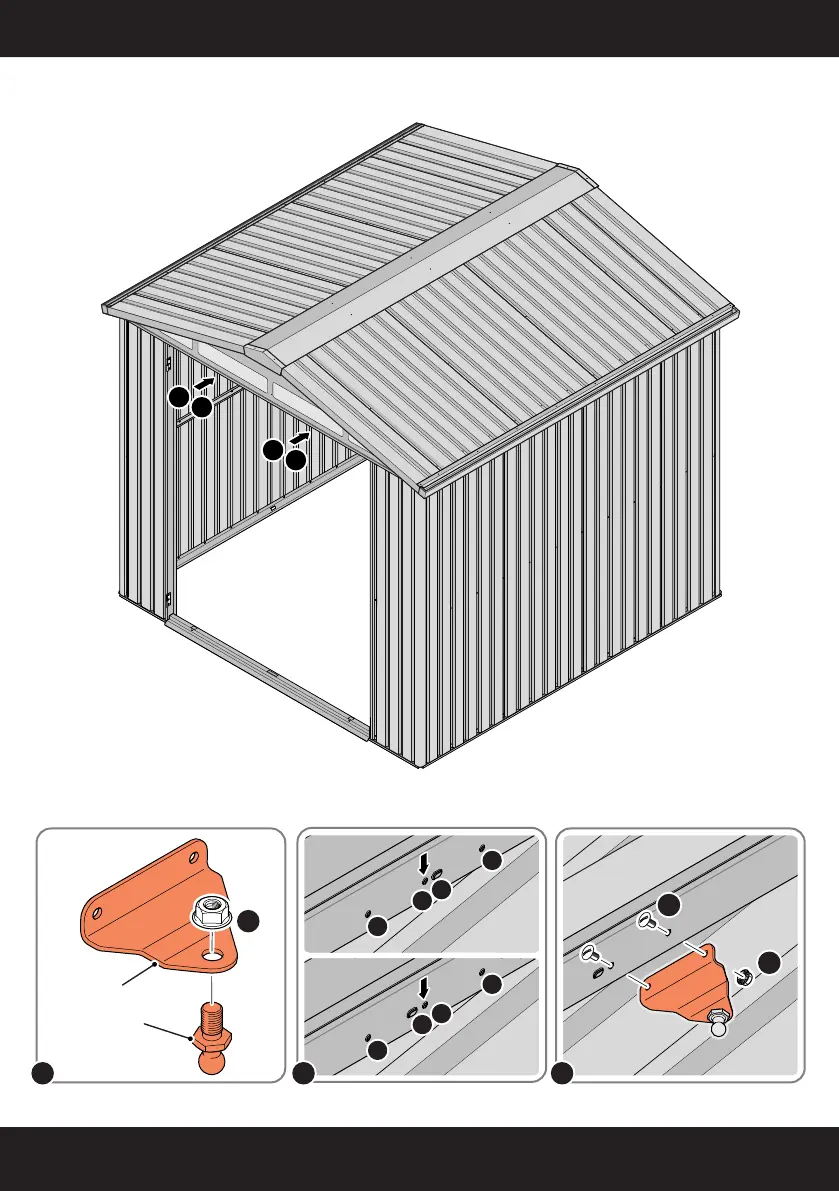

ASSEMBLY STAGE 54
LOCATE AND SECURE GAS STRUT BRACKETS 0205-66.
FK6
0205-66 (x2)
LEFT-HAND
RIGHT-HAND
0205-68 (x2)
54A
FK1
FK6
54C54B
A
A
B
DETERMINE DOOR OPENING ANGLE:
A: 90° OPENING OR B: 120° OPENING
54C
54B
54C
54B
