Assembly Guide
64

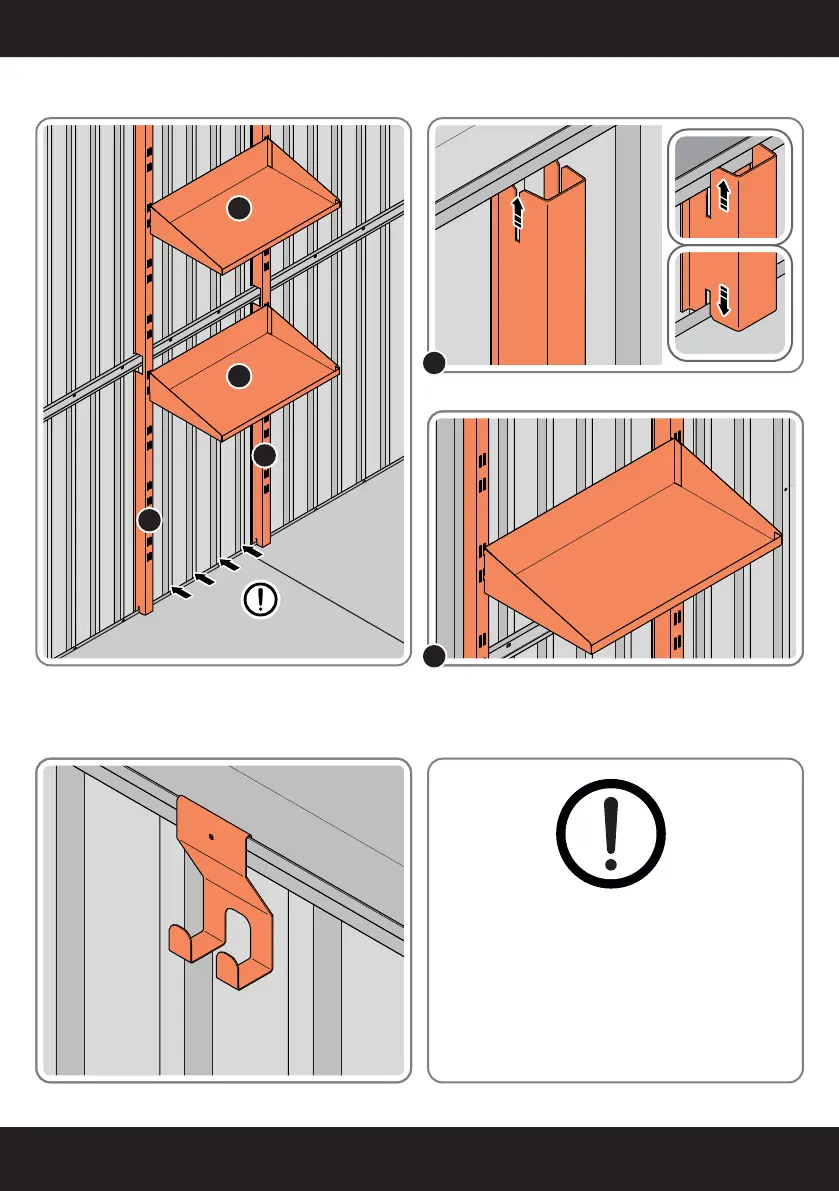

THE SHELF ASSEMBLY CAN BE LOCATED AS DESIRED, PLEASE DETERMINE THE
MOST SUITABLE LOCATION AND ASSEMBLE AS SHOWN IN FIG.57A & 57B.
ASSEMBLY STAGE 57
ASSEMBLY STAGE 58
LOCATE TOOL HANGERS 0205-39 WITHIN SHED AS DESIRED LOCATION.
HOOK EACH TOOL HANGER 0205-39 ONTO ROOF FRAME AT DESIRED LOCATION.
IMPORTANT
ADJUST ALL COMPONENTS FOR BEST POSSIBLE
FIT AND TIGHTEN ALL FASTENERS.
ONCE ALL FASTENERS HAVE BEEN CHECKED AND ARE
SECURE THE ASSEMBLY IS COMPLETE
WE RECOMMEND YOU ANCHOR YOUR SHED TO A SOLID
CONCRETE BASE, GUIDANCE CAN BE FOUND ON PAGE ‘i’
LOCATE EACH SHELF 0205-38-02 ONTO SHELF POST AS DESIRED.
PLEASE NOTE: THE SHELF SIMPLY HOOKS ONTO THE POST.
SLIDE SHELF POST UP INTO ROOF FRAME, ONCE THERE IS ENOUGH CLEARANCE
AT THE BOTTOM LOCATE SHELF POST OVER FLOOR FRAME AND LOWER.
57B
57A
x4 RIB GAP
LOCATE AND SECURE SHELF ASSEMBLY 0205-38.
57A
57A
57B
57B
