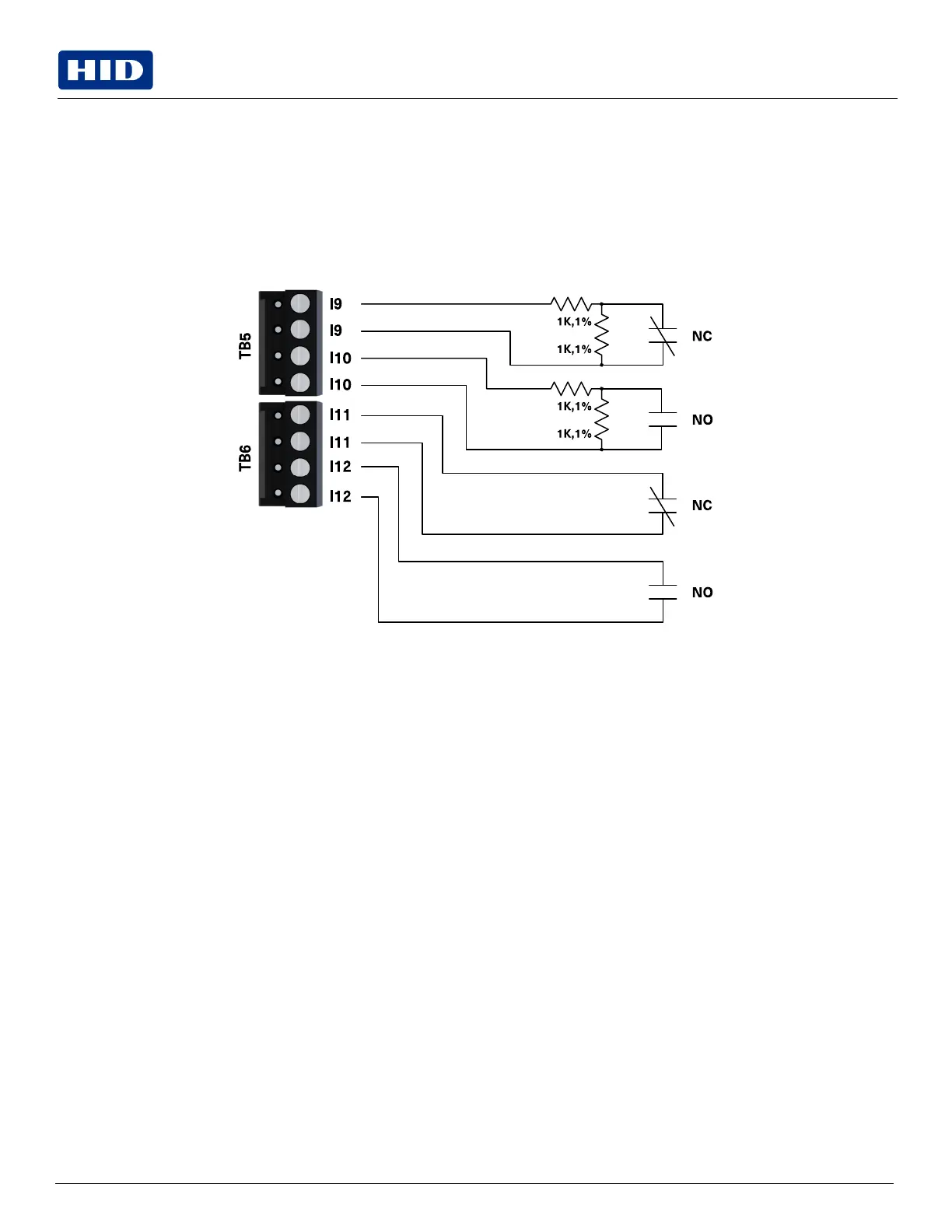

2.3 Alarm inputs wiring

Inputs 1 to 16 may be configured to use or not use End Of Line (EOL) resistors, and to use normally open or normally

closed contacts.

Input CT and input BA are used for monitoring cabinet tamper and power failure, respectively. These two inputs are for

contact closure monitoring only, and do not use EOL resistor(s).

Input configuration is set via host software.

PLT-05250, A.1 7 August 2022

Powering

Trusted Identities

HID®Mercury™ MR16in-S3 Processor

Installation and Specifications
