HIKVISION DS-2CD2432F-I

Installation Manual of Network Camera
47
3.5.2 Installation
Steps:
1. Drill the screw holes on the ceiling according to the drill template.
Screw Hole
Screw Hole
Screw Hole
Ceiling Mounting

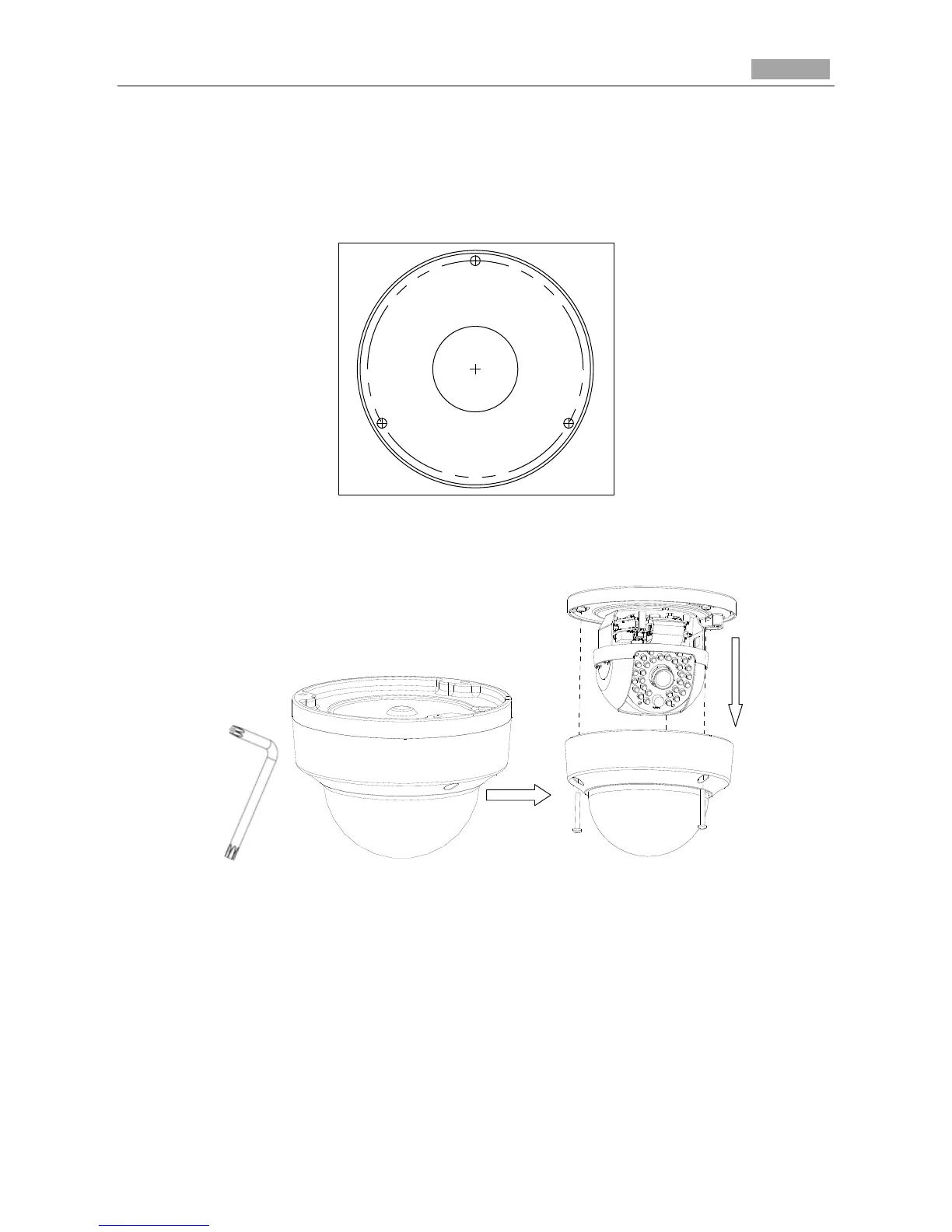

Figure 3-54 Drilling Template
2. Loosen the set screws with a hex key (supplied) to remove the bubble.
Figure 3-55 Remove the Bubble
3. Fix the mounting base on the ceiling with screws.
