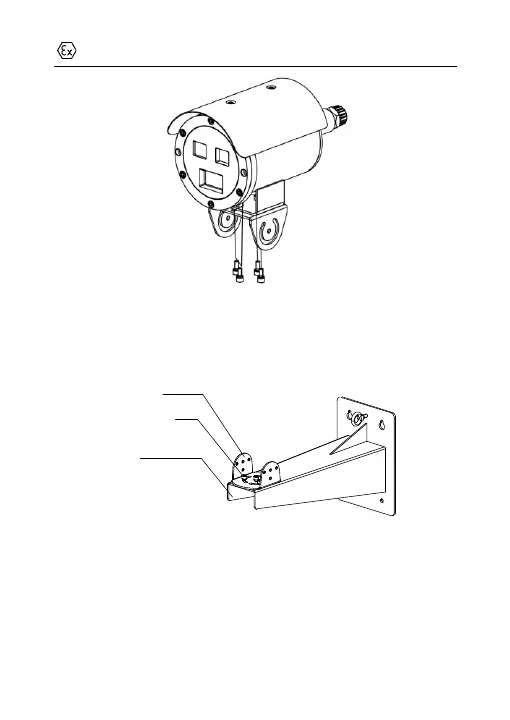

Figure 3-3 Install PT Joint Top with Camera
3. Install the PT joint bottom on the bracket with four M6 screws.
Screws
Bracket
PT Joint Bottom
Figure 3-4 Install the PT Joint Bottom
4. Align the screw holes on PT joint top with those on PT joint bottom,
and install the camera on the bracket.
