HIKVISION DS-7332HGHI-SH User Manual

User Manual of Digital Video Recorder
80
1) Click Edit .
2) In the message box, you can choose the day to which you want to set schedule.
3) To schedule an all-day recording, check the checkbox after the All Day item.

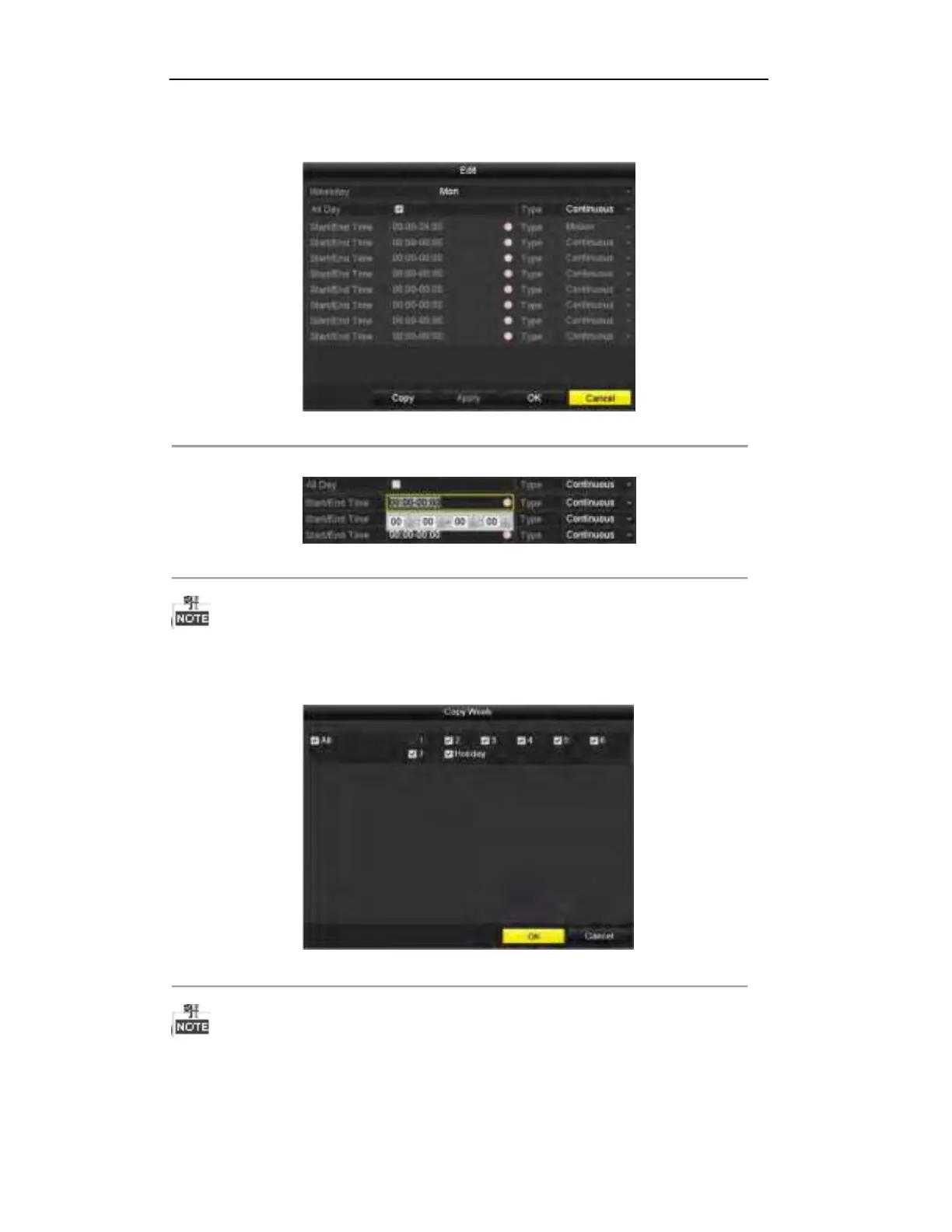

Figure 5. 7 Edit Schedule- All Day
4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Figure 5. 8 Edit Schedule- Set Time Period
Up to 8 periods can be configured for each day. And the time periods cannot be overlapped with each other.
Repeat the above steps 1)-4) to schedule recording for other days in the week. If the schedule can also be
set to other days, click
Copy .
Figure 5. 9 Copy Schedule to Other Days
The Holiday option is available when you enable holiday schedule in Holiday settings . See C hapter 5.7
Configuring Holiday Record.
5) Click OK to save setting and back to upper level menu.

HIKVISION DS-7332HGHI-SH Specifications

General

HDD capacity	18000 GB
HDD interface	Serial ATA
Number of HDDs supported	4
Product color	Black
Channels quantity	32 channels
Maximum frame rate	30 fps
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	32
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Power requirements	100-240V AC, 47 - 63Hz
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
