Hiniker 6000 - Tunnel Shield

Page 24
SERIES 6000 ROW CULTIVATOR
11/10
S
E
C
5
18
19
19
18
13
10
4
8
10
14
5
12
15
16
1
2
3
9
15
16
6
13
17
13
10
1
2
7
11
9 1/4

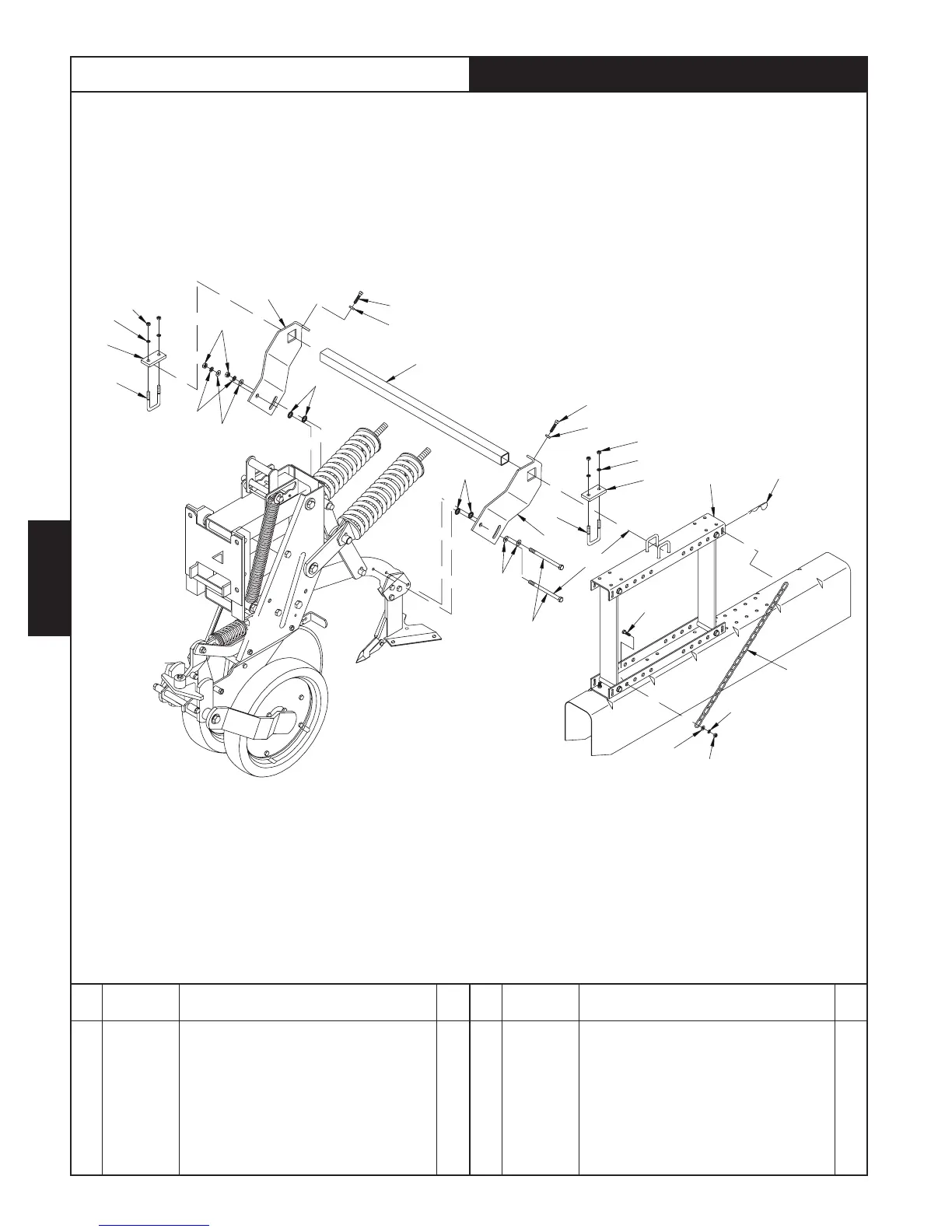

TUNNEL SHIELD
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
031-21035
034-05117
81004673
81004666
81004971
81004677
81004672
950-001-105
950-001-226
Square Head Set Screw 3/8-16 x 1 3/4 Cup
Hex Jam Nut 3/8-16
LH Mount Weldment
Tunnel Shield Assembly 48”
Mount Tube 30’ Rows
Chain
RH Mount Weldment
Hex Head Cap Screw 3/8-16 x 1 Gr. 5
Hex Head Cap Screw 1/2-13 x 5 1/2 Gr. 5
2
2
1
2
1
2
1
2
2
10
11
12
13
14
15
16
17
951-001-005
951-001-007
952-001-004
952-001-007
952-002-003
952-002-005
952-004-057
953-005-002
Hex Nut 3/8-16
Hex Nut 1/2-13
Lock Washer 1/2 Inch Med Split SAE
Lock Washer 3/8 Inch Med Split SAE
Flat Washer 3/8 Inch WRT
Flat Washer 1/2 Inch WRT
Lock Washer 1/2 Int - Ext
Hair Pin Cotter .178 x 3 9/16
2
2
2
2
2
4
4
2
DWG. NO. 3125
