Use appropriate saftey equipment When drilling
Always check for hidden pipes or wires
Ensure substrate material is of good quality
For videos on how to instalL go to: hiplok.com
IMPORTANT INFORMATION
TOOLS REQUIRED FOR FITTING
Electric drill
6mm masonary drill bit
10 mm allen key
Pencil
Impact driver or socket wrench
with extension
T30 driver bit
CHANGE HOLE ORIENTATION TO SUIT
Mark and drill 4 x holes to 90mm depth using 6mm masonary bit
1
Screw in masonary fixings using impact driver or
socket wrench with T30 bit
Fix rubber washer to ANKR & Screw inner body
until tight and ensure holes align
Inner body (Hardened steel) Tighten with 10mm Allen key
4 x Multifix screws. No Rawlplug required
3
4
Press on rubber cap
2
2 X FIXINGS IN STUDWALL
(NOT SOLD SECURE)
4 X FIXINGS IN MASONARY
(SOLD SECURE)

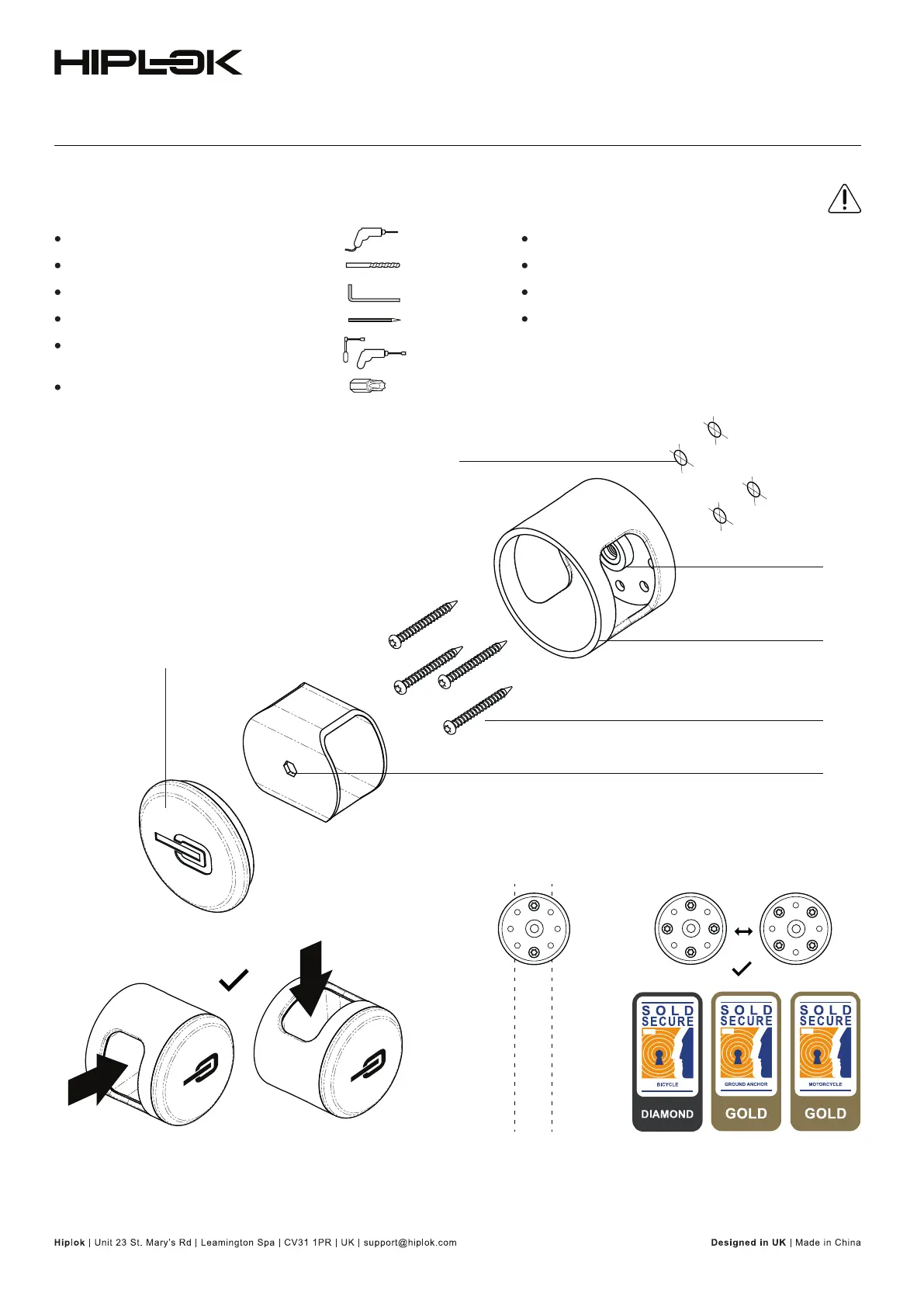

H IPLOK ANKR
PRODUCT GUIDE
Rubber washer
Outer body (Harned steel)
2020
2020
2020
