The Hisense MC086C is a mobile bracket designed to support smart boards, providing a portable and adjustable solution for various environments. This user manual outlines the assembly process and key features of the device, ensuring correct and safe use.

Function Description:

The MC086C mobile bracket serves as a freestanding support system for smart boards, allowing for easy relocation and positioning. It consists of a sturdy frame with wheels, a tray for accessories, and a hanging bracket system to securely mount the smart board. The design emphasizes mobility and stability, making it suitable for classrooms, conference rooms, or any setting where a flexible display solution is required. The bracket allows for the smart board to be mounted at a comfortable viewing height, and its mobile nature facilitates sharing the display across different locations or reorienting it as needed.

Important Technical Specifications:

Model: MC086C Mobile bracket
Compatibility: Suitable for 55-86 inch smart boards. This wide range of compatibility ensures that the bracket can accommodate a variety of smart board sizes, offering versatility to users.
Maximum Load: The support has a maximum load capacity of 100KG. This robust capacity indicates that the bracket is designed to safely hold heavy smart boards, ensuring stability and user safety.
Materials List:
- A- The left leg: 1 piece
- B- The right leg: 1 piece
- C- Hanging bracket: 1 piece
- D- The tray: 1 piece
- E- Wheel: 4 pieces
Other Accessories (unit: mm):
- Hexagon head screw (M8×25): 14 pieces. These screws are crucial for assembling the main structural components of the bracket, ensuring a secure fit.
- M12 gasket: 4 pieces. Gaskets are typically used to provide a seal or cushion between components, preventing loosening and distributing pressure.
- Tools for preparation: 1 piece of a wrench-like tool and 1 piece of a screwdriver-like tool are indicated, suggesting that basic assembly tools are provided or required.

Usage Features:

Mobility: Equipped with four wheels (E), the bracket can be easily moved. Each wheel features a brake mechanism, allowing users to lock the bracket in place for stability during use. The manual explicitly instructs users to adjust the wheel to the brake position before screwing it into the leg, highlighting the importance of this feature for safety.
Adjustable Mounting: The hanging bracket (C) offers multiple hole positions for mounting the smart board, allowing for adaptation to different screen sizes and desired heights. The manual provides a table of recommendations for hole positions based on smart board size:
- 55": Third and sixth holes
- 65"-70": Second and fifth holes
- 75"-86": First and third holes This adjustability ensures optimal viewing angles and ergonomic positioning for various users and applications.
Accessory Tray: The inclusion of a tray (D) provides a convenient surface for placing accessories such as pens, remote controls, or other presentation tools, keeping them within easy reach during use. The tray is assembled between the two columns, integrating seamlessly into the design.
Secure Installation: The assembly process involves multiple steps to ensure the smart board is securely attached. This includes locking the wall hanger bracket to the legs, assembling the tray, and finally hanging the smart board onto the bracket. Safety screws are used to further secure the wall hanging bar, preventing accidental dislodgement.
Adaptability for Built-in Hangers: The manual addresses a specific scenario where the smart board's built-in hangers might not align with the foot rack. In such cases, the bracket provides a solution by allowing the smart board's hangers to be matched with the bracket's wall hangers. This involves locking the wall hanger panel onto the wall hanger bracket, ensuring the unlocked floating side of the wall hanger is front, and then hanging the whole machine and locking the safety bolt. This feature demonstrates the bracket's flexibility in accommodating different smart board designs.

Maintenance Features:

While the manual does not explicitly detail ongoing maintenance, the design implies several aspects:

Durable Construction: The use of metal components for the legs, hanging bracket, and other structural parts suggests a robust and durable construction, minimizing the need for frequent repairs.
Secure Fasteners: The reliance on hexagon head screws and gaskets for assembly indicates a design that aims for long-term stability and resistance to loosening. Regular checks of these fasteners could be a simple maintenance step to ensure continued safety.
Brake Mechanism: The wheels with brake mechanisms are critical for safety. Ensuring these brakes are functional and engaged when the bracket is stationary is a key operational and safety practice.
Professional Installation for Heavy Loads: The manual strongly advises that "At least 2 professionals are required to complete this step" when hanging the assembled whole machine onto the bracket, especially for larger and heavier smart boards. This highlights the importance of proper handling during installation to prevent damage to the device or injury, which in turn contributes to the longevity of the product.
Pre-installation Check: The initial instruction to "read this manual carefully before installation" is a fundamental maintenance practice, as correct assembly prevents future issues and ensures the device operates as intended.

In summary, the Hisense MC086C mobile bracket is a well-designed, versatile, and robust solution for mounting and mobilizing smart boards, offering ease of use, secure installation, and adaptability for various smart board models.

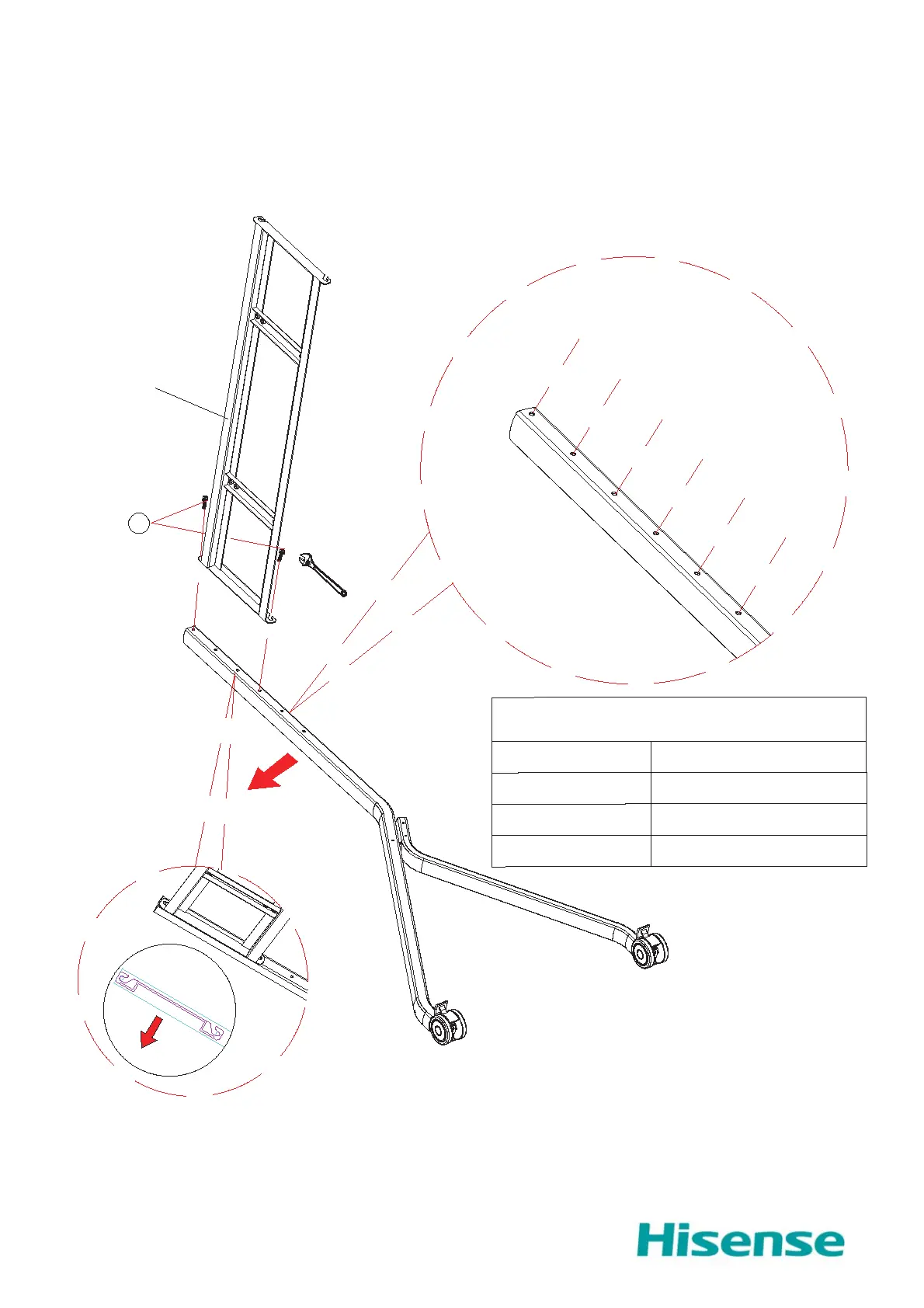

Hisense MC086C - Wall Hanger Bracket Attachment
