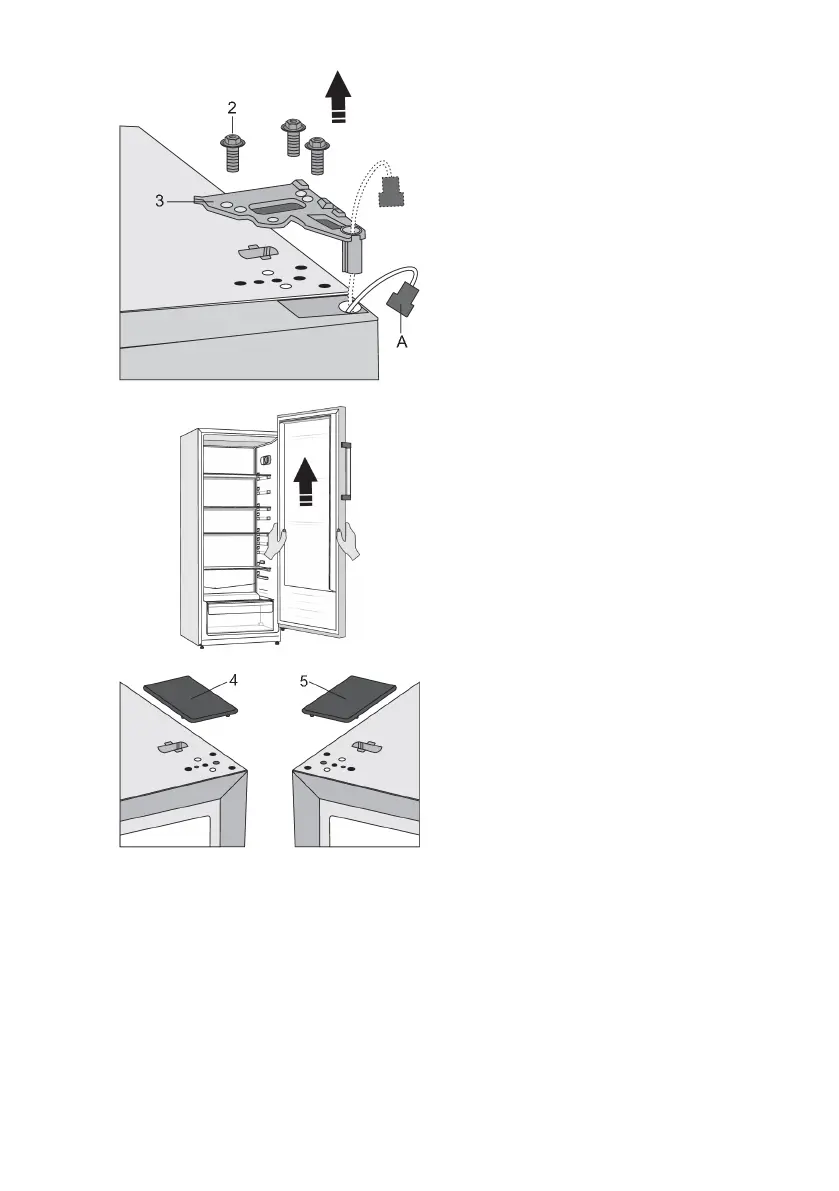

3. Undo the screws (2) and remove the hinge
(3). Run the connector (A) through the hole
in the hinge. Hold the door while doing this
to prevent it from falling.
4. Remove the door from the bottom hinge
by carefully lifting the door straight up. Lay
the door onto a smooth surface.
5. Take the (right) cap/cover (4) from the bag
and place it on the spot from which the top
hinge was removed. Remove and save the
cap/cover from the other side (5) to which
the hinge will be relocated.
