Replacement of the hinged handle (only with some models)
Note: If your model has a hinged handle, then move it to the opposite side by following the instructions
below:
INFORMATION!
To replace a hinged handle, the door must be open.

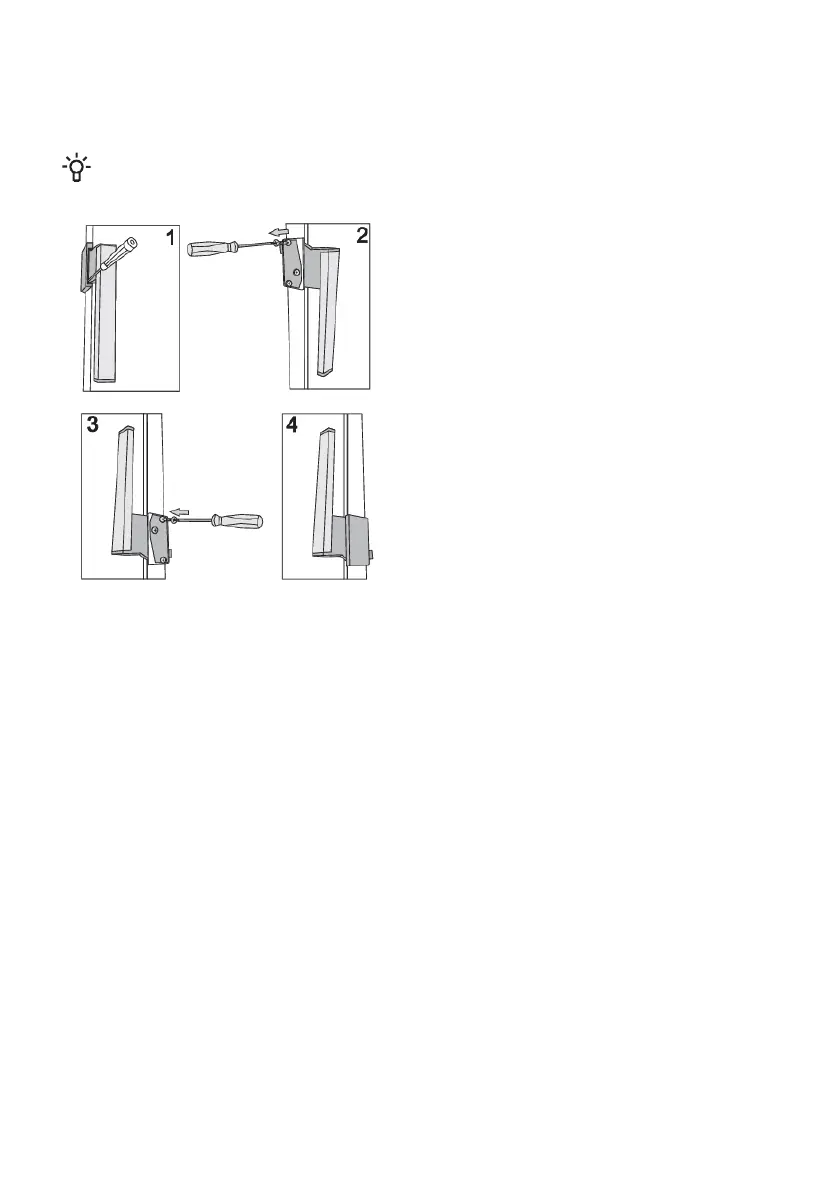

1. Push a small screwdriver into the handle
slot as indicated in Figure 1 and remove
the cover.
2. Remove the caps on the opposite side of
the door.
3. Undo the three screws, making sure not to
disassemble the handle.
4. Rotate the handle by 180° as indicated in
Figure 3 and attach it to the opposite side
of the door.
5. Replace the cover and the caps.
