CHASSIS
- 225-

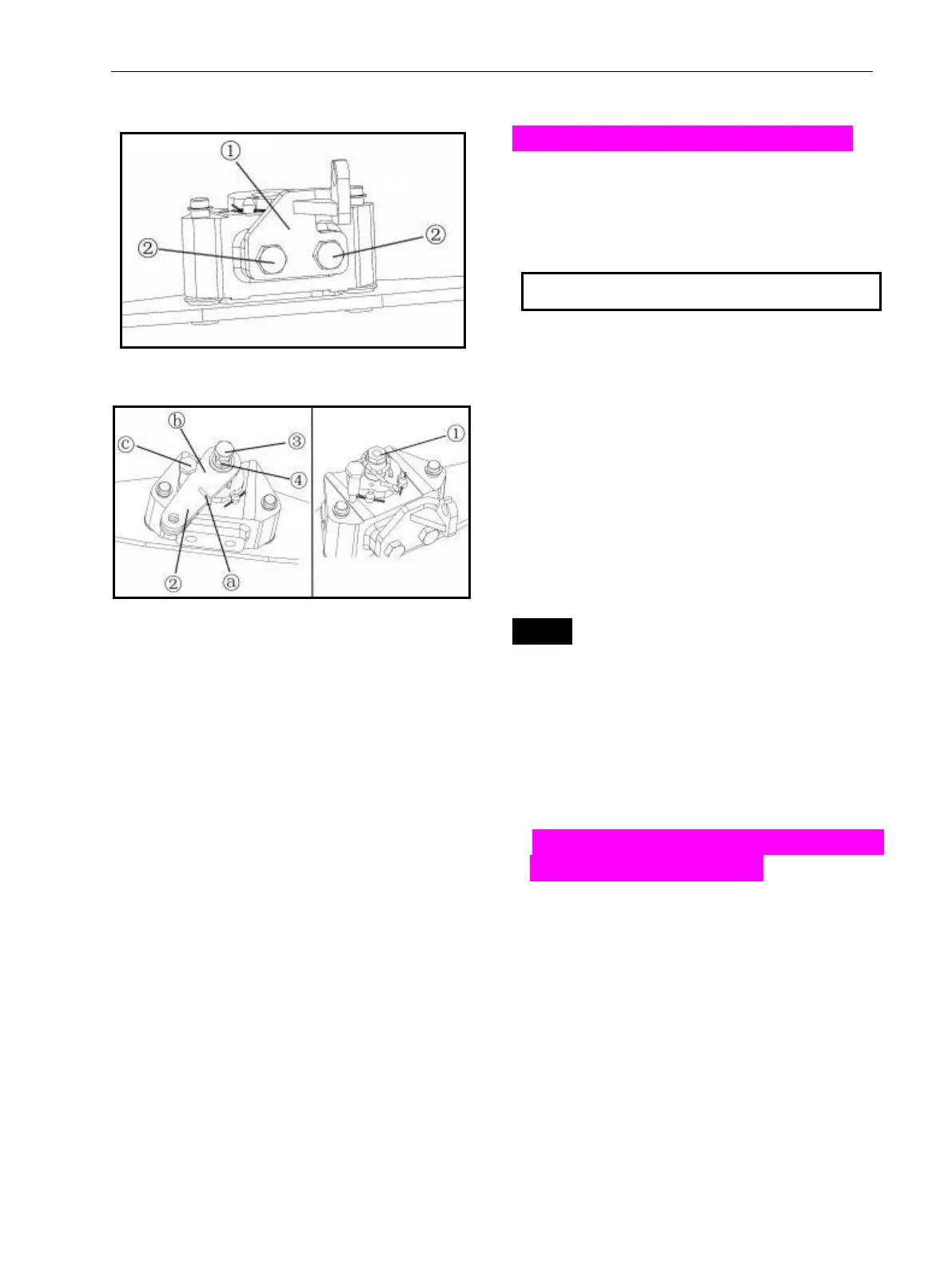

DISASSEMBLING THE PARKING BRAKE
1. Install:
• parking brake case ①
• parking brake case bolts ②
22Nm (2.2 m · kg,16 ft · lb)
2. Install:
• parking brake arm shaft ①
• parking brake arm ②
• set bolt ③
• parking brake arm nut ④
NOTE:
Apply lithium-soap-based grease to the
parking brake arm shaft and set bolt.
a. Turn the parking brake arm shaft approx-
imately 60° clockwise.
b. 安装驻车制动臂停车制动臂轴使驻车制动臂标
记ⓑ与驻车回位簧标记ⓐ对齐.
c. Turn the parking brake arm until it contacts
the pin ⓒ.
d. Finger tighten the set bolt.
e. Tighten the parking brake arm nut.
